Product Highlights
A base N9916A combination analyzer includes a cable and antenna analyzer. Option 210 adds:
-

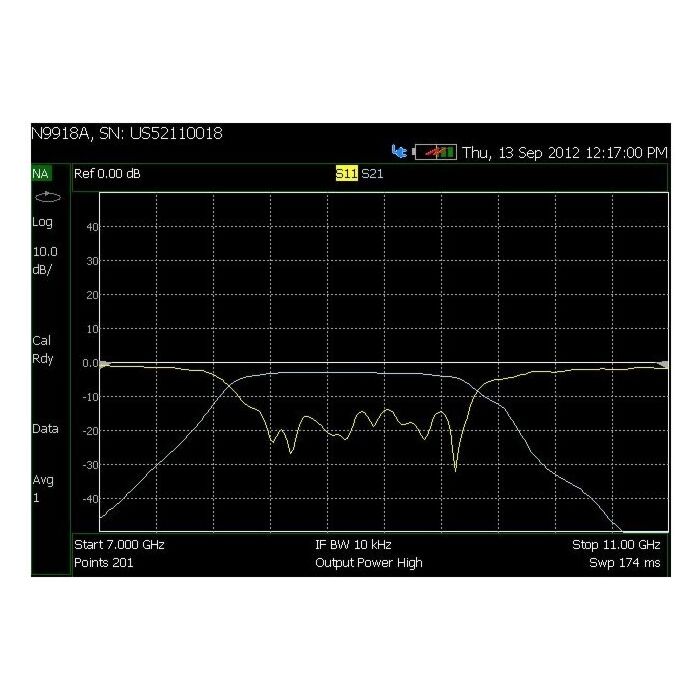

A vector network analyzer mode with transmission/reflection or S21 and S11 measurements, both magnitude and phase. Available calibrations are CalReady, one-port OSL, response and enhanced response.
-
Insertion loss measurement to the base cable and antenna analyzer or CAT mode.
-
2-port transmission measurement to the vector voltmeter mode, available as Option 308.
-
Tracking capability to the spectrum analyzer independent source, available as Option 233 (source and spectrum analyzer set to sweep a frequency range, in sync)
This option can be added as a product upgrade.
-
Vector network analyzer
-
Transmission/reflection (S21, S11), magnitude and phase
-
30 kHz to 14 GHz
-
Directivity > 42 dB, dynamic range 100 dB to 9 GHz, 90 dB to 14 GHz
-
Flat output power (± 1 dB) across whole frequency range, adjustable in 1 dB steps
