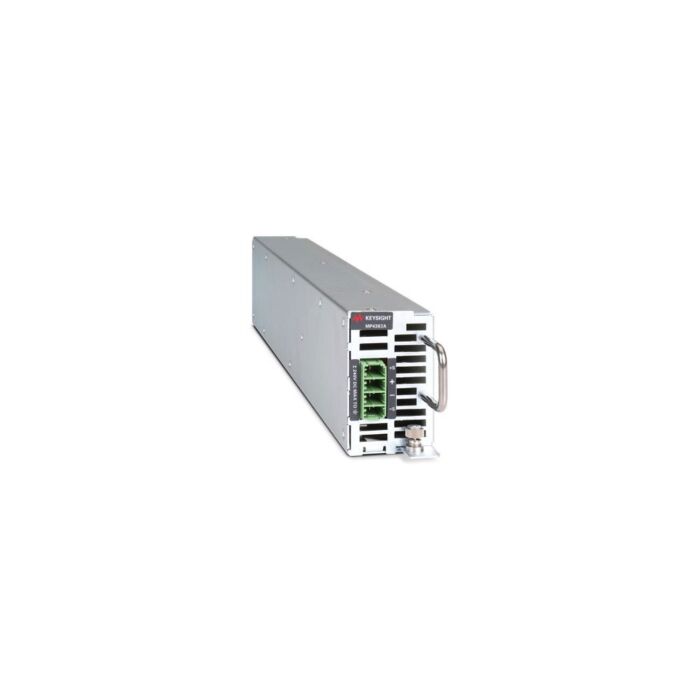

Keysight MP4362A Solar Array Simulator Module, 0-130V, 0-8A

Order # MP4362A | Mfg # MP4362A
$6,594.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

The Keysight MP4362A is a 1000 W solar array simulator DC power module that simulates the output characteristics of a solar array. The MP4361A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (e.g., temperature, age, eclipse, spin, etc.).

Features

Output Ratings

  • Max. Power: 1000 W
  • Max. Voltage: 130 V
  • Max. Current: 8 A

Programming Accuracy at 23 degree C ±5 degree C

  • Voltage (Fixed Mode): 0.075% + 25 mV
  • Current (Fixed Mode): 0.2% + 10 mA

Output Voltage Ripple and Noise

  • Voltage noise peak to peak: 500 mV
  • Voltage noise RMS: 50 mV

Output Current Ripple and Noise (Simulator/Table mode)

  • Current noise peak to peak: 48 mA
  • Current noise RMS: 6 mA
