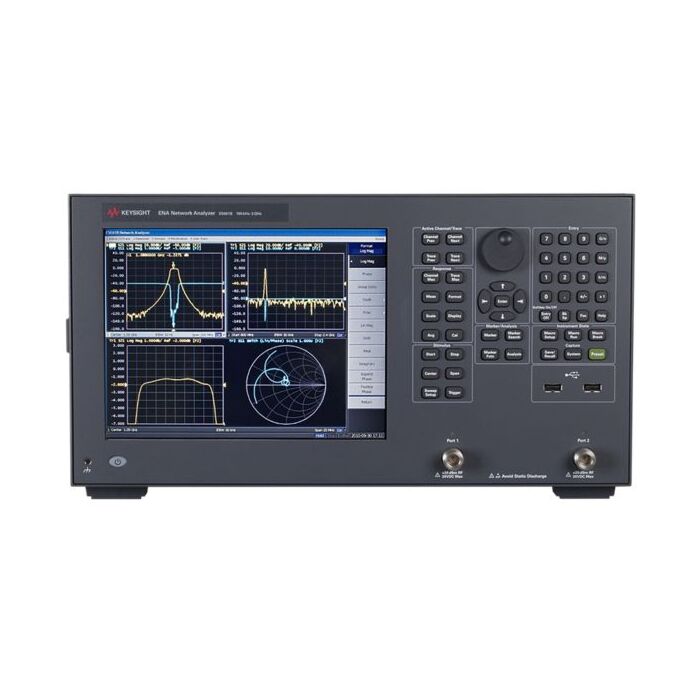

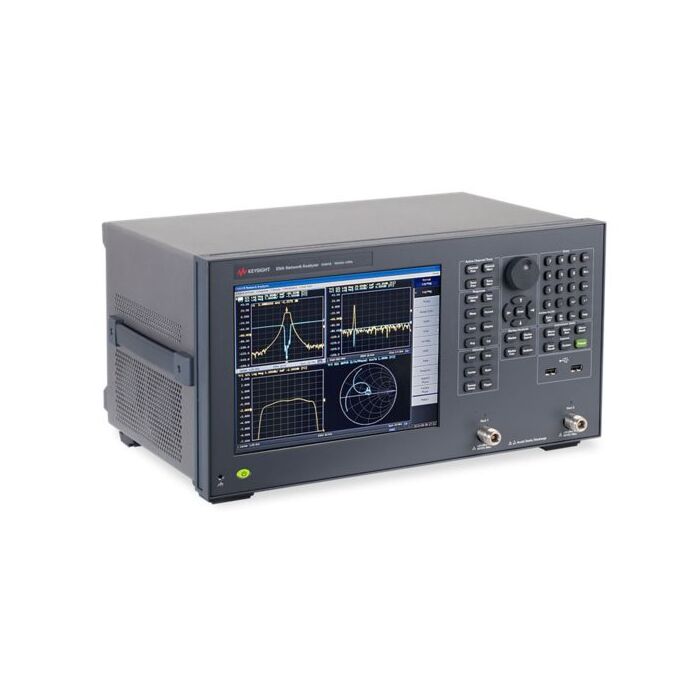

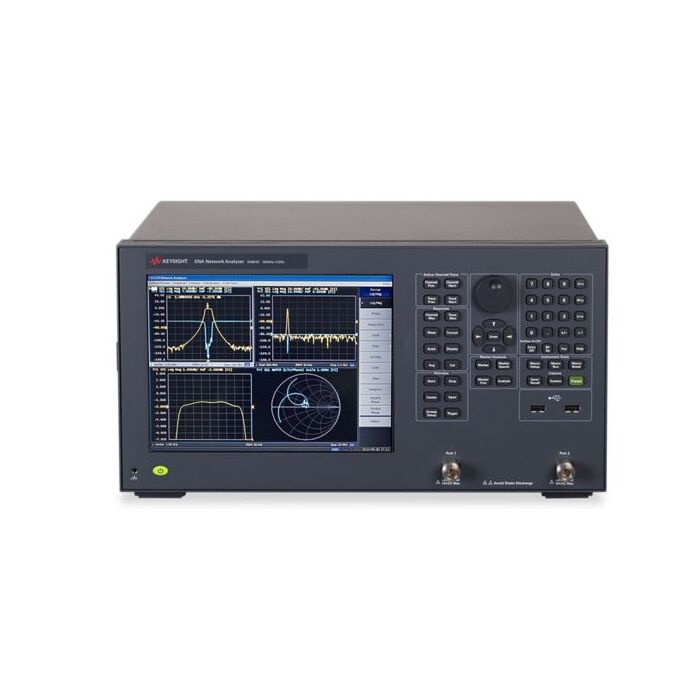

Keysight E5061B-3L3 LF-RF network analyzer with DC bias source, 5 Hz to 500 MHz

Order # E5061B-3L3 | Mfg # E5061B-3L3
$37,971.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

The Keysight E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B is the ideal solution for applications in industries such as wireless communications, aerospace and defense, computer, medical, automotive, CATV, plus many more.

  • 5 Hz to 500 MHz
  • Number of Built-In Ports: 2
  • Maximum Frequency: 50 MHz
  • Number of Internal Sources: 1
  • VNA Series: ENA
  • VNA Type: Benchtop
  • Combine network analysis and impedance analysis to customize your application in a single instrument - 3L3
  • Address a broad range of applications with the LF-RF option (Option 3L3): 5 Hz to 3 GHz, 2-port, 50 ohm, S-parameter test set, gain-phase test port, built-in DC bias source

Each Unit Includes

  • Network Analyzer
  • KeysightCare Technical Support - 3 years
  • Return to Keysight Warranty - 3 years
  • Transmission/Reflection test set, 100 kHz to 1.5 GHz, 50 ohm system impedance
  • Standard Data Storage
  • Not required GPIB
  • Not required Handler IO

Technical Resources

Keysight E5061B-3L3 LF-RF network analyzer with DC bias source, 5 Hz to 500 MHz Accessories

checkbox-empty
Select
Keysight Technologies E5061B-721 Add GPIB
checkbox-empty
Select
Keysight Technologies E5061B-720 Add 50 ohm resistor set
checkbox-empty
Select
Keysight Technologies E5061B-810 Add keyboard
checkbox-empty
Select
Keysight Technologies E5061B-820 Add mouse
