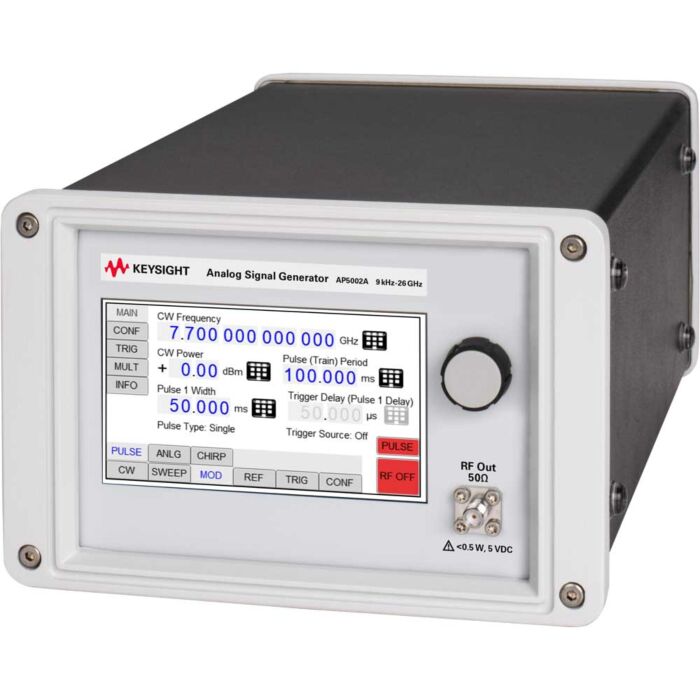

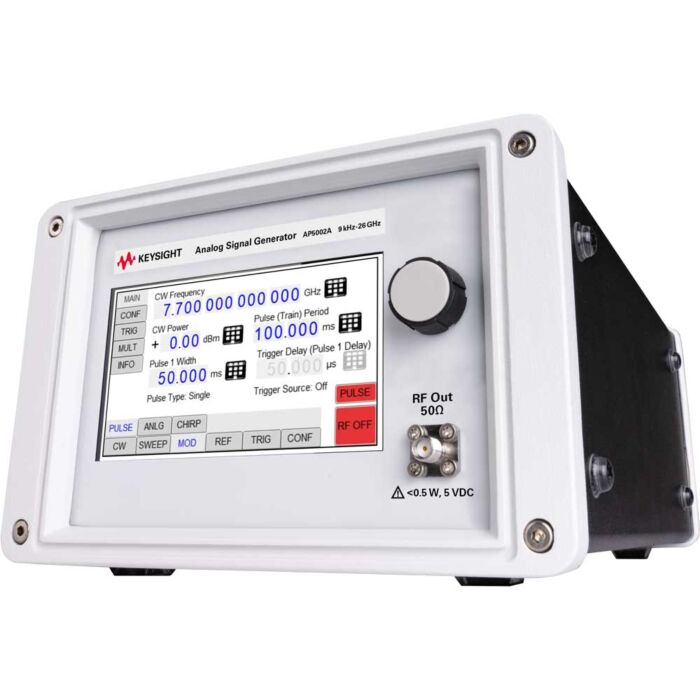

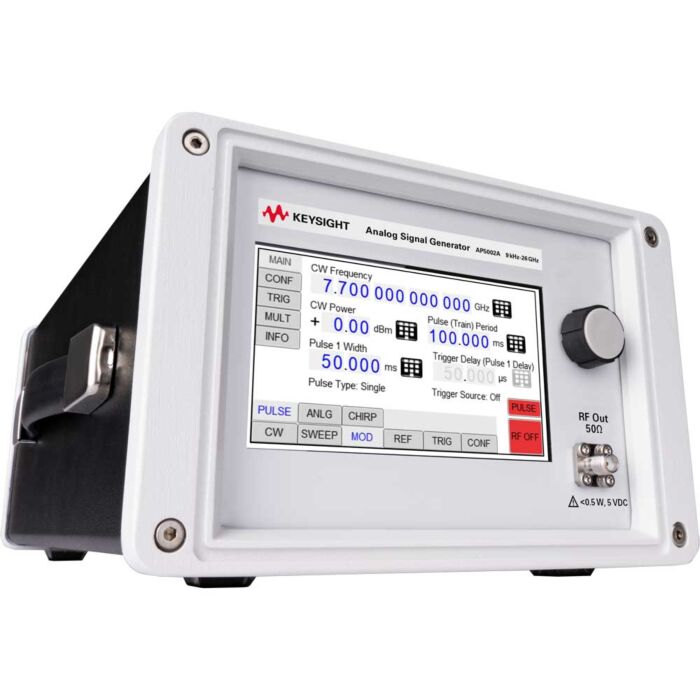

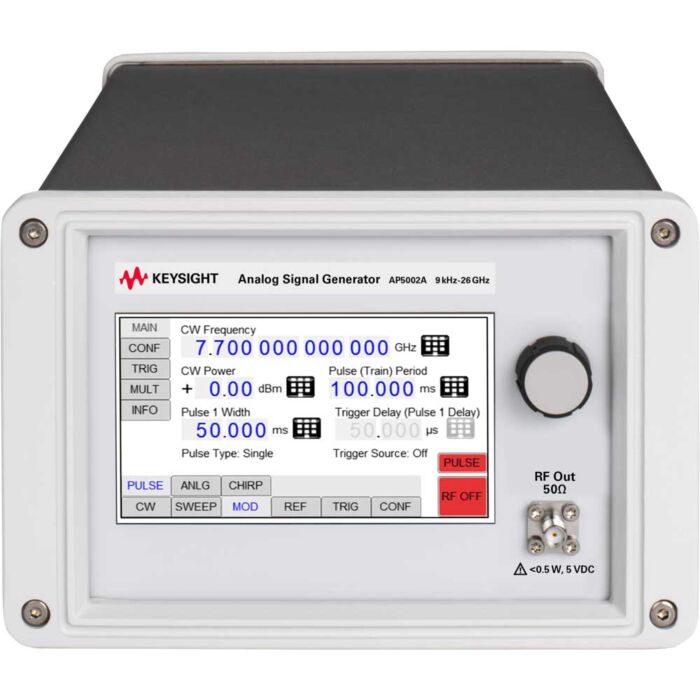

Keysight AP5002A Microwave Analog Signal Generator, up to 26 GHz

Order # AP5002A | Mfg # AP5002A
$18,581.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

The AP5002A analog signal generator boasts incredible phase noise, wide output power range, fast switching speed, and extensive modulation capabilities all in a compact device. Use onsite or on the go wherever your electronic and wireless modules and systems testing takes you. Easily configure the signal generator using a touch-screen graphic user interface (GUI) or desktop software.

  • Characterize devices thoroughly with up to +17 dBm output power and -130 dBc/Hz phase noise
  • Accelerate testing with 300 µs switching speed
  • Generate a stabilized low-phase noise signal with micro-Hz resolution with an oven-controlled crystal oscillator (OCXO)
  • Enhance testing with sweep, trigger functions, and user-programmable external reference frequency
  • Upgrade your box to a higher frequency or add more capabilities via a license key
  • Frequency: 26 GHz
  • Output Power @1 GHz: +23 dBm
  • Frequency Switching (Typical): 200 µs
  • Harmonics @1 GHz: -30 dBc: -130 dBc/Hz
  • Phase Noise @1 GHz (20 kHz offset)
  • Type: Analog
