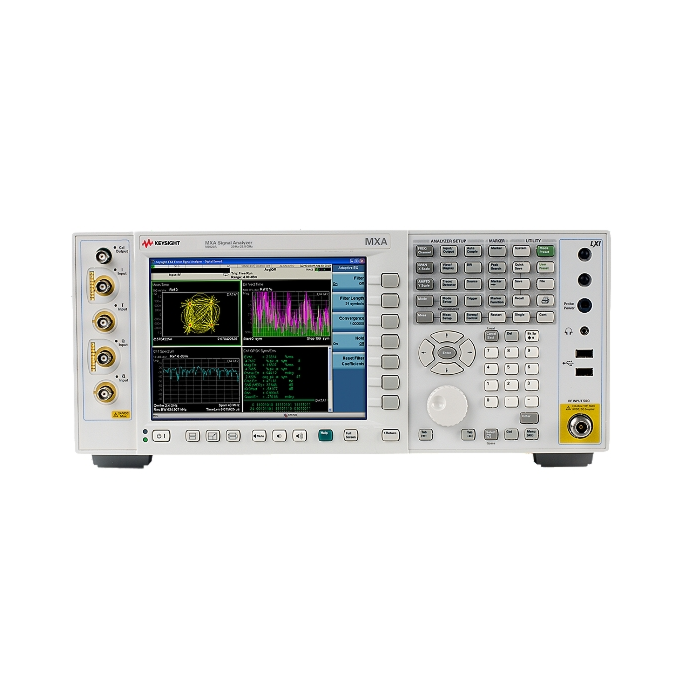

Used Keysight / Agilent N9020A-526 MXA Signal Analyzer, 10Hz to 26.5GHz
MXA Signal Analyzer 10Hz to 26.5GHz

Order #: N9020A-526-USED

Mfg #: N9020A-526

Questions about availability or need help? Contact Us:

(800) 633-0561
$25,999.00

Used Keysight / Agilent N9020A-526 MXA Signal Analyzer, 10Hz to 26.5GHz

MXA Signal Analyzer 10Hz to 26.5GHz

Order #: N9020A-526-USED

Mfg #: N9020A-526

$25,999.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability

Product Highlights

The Keysight (formerly Agilent) MXA signal analyzer N9020A-526 drives signal and spectrum analysis to the next generation offering the highest performance in a midrange analyzer. Innovative breakthroughs enable the N9020A-526 MXA signal analyzer to achieve the industry's fastest signal and spectrum analysis, eliminating the compromise between speed and performance.

The N9020A-526 is a power packed tool that brings a variety of features to the fore - 30 to 300% faster than all other spectrum and signal analyzers - 25 MHz analysis bandwidth - 15 dBm TOI, -151 dBm/Hz DANL (-154 dBm/Hz typical), 0.3 dB absolute amplitude accuracy and 73 dB W-CDMA ACLR dynamic range (78 dB typ. with noise correction on) - Spectrum analysis, mobile WiMAX, W-CDMA, HSDPA/HSUPA and phase noise measurement applications - 89601A VSA software runs inside the MXA.

  • 10 Hz to 3.6, 8.4, 13.6, or 26.5 GHz
  • Internal preamplifier options up to 26.5 GHz
  • 25 MHz (standard) or 40 MHz (optional) analysis bandwidth
  • 30 to 300% faster than all other spectrum and signal analyzers
  • 4 ms marker peak search
  • 75 ms measurement/mode switching speed
  • 0.23 db absolute amplitude accuracy
  • +20 dBm third order intercept (TOI)
  • -166 dBm displayed average noise level (DANL) with preamplifier
  • MXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose
  • Modern connectivity: LXI-C certified, USB, 100based-T LAN, GPIB
  • Programming remote language compatibility with PSA, 8566/68, and 856x
  • Common X-Series user interface / Open Windows operating system
