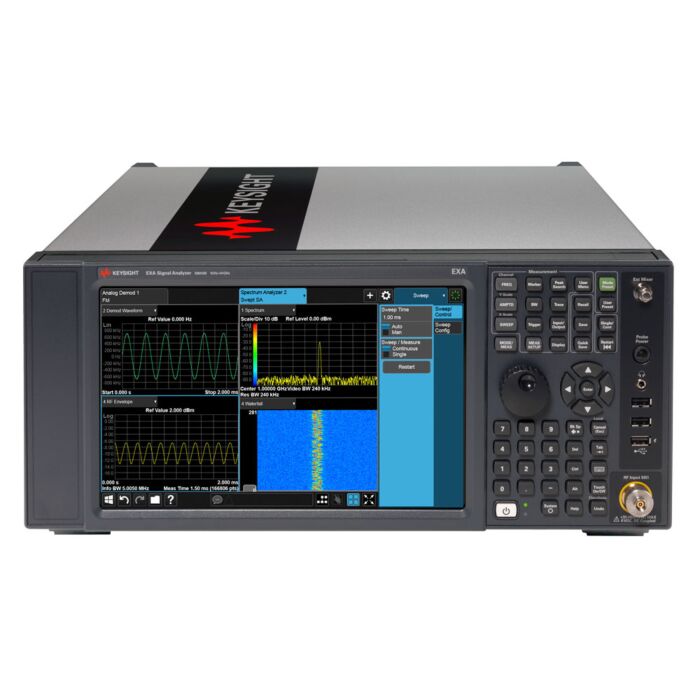

Used Keysight / Agilent N9010B-526 EXA Signal Spectrum Analyzer, 10Hz to 26.5GHz

Order # N9010B-526-USED | Mfg # N9010B-526-USED
$39,999.00
Also Available:
Rental

Request a Used Instrument Quote









Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Fast, Flexible General-Purpose Signal Analysis up to 44 GHz

When enhancing a product and improving test throughput, your general-purpose signal analyzer should be ready for a wide range of challenging requirements. The fast, flexible EXA addresses diverse needs with a solid mix of speed and performance and the versatility of PathWave X-Series measurement applications.

  • See more with a wide frequency range of 10 Hz to 44 GHz with up to 40 MHz analysis bandwidth
  • Save test time in your spurious response measurements with the fast sweep capability
  • Get the most cost-effective analysis for millimeter-wave measurements
  • Measure small signals in the presence of large ones with best-in-class level accuracy, displayed average noise level (DANL), and third order intermodulation (TOI) distortion
  • Perform power measurements quickly at discrete frequency points with list-sweep mode
  • Simplify testing with PathWave X-Series measurement applications

Technical Resources

Keysight N9010B Datasheet

Specifications

Bandwidth Options: 10 standard, 25, 40 MHz
DANL @1 GHz: -170 dBm
Frequency: 10 Hz to 44 GHz
Frequency Options: 3.6, 7, 13.6, 26.5, 32, 44 GHz, Mixers to 1.1 THz
Maximum Analysis Bandwidth: 40 MHz
Maximum Real-Time Bandwidth: n/a
Overall Amplitude Accuracy: ±0.27 dB
Performance Level: ◆ ◆ ◆◇ ◇ ◇
Phase Noise @1 GHz (10 kHz offset): -109 dBc/Hz
TOI @1 GHz (3rd Order Intercept): +18 dBm
