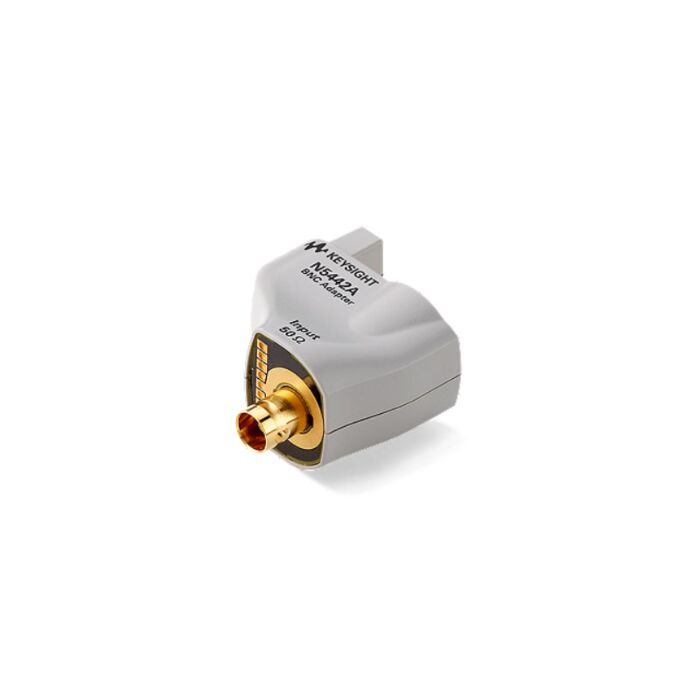

Used Keysight / Agilent N5442A Precision BNC Adapter

Product Highlights

Use your active probe (InfiniiMax I, II, or 1156A-58A) or 50 Ω BNC cables with the Infiniium 90000 X-series oscilloscope.

• Input : 50 Ω AutoProbe I
• Output : 50 Ω AutoProbe II

The N5442A Precision BNC 50 Ω adapter lets you use active probes (or passive probes, or general purpose 50 Ω BNC cables) designed for the AutoProbe I interface with Infiniium oscilloscopes that have the AutoProbe II interface.

Infiniium oscilloscopes that have the AutoProbe II interface include: UXR-Series (models from 13 GHz to 33 GHz), Z-Series, V-Series, 90000 Q-Series, and 90000 X-Series.

Active probes designed for the AutoProbe I interface include:

• N2830/1/2A InfiniiMax III+ Probe Amplifiers
• N2750/1/2A InfiniiMode Differential Active Probes
• N2818/9A Active Differential Probes
• N2792A Differential Probe
• N2793A Differential Active Probe
• 1168/9B InfiniiMax II Probe Amplifiers
• 1130/1/2/4/B InfiniiMax Active Probes
• N7024A 6 GHz Power Rail Probe
• N2795A/N2796A Single-Ended Active Probes
• N2797A Extreme Temperature Single-Ended Active Probes
• DP0001A High Voltage Differential Probe
• N2804/5A High-Voltage Differential Probes
