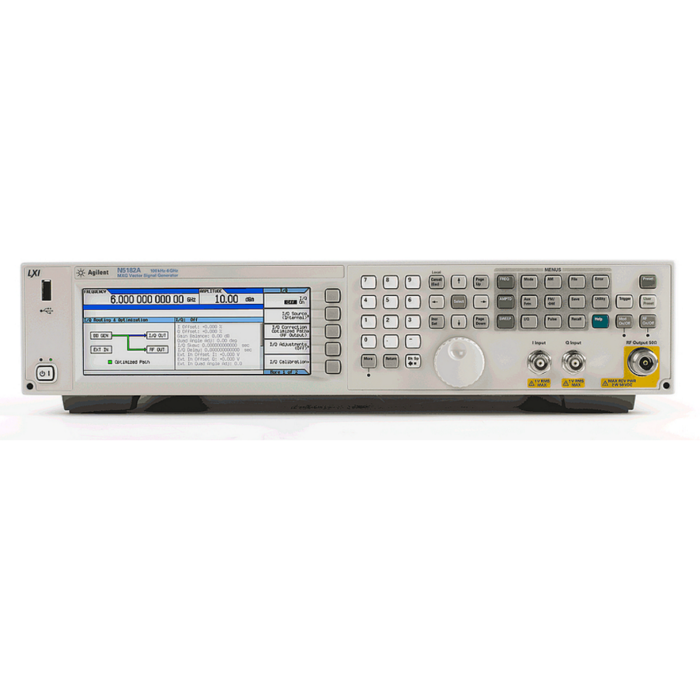

Used Keysight / Agilent N5182A MXG Vector Signal Generator, 100kHz to 6GHz

Product Highlights

Signal characteristics

• 100 kHz to 3 or 6 GHz
• >+23 dBm up to 3 GHz using a highly-reliable, fast-switching electronic attenuator
• W-CDMA dynamic range: ≤-73 dBc at +5 dBm output power
• ≤900 μs simultaneous frequency, amplitude, and waveform switching in list mode

Modulation and sweep

• AM, FM, øM, and pulse
• ASK, FSK, MSK, PSK, QAM
• Digital step and list sweep with simultaneous switching of frequency, power, and waveform

Baseband generation and signal creation

• 100 MHz internal I/Q baseband generator with real-time equalization for excellent EVM performance
• Up to 64 MSa playback memory and 800 MSa storage
• Create reference signals: LTE, HSPA+, WiMAX™, WLAN, DVB-H, DAB, MATLAB
• Multi-channel Baseband generation, Digital I/O, MIMO Fading and RF to RF fading with N5106A PXB baseband generator and channel emulator

Automation and communication interface

• 100BaseT LAN, LXI class-B, USB 2.0, and GPIB
• SCPI and IVI-COM drivers
• Backwards compatible with all ESG, PSG, 8648 signal generators, and other vendors´ signal generators

Designed for the most demanding manufacturing lines

Featuring fast frequency, amplitude, and waveform switching, high power with an electronic attenuator, and high reliability – all in two rack units (2RU) – N5182A MXG vector signal generator is optimized for manufacturing cellular communications and wireless connectivity components. The MXG signal generator vector provides better value for your investment by increasing throughput, improving test yield, maximizing uptime, and saving rack space. With scalable RF and baseband performance, the MXG signal generator is easily configured to meet your specific test needs.
