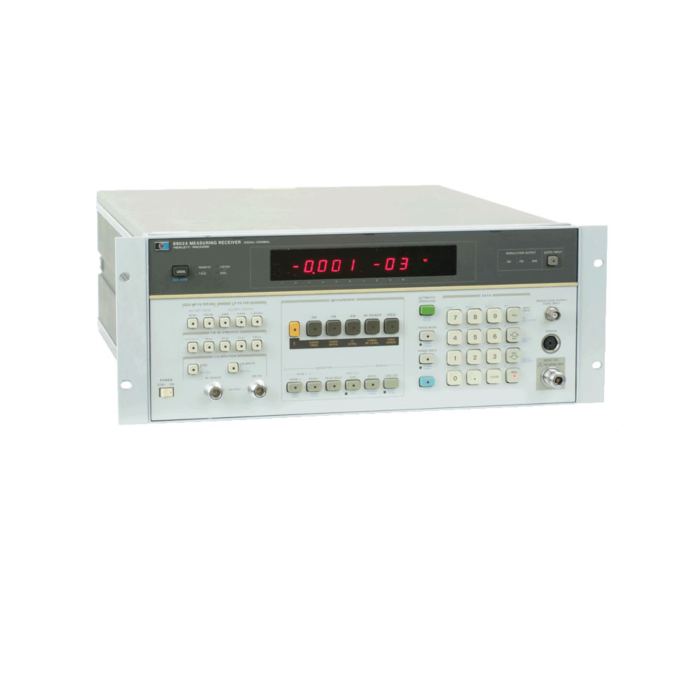

Keysight / Agilent 8902A Used for Sale

Measuring Receiver,150kHz to 1.3GHz

Order #: 8902A-USED

Mfg #: 8902A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,999.00

Transcat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability: Call for Availability

Ships Free Over $100

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Overview

Product Highlights

The Keysight 8902A measuring receiver delivers the accuracy and resolution of a high performance power meter at frequencies from 150 kHz to 1.3 GHz (50 MHz to 26.5 GHz with the Keysight 11793A microwave converter) and levels from +30 dBm to -127 dBm. It accurately measures AM, FM and M, including residuals and incidentals, with a single keystroke. The Keysight 8902A measuring receiver, with the Keysight 11793A, counts RF signals to 26.5 GHz with 10 Hz resolution and excellent long-term frequency stability. The 8902A measuring receiver with Option 050 offers increased power measurement accuracy. This option specifies Tuned RF Level on the 8902A measuring receiver to an accuracy of ±(0.015 dB + 0.005 dB/10 dB step).

RF power: digital power meter accuracy
Tuned RF level: 0 to -127 dBm dynamic range
Carrier noise: AM and phase noise measurements to -140 dBc/Hz
AM and FM: 1% accuracy; Phi-M:3% accuracy
RF frequency: 1 Hz resolution
Audio: level, frequency, and distortion
