Keysight / Agilent 85134F for Rent

Product Highlights

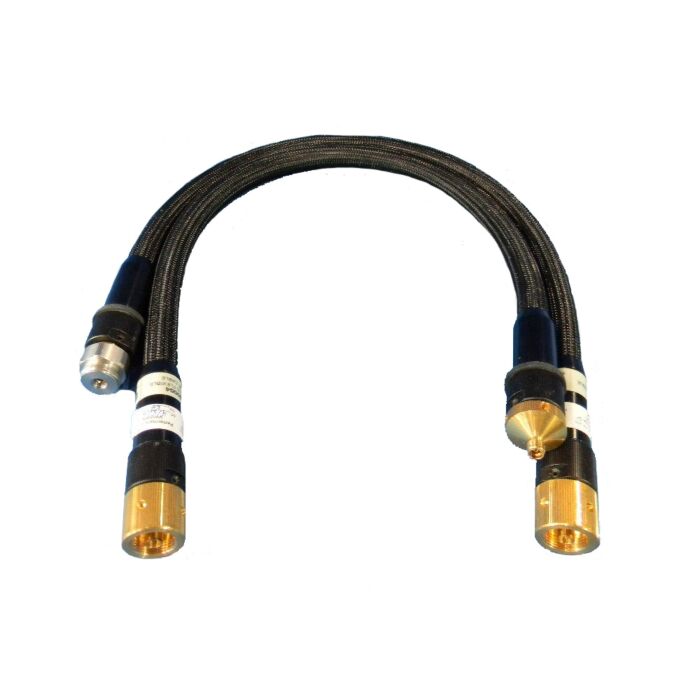

• The Agilent 85134F is a 62.9 cm (24.75 in) long flexible cable set composed of a 2.4 mm female to PSC-3.5 mm female connector and a 2.4 mm female to 3.5 mm male connector.
• Cable frequency range is dc to 26.5 GHz with a return loss greater than or equal to 16 dB.
• Insertion loss is 0.31 * sqrt (f) + 0.2, where f is frequency in GHz, for the test port connector and 1.8 dB at maximum frequency for the device connector.
• Phase stability of semi-rigid/flexible cables is specified with a 90 degree bend using a 4 to 3 inch radius.
• Stability of the Agilent 85134F is less than 0.12 dB and phase is 0.13*f+ 0.5°, where f is frequency in GHz.
