Used Keysight / Agilent 66104A DC Power Module, 60V/2.5A/150W

Product Highlights

• Guide to Agilent Power Supplies

  Application Notes:

  - Create Complex Sequences with a DC Power Supply

  - Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit

  - Achieve Cleaner Power Signals by Minimizing Common Sources of Noise

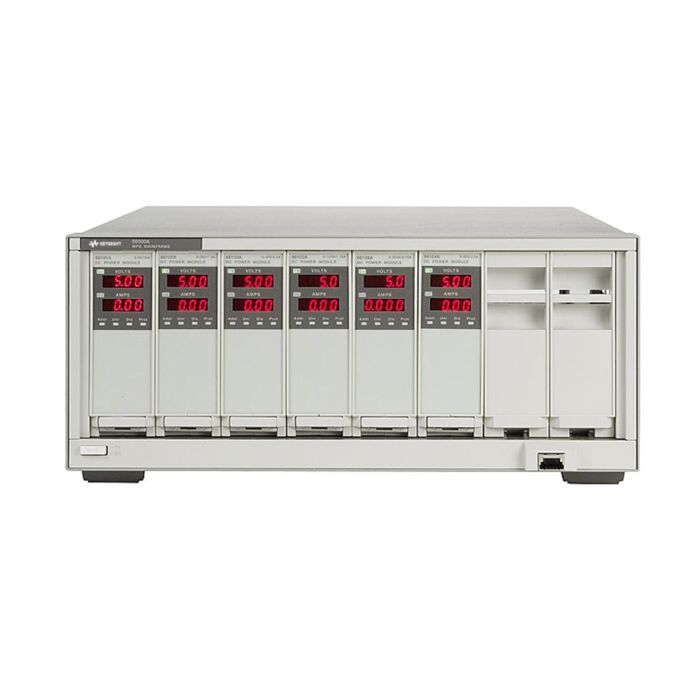

• Modular system permits up to 8 outputs of 150 W per output in 4 U of rack space
• Reconfigure fast with easily swappable modules
• Fast, low-noise outputs
• LIST mode and advance triggering system
• Built-in measurements and advanced programmable features
• Protection features to ensure DUT safety
• Output Ratings at 40°C
• Output voltage: 0 to 60 V
• Output current: 0 to 2.5 A
• Maximum power: 150 W
• Programming Accuracy at 25°C ±5°C
• Voltage 0.03% + 27 mV
• Current 0.03% + 1.2 mA
• Ripple & Noise (20 Hz to 20 MHz)
• Constant Voltage rms: 9 mV
• Peak-to-Peak: 15 mV
• Constant Current rms: 1 mA
• Readback Accuracy (via GPIB or keyboard display at 25°C ±5°C)
• Voltage 0.02%+ 16 mV
• Current 0.02%+ 1 mA
