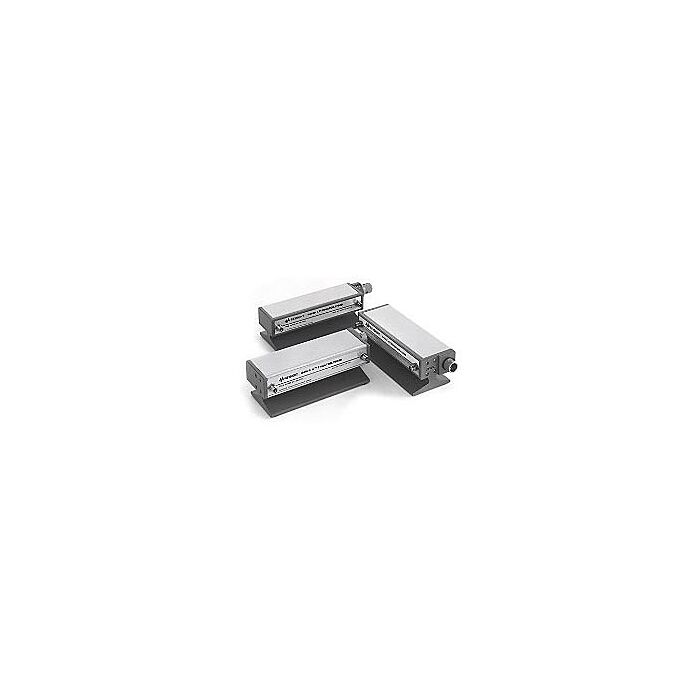

Keysight 8497K for Rent, Programmable Attenuator, 26.5 GHz, 90 dB, 10 dB steps

Keysight 8497K Highlights

The Keysight 8497K, dc to 26.5 GHz programmable step attenuator, offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 90 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

• Superior RF Performance
• Frequency range: dc to 26.5 GHz
• Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
• Maximum SWR: 1.25 to 6 GHz, 1.45 to 12.4 GHz, 1.6 to 18 GHz, 1.8 to 26.5 GHz
• Repeatability and Life Span
• Repeatability life: 0.03 dB max to 18 GHz, ±0.05 dB max to 26.5 GHz 5 million cycles per section (typical)
• 5 million cycles per section
• Power Handling
• Maximum RF input power: 1 W (average), 100 W (peak)
• Connector type: 3.5 mm female
• Programming connector: 12-pin Viking, optional 14-pin DIP
• Option 004: APC-3.5mm (f) Connector
