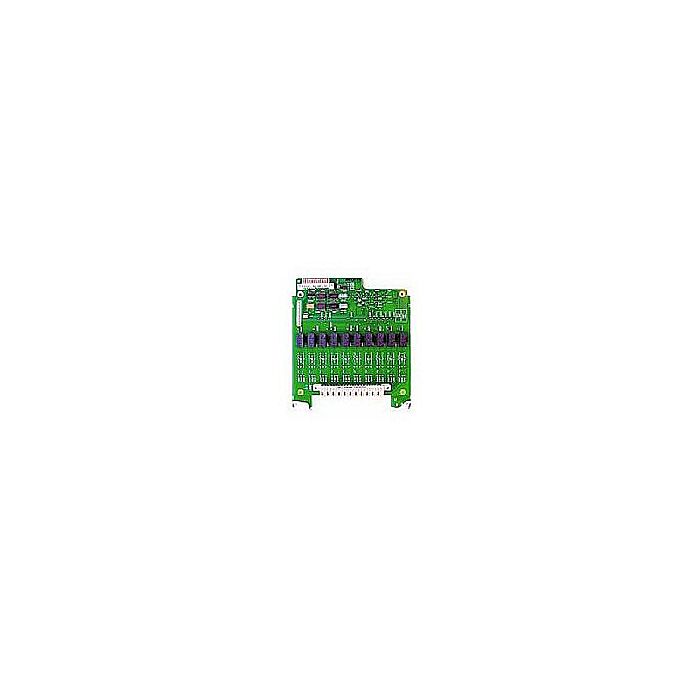

Keysight 44471A for Rent, 10-Channel General Purpose Relay Module, 2A, 250V, 1-Wire

Order # 44471A-RENT2 | Mfg # 44471A

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Keysight 44471A Highlights

The Keysight 44471A is a 10-channel 1-wire general-purpose relay module. It can be used to control DUT power, to actuate external relay or to form an attenuator. Each relay on the module is rated for switching up to 250V, 2A, or up to 60W or 125VA. The initial closed channel resistance is lower than 1 Ohm. The Keysight 44471A exhibits low thermal characteristics, making it ideal for independent signal switching. A screw terminal block is provided for ease of wiring.

The 44470A, 44470D, 44471A, and 44471D are designed for low-channel count applications, with higher switching capability (current or voltage) than N2260A or N2261A modules.

  • 2A, 250V
  • SPST Latching Relays
  • Provisions to add simple protection networks
