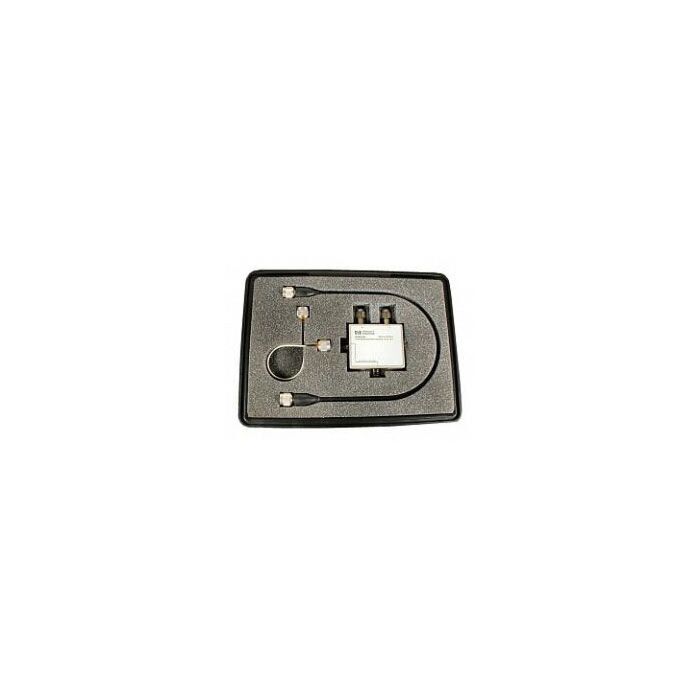

Keysight 41952B for Rent, Tranmission/Reflection Test Set, 100kHz to 500MHz, 75 Ohm

Keysight 41952B Highlights

The Keysight 41952B Transmission / Reflection Test Setallows the 4195A to perform full S-Parameter measurement without having to remove and reverse the device. the HP 41952B is used for 50 ohm applications.

• Impedance 75 ohm
• Frequency Range: 100 kHz to 500 MHz
• Directivity: 35 dB @ 800 kHz to 200 MHz
• Transmission Magnitude Phase (@ = 300 kHz): ± 1 dB, ± 5 deg
• Reflection Magnitude Phase (@ = 1 MHz): ± 1 dB, ± 5 deg
• Effective Source Match at Test Port: >20 dB @ = 300 kHz 75 Ohm type N(f)
• For the 4195A, 40dB @300kHz to 200MHz Directivity, ±1dB ±5deg Tranmission and Reflection Magnitude, Type N female 75 Ohm test port connector
