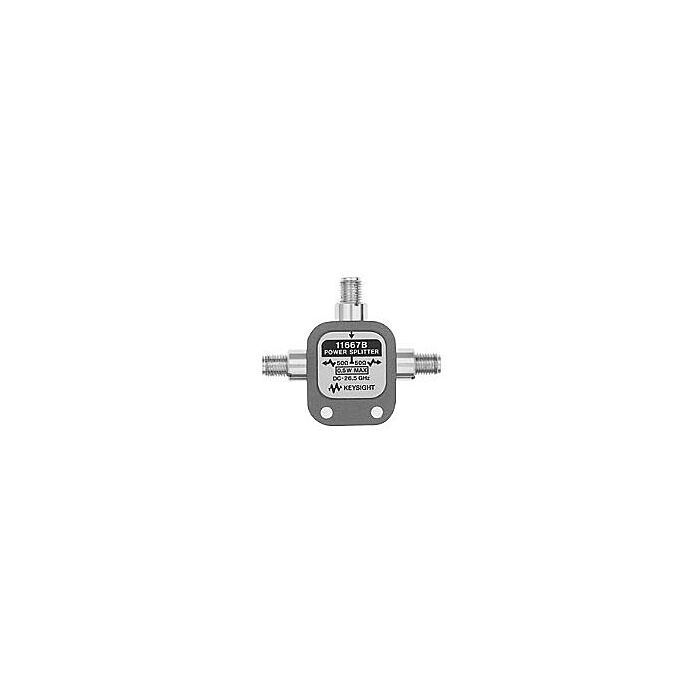

Keysight 11667B for Rent, Power Splitter, DC to 26.5GHz, Two-resistor type

Order # 11667B-RENT2 | Mfg # 11667B

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Keysight 11667B Highlights

The Keysight 11667B power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 26.5 GHz allows wideband measurements to be made with a minimum of uncertainty.

  • Superior RF Performance
  • Equivalent output SWR: 1.22
  • Maximum input power: 0.5 W
  • Insertion loss: 7 dB
  • Tracking between two ports: 0.25 dB to 18 GHz, 0.40 to 26.5 GHz
  • Equivalent Output SWR: 1.22, Max Input 0.5W, Connectors 3.5 mm (f) all ports
