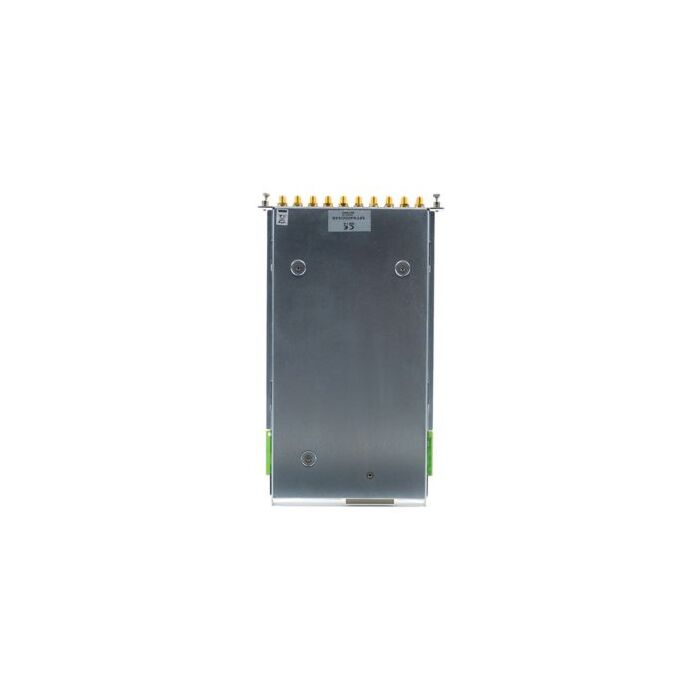

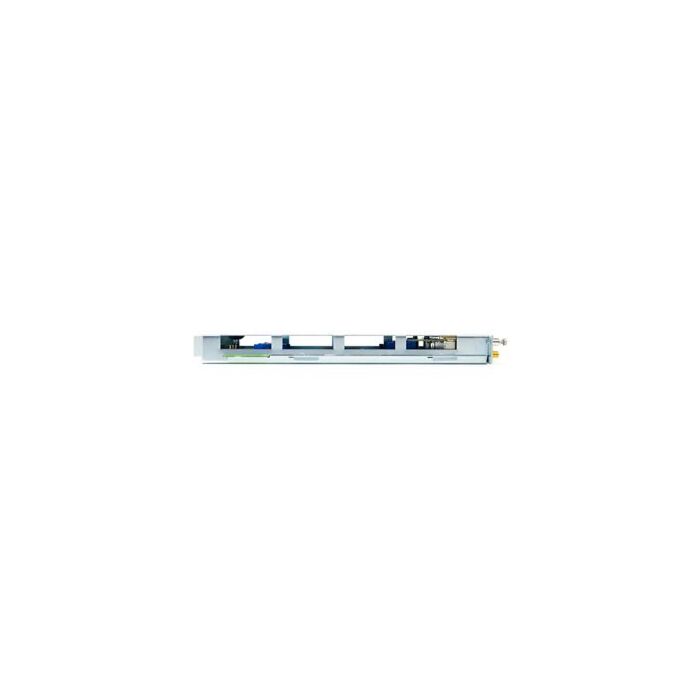

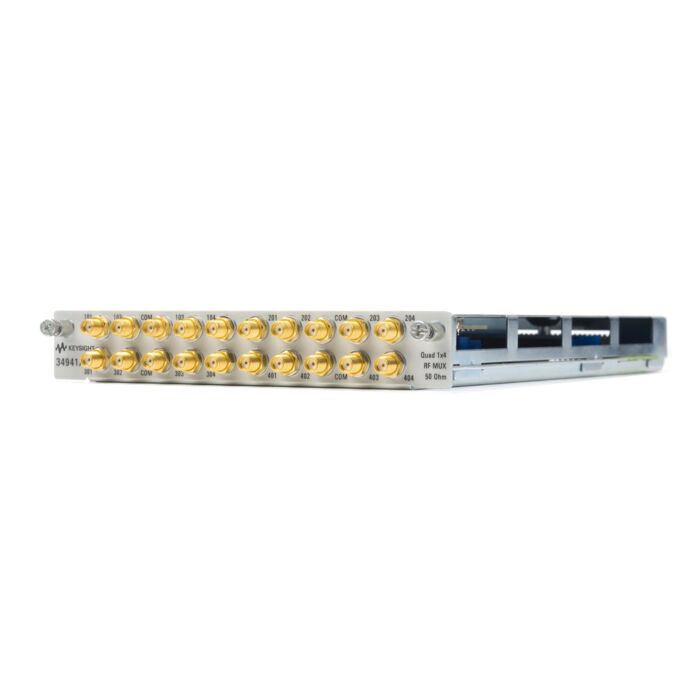

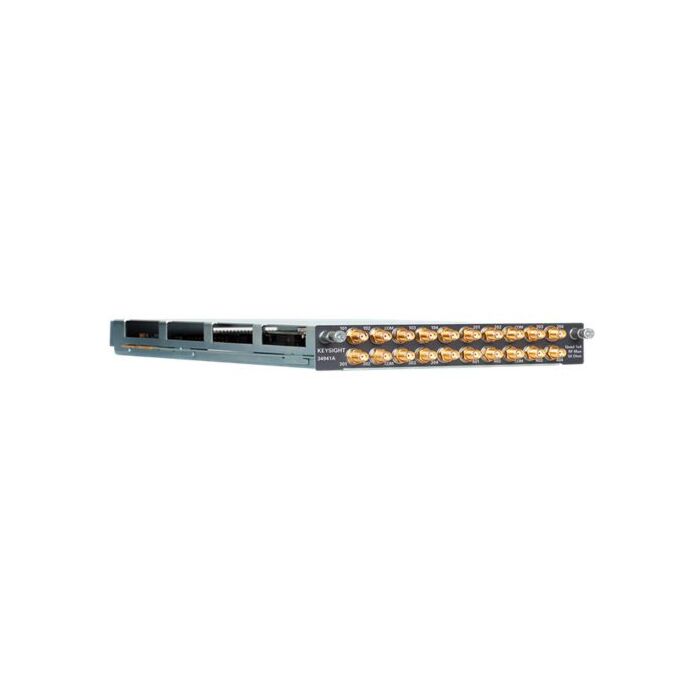

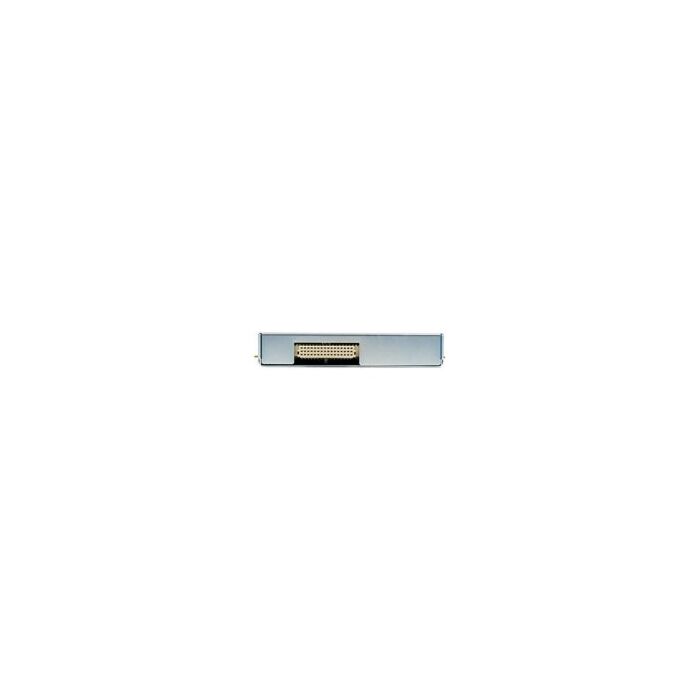

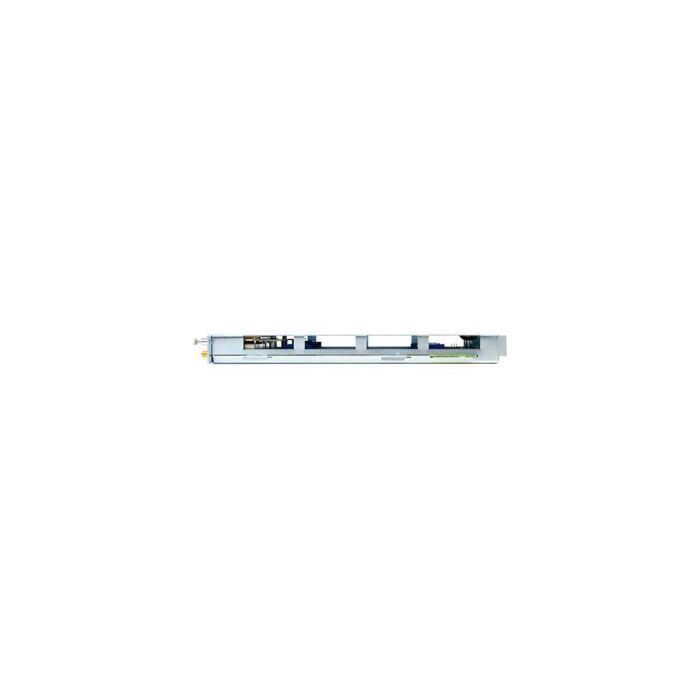

Keysight 34941A Quad 1x4 50ohm Multiplexer for 34980A

Order # 34941A | Mfg # 34941A
$2,633.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Quad 4-channel multiplexers
  • DC to 3 GHz, 50 Ohm
  • High isolation, low VSWR
  • 30V, 0.5A, 10W switching
  • SMA connectors

The Keysight 34941A RF multiplexer module for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 3 GHz. High channel isolation ensures quality dynamic range measurements with your oscilloscope, spectrum analyzer, or other instrumentation.

The RF multiplexers are configured as four independent 1x4 RF multiplexers on a single module. Individual multiplexers are isolated from each other and the Mainframe chassis to prevent ground loops. Multiple banks can be cascaded together to create an even large multiplexer - up to 97 cascaded RF channels in a single 34980A mainframe.

Technical Resources

Keysight 34941A-34942A Datasheet

Used With
