Keithley 8620 Shorting Plug

Order # 8620-K | Mfg # 8620
$109.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

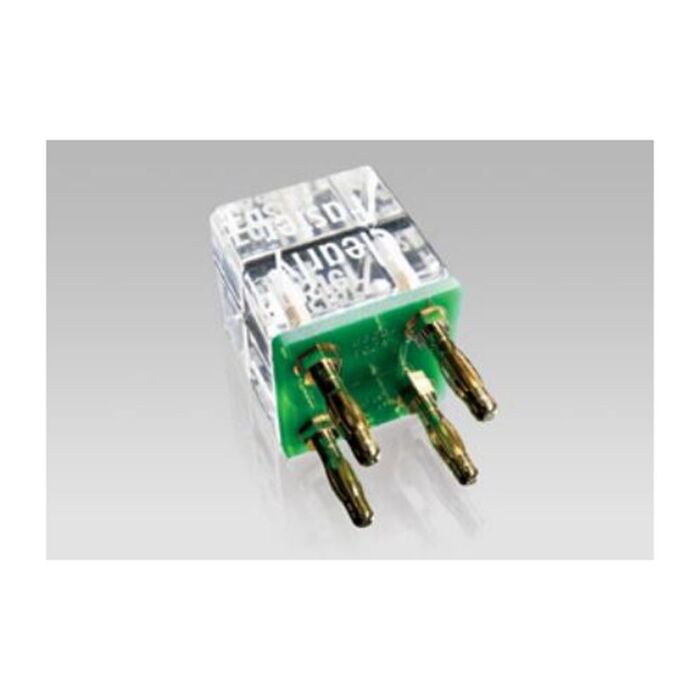

The Keithley Instruments Model 8620 general purpose 4-wire DMM shorting plug provides a convenient method of shorting 2-wire and 4-wire digital multimeter (DMM) inputs together. The Model 8620 consists of four gold-plated banana plugs mounted to a clear acrylic cube, and a gold-plated printed circuit board (PCB) assembly. This enables easy checking of DMM offsets for the purposes of instrument verification or offset cancellation during basic testing. The resistance between HI and LO pins is very low due to gold plated pin and PCB construction. However, the absolute resistances of 2- or 4-wire configurations as well as thermal voltage offsets are not specified, and metrology traceable applications are not recommended.
