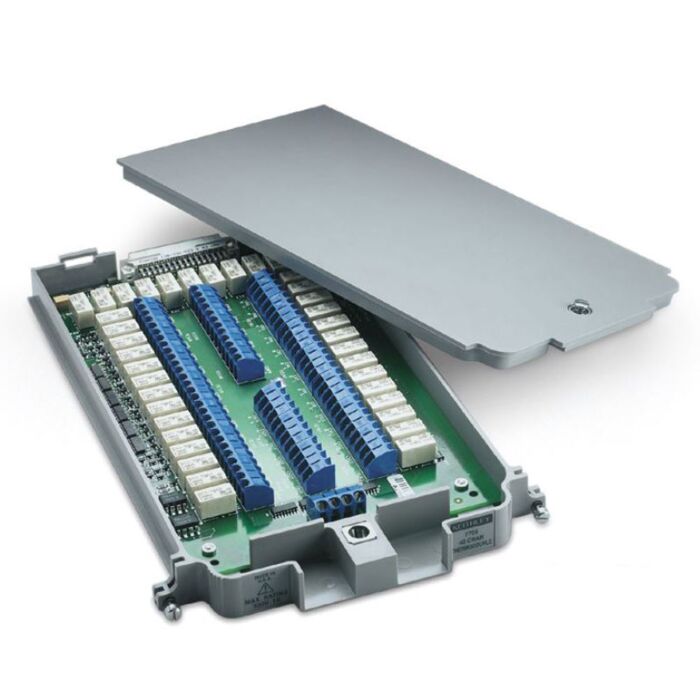

Keithley 7708 40 Channel Differential Multiplexer Module

Order # 7708 | Mfg # 7708
$1,690.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The 7708 plug-in module offers 40 channels of 2-pole or 20 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. The built-in CJC sensors automatically linearize thermocouples, making the 7708 ideal for RTD, thermistor, and thermocouple temperature applications. It is also well suited for mixed-signal measurement applications that require multi-point monitoring, such as environmental stress screening.

  • With automatic CJC and screw terminals
  • 40 Differential channels for general-purpose measurements
  • 2- or 4-wire Measurement
  • 300V, 1A Capacity for voltage channels, 60W, 125VA
  • Oversize screw terminal connection blocks are standard for easier connection
  • Relay closures stored in onboard memory
