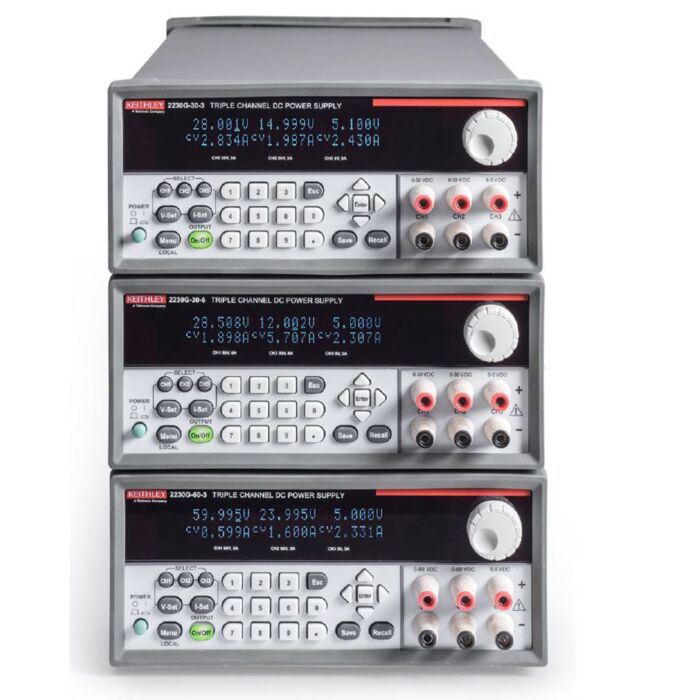

Keithley 2230-30-1 Programmable Triple Channel DC Power Supply
Programmable Triple Channel DC Power Supply

Order #: 2230-30-1

Mfg #: 2230-30-1

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,760.00

Keithley 2230-30-1 Programmable Triple Channel DC Power Supply

Programmable Triple Channel DC Power Supply

Order #: 2230-30-1

Mfg #: 2230-30-1

$1,760.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Series 2220 and 2230 Multi-Channel Programmable DC Power Supplies are ideal for testing a wide range of devices, circuit boards, modules, and products that require multiple power sources cost-effectively. Series 2200 supplies provide two channels, each capable of outputting up to 30V and up to 1.5A. Series 2230 supplies include two 30V/1.5A channels plus a 6V channel with up to 5A output for powering digital circuits. The Model 2231A-30-3's two channels can supply up to 30V at 3A each; the third channel can provide up to 5V at 3A.

  • Dual output model with two channels up to 30V/1.5A/45W each
  • All channels are independently controlled and have isolated outputs for maximum flexibility
  • Remote sensing with all channels to ensure programmed voltage accurately being applied to the load
  • Two 30V channels can be combined in series or in paralell to double output voltage or current
  • 0.03% basic voltage output accuracy and 0.1% basic current accuracy ensure quality test data
  • Low noise, linear regulation with <3mVp-p ripple and noise
  • Voltage and current outputs for all channels are displayed simultaneously for easy observation
  • Keypad entry allows fast, precise entry of output values
  • Standard USB and GPIB interfaces for flexible automated testing
