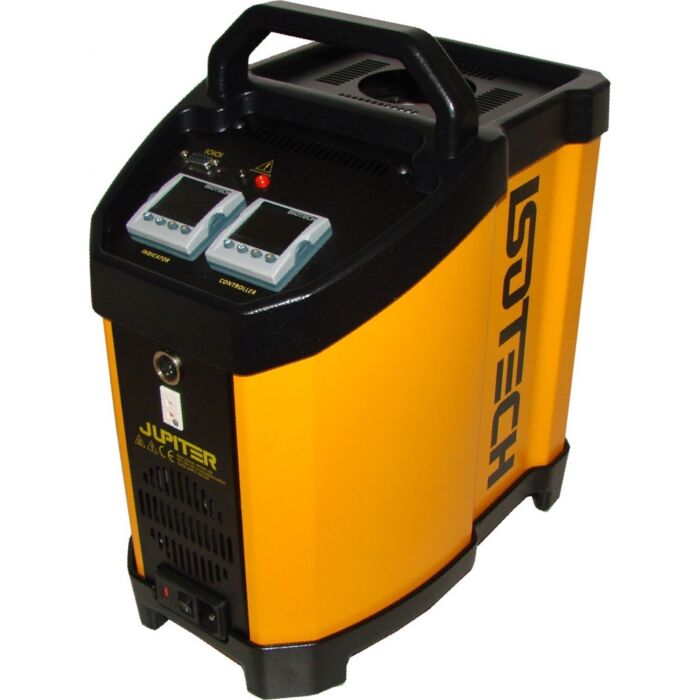

Isotech 4852-SITE
Dry Block Calibrator 35C to 660C
Order #: JUPITER 4852 SITE
Mfg #: JUPITER 4852 SITE
$7,932.00
Isotech 4852-SITE
Dry Block Calibrator 35C to 660C
Order #: JUPITER 4852 SITE
Mfg #: JUPITER 4852 SITE
$7,932.00
The Jupiter Dry Block range offers industry-leading performance in an easy to use portable package - ideal for the calibration of thermocouples and platinum resistance thermometers. It has been designed for fast heating and cooling for convenient field use. For flexibility surface sensor and infrared thermometer accessories can be added.
Availability: Ships in 3-4 weeks
Product Highlights
- 30°C to 660°C. 35 x 160mm Volume
- Fast Response
- Calibrate Whole Measurement Loop
- Stability ±0.015°C @ 100°C ±0.025°C @ 650°C
- Display Resolution 0.01°C over whole range
- Input Channel Accuracy: Thermocouple E, J, K, N: ±0.2°C @ 660°C R: ±0.6°C S: ±0.7°C @ 660°C T: ±0.2°C @ 150°C
- CJC Accuracy ±0.35°C
- Input Channel Accuracy: RTD ±0.05°C ±0.005% RDG
- Blackbody Source ±0.3°C
- Surface Sensor Calibrator ±0.5°C
- Cools from 650°C to 150°C in 60 minutes
- Heats from 30°C to 650°C in 20 minutes
- Calibration Volume 35mm diameter by 148mm deep
- Standard Insert 6 pockets, 2 x 4.5mm, 2 x 6.4mm, 1 x 8.0mm, 1 x 9.5mm diameter, all 140mm deep
- Indiactor Units °C, °F, K
- Power 115Vac or 230Vac 50/60Hz 1000 Watts
- Dimensions 384H (including handle) x 212W x 312D mm
- Weight 8.5kg
