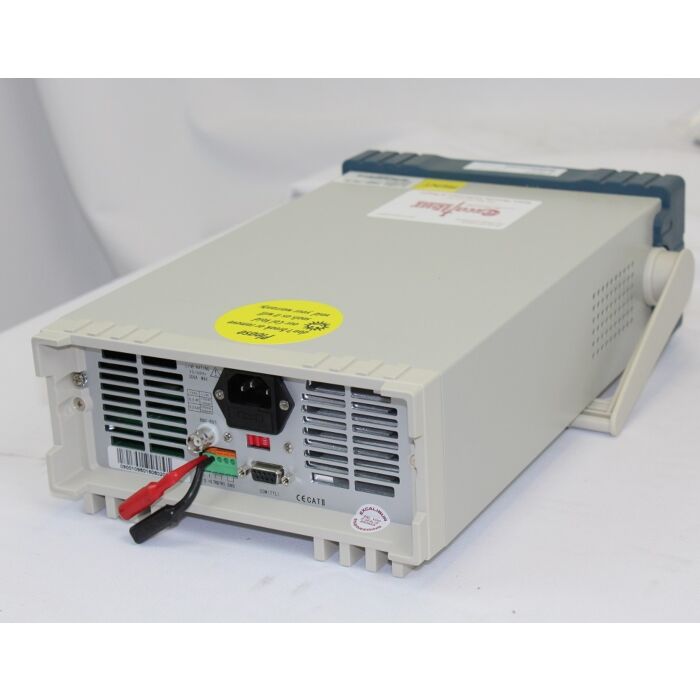

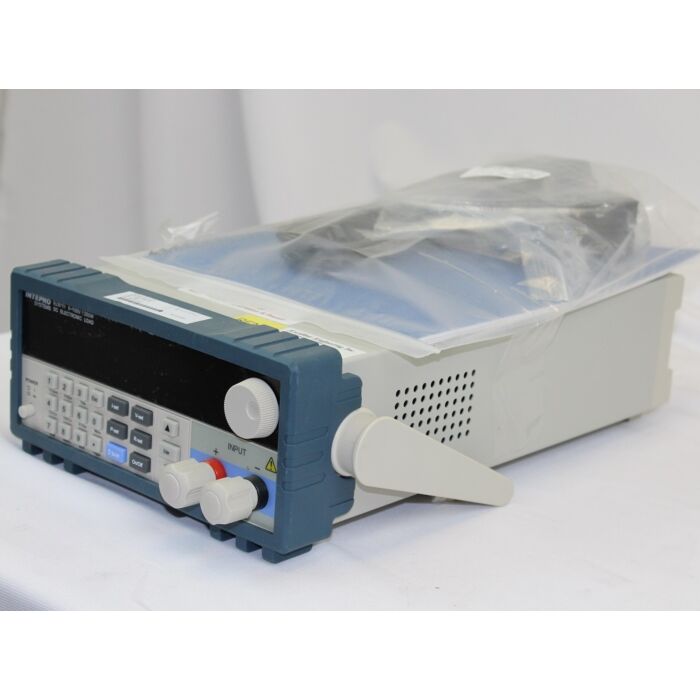

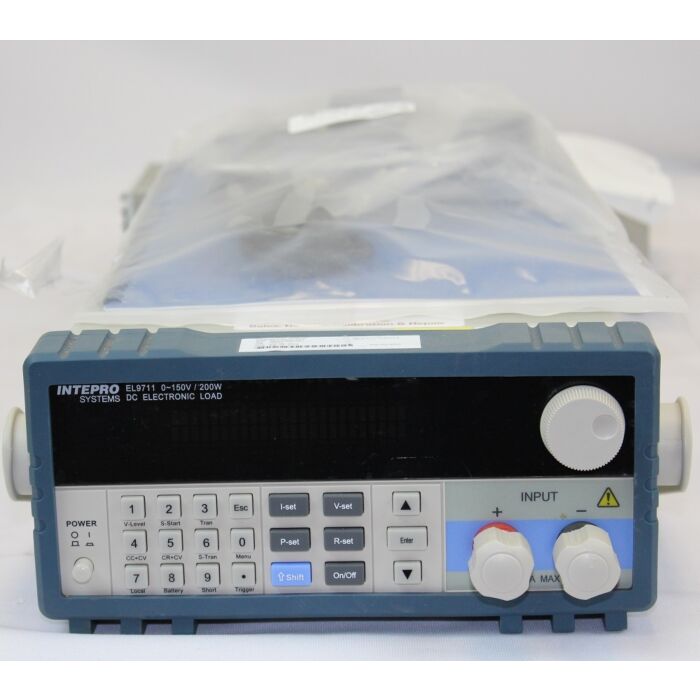

Intepro EL9711 Used for Sale
Programmable Electronic DC Load 150V,30A,150W

Order #: EL9711-USED

Mfg #: EL9711

Questions about availability or need help? Contact Us:

(800) 633-0561
$750.00

Intepro EL9711 Used for Sale

Programmable Electronic DC Load 150V,30A,150W

Order #: EL9711-USED

Mfg #: EL9711

$750.00

Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability:
In stock
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

EL 9700 DC LOAD

The Intepro EL 9700 Electronic load Series is a new line of bench top and rack mount DC loads that combine six modes of operation with special test features including programmable CC soft start, dynamic pulsing, built in battery test, and short circuit mode making these DC loads ideal for testing power supplies and batteries as well as other power products. These loads are rated from 150 watts to 6000 watts. Typical applications that these model EL9700 series loads can be used for include research & development, production, solar cell loading, fuel cell testing and incoming inspection.

The EL 9700 series of loads include six modes of operation, CC (constant current), CR (constant resistance), CV (constant voltage), CP (constant power), CC+CV, and CR+CV to support a wide range of testing applications. Dual range 16-bit resolution measurements of voltage (V), current (I) and power (W) provide the accuracy of a DMM with the convenience of a single connection. Intepro Systems loads are designed for easy integration into automated test systems or used as a standalone instrument, operated by the easy to use front panel. Every load comes standard with an Ethernet or USB interface. All loads have power up self-diagnostic routine with built in calibration checks. Loads are fully protected against OP, OC, OV, OT and reverse polarity. This ensures the quality and reliability of the loads and provides protection for the unit under test.

The Intepro EL 9700 series DC electronic loads, as a new generation line of products, are designed with high-performance chips, high speed, high accuracy and with resolution of 0.1 mV and 0.01 mA (the basic accuracy is 0.03%, the basic current rise speed is 2.5 A/us). The EL 9700 series has a wide application in production line testing (ie. cell phone charger, cell phone battery, electric vehicle battery, Switching power supply, linear power supply), research institutes, automotive electronics, aeronautics and astronautics, ships, solar cells, fuel cell, etc.

Key features of the EL 9700 DC Load products

  • Remote Voltage Compensation

    Supports Remote Voltage Compensation and Multi-Data Storage

  • Testing & Calibration

    Power-on-self-test, Software Calibration, and Standard Rack Mount

  • Interface

    RS232, RS485, USB Communication Interface.

  • Operation Modes

    Six High Speed Operation Modes: CC, CR, CV, CW, CC+CV, CR+CV

  • Protection

    Over Current, Over Voltage, Over Power, Over Heat, Polarity Reversed Protection.

  • Cooling

    Intelligent Fan System is Automatically Initiated According to the Temperature.

  • Waveforms

    Arbitrary Waveform Generation.

  •  Power Rating

    150W to 6000W.


  •
