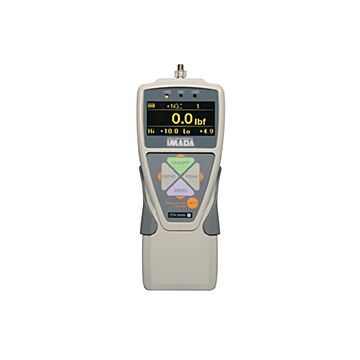

Imada ZTA-DPU-4

Product highlights

• Lbs Capacity (Resolution): 4.400 lbf (0.001 lbf)
• Color-coded LED indicators and output signal for Go/No Go testing
• Both push and pull capability
• Selectable lbf, kgf, and N units (ozf, gf measured in low capacity models)
• Ergonomic design with non-slip grips, heavy duty metal construction
• 1,000 data memory
• Processes and transmits 2,000 data/sec.
• USB (virtual COM port), RS-232C, Digimatic and Analog outputs
• 200% overload capacity (overload indicator flashes beyond 108% F.S.)
• Export gauge memory or save continuous data to USB flash drives

Each Unit Includes

• full set of attachments

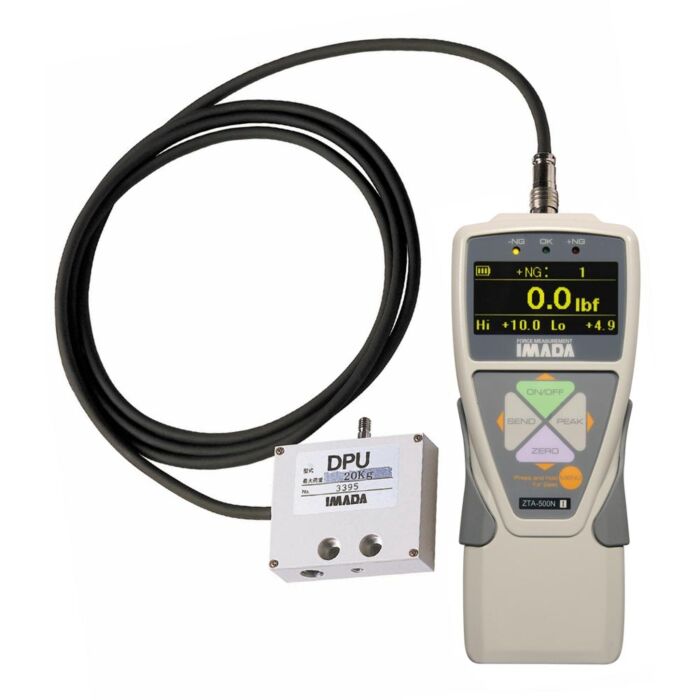

• DPU_sensor with 6' cable
• ZT Logger data acquisition software
• USB_cable
• AC adapter/charger
• calibration cert traceable to NIST
• carrying case
