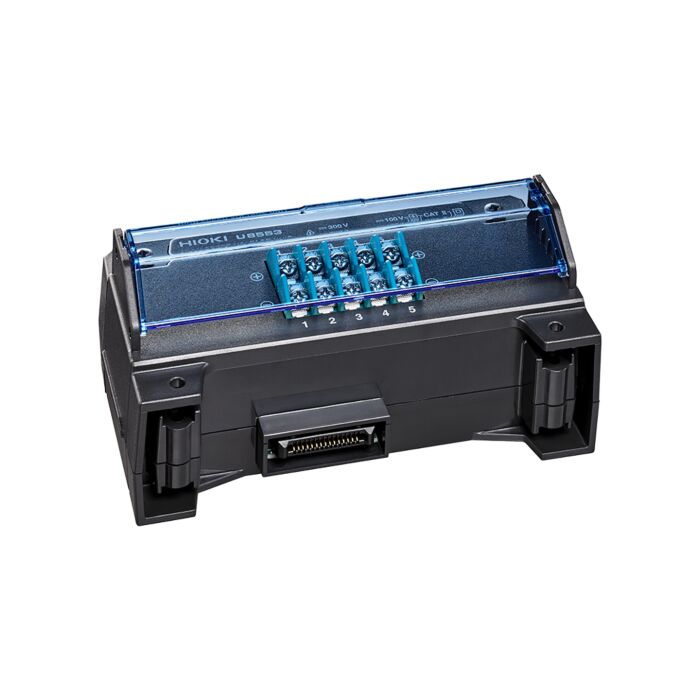

Hioki U8553 High Speed Voltage Unit (5-Channels)

Order # U8553 | Mfg # U8553
$1,242.35

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

HIGH SPEED VOLTAGE UNIT U8553

Voltage measurement with 1 ms sampling

  • 5 channels, voltage measurement
  • Sampling rate of up to 1 ms with 5 channels
  • For measuring various sensor outputs at several tens of Hz, such as pressure and vibration.

Specifications

Connectable instruments Memory HiLogger LR8450 (Designed for use with plug-in units only)
Memory HiLogger LR8450-01 (Wireless LAN model)
Operating temperature and humidity -10°C to 50°C, 80% RH or less (no condensation)
Storage temperature and humidity -20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Included accessories Instruction manual x 1, mounting screw x 2
Number of input channels 5 ch (for voltage only)
Input terminals M3 screw-type terminal block (2 terminals per channel), outfitted with terminal block cover
Measurement target Voltage
Input type Scanning by semiconductor relays
All channels isolated
