Product Highlights

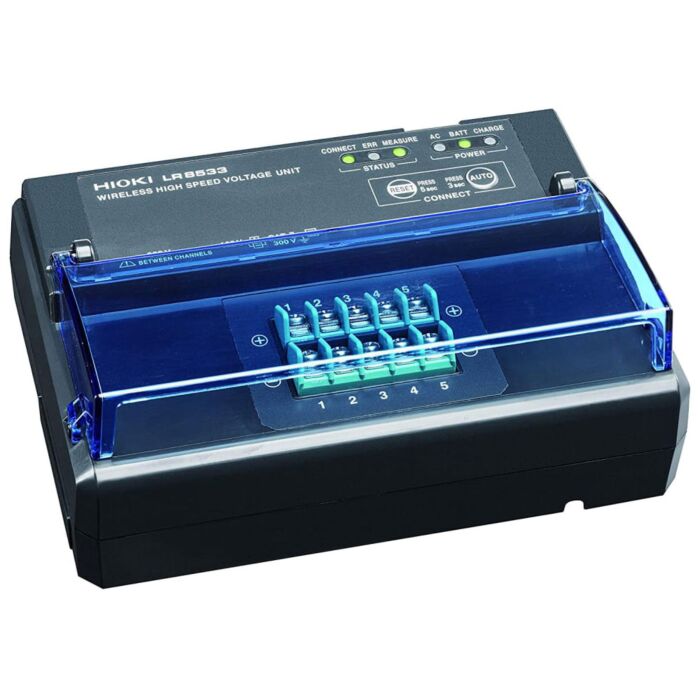

The Hioki LR8533 provides 5 channels with a sampling rate of 1 ms. It used for measuring various sensor outputs at several tens of Hz, such as pressure and vibration. The wireless high speed voltage unit LR8533 can operate for about 9 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.
The LR8533 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8532 can be wirelessly connected to the Memory HiLogger LR8450-01.
Features
- For use with LR8450-01 Wireless LAN Multi-Channel Data Logger
- Suitable for convenient installation in testing equipment and confined locations
- Built-in buffer memory can hold up to 5 minutes of measurement data
- Operates for approximately 9 hours on battery power (included)
- Number of channels: 5 (voltage only)
- Maximum sampling rate: 1 ms
- Range (line of sight): 98.4 ft. (30 m)
- Input terminals: M3 screw-type terminal block (2 terminals per channel), outfitted with terminal block cover
- Measurement target: Voltage
- Input type: Scanning by semiconductor relays, all channels isolated
- Dimensions (W x H x D): 6.06 x 4.17 x 2.24 in. (154 x 106 x 57 mm)
- Weight: 13.1 oz. (370 g)
