Product Highlights

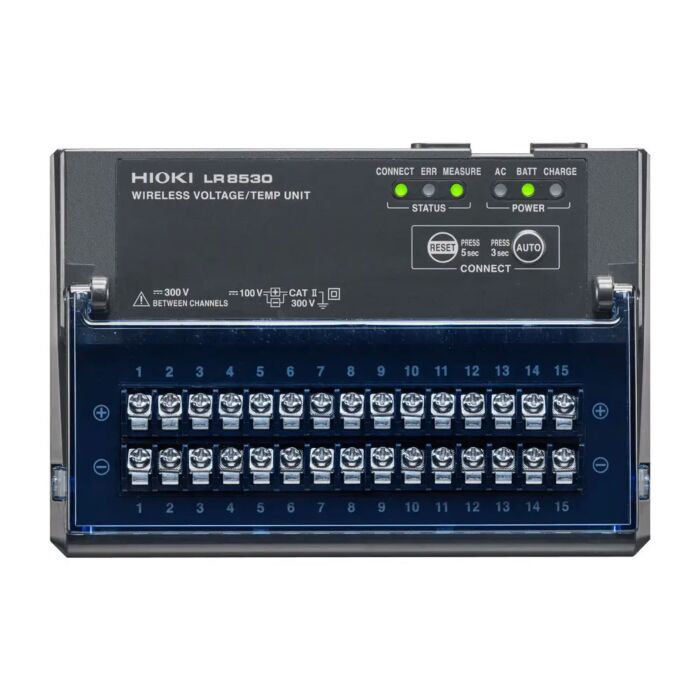

The Hioki LR8530 provides 15 channels with maximum sampling rate 10 ms. the wireless Voltage/Temp unit LR8530 can operate for about 9 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.
The LR8530 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8530 can be wirelessly connected to the Memory HiLogger LR8450-01.
Features
- For use with LR8450-01 Wireless LAN Multi-Channel Data Logger
- Suitable for convenient installation in testing equipment and confined locations
- Built-in buffer memory can hold up to 5 minutes of measurement data
- Operates for approximately 9 hours on battery power (sold separately)
- Number of channels: 15 (users can set voltage or thermocouple for each channel)
- Maximum sampling rate: 10 ms
- Range (line of sight): 98.4 ft. (30 m)
- Input terminals: M3 screw-type terminal block (2 terminals per channel)
- Measurement target: Voltage, thermocouples
- Dimensions (W x H x D): 6.06 x 4.17 x 2.24 in. (154 x 106 x 57 mm)
- Weight: 14.9 oz. (423 g)
