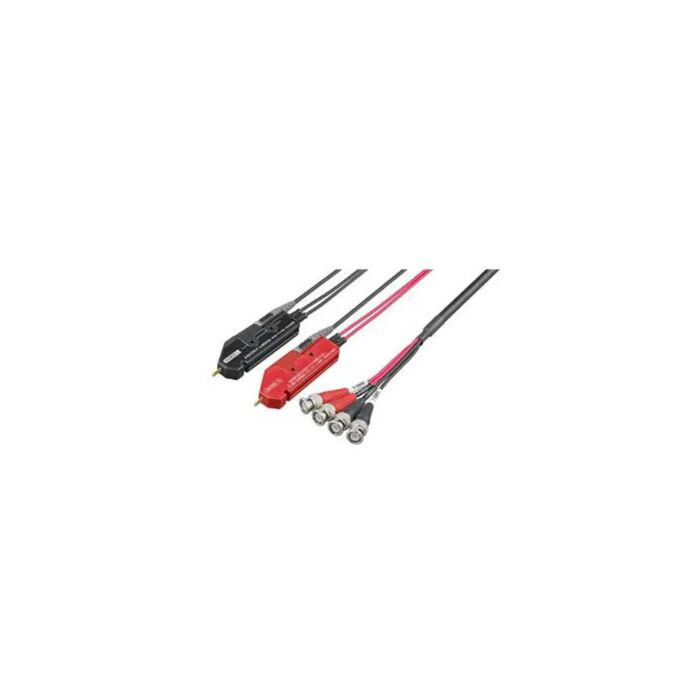

Hioki L2003 Pin Type Probe

Product Highlights

The Hioki L2003 Pin Type Probe is designed for precise four-terminal measurements, making it ideal for testing laminate-type batteries and other low-resistance materials. The probe features a positioning stopper to ensure consistent clipping depth, enhancing measurement accuracy. With a flexible coaxial cable design and replaceable tip pins, the L2003 offers durable and reliable performance in a variety of environments.

Features

• Cable length: 1.5 m
• Maximum Voltage: 30 V peak, Red (high) / Black (low)
• Maximum Current: 2.5 A peak
• Distance Between Pins: 2.5 mm
• Probe Length: 9.15 mm
• Thickness: 12 mm
• Terminal Structure: Gold plating process, needle tip shape
• Fixing Using the Mounting Holes
• For BT4560 Battery Impedance Meter
• 1-Year Warranty
