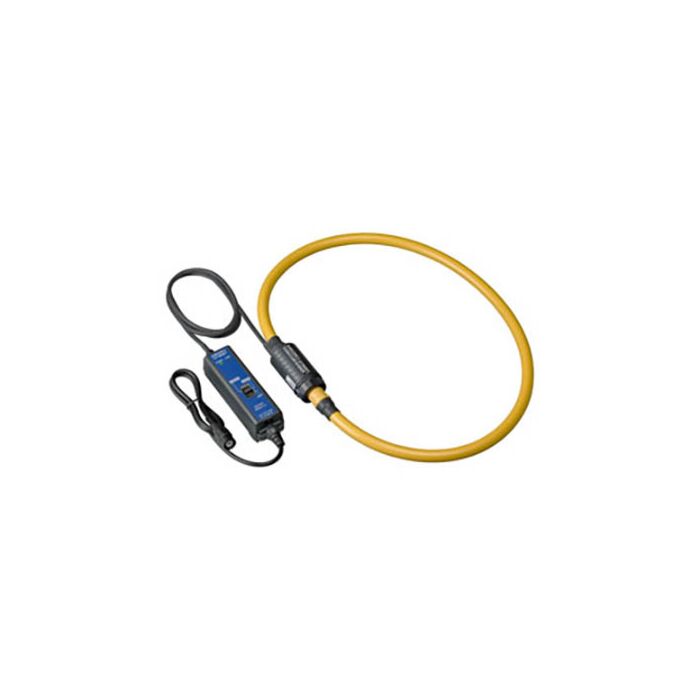

Hioki CT9667-01

AC Flexible Current Sensor, 500/5000A, 3.94"diameter

Order #: CT9667-01

Mfg #: CT9667-01

Questions about availability or need help? Contact Us:

(800) 633-0561
$400.00

Hioki CT9667-01

AC Flexible Current Sensor, 500/5000A, 3.94"diameter

Order #: CT9667-01

Mfg #: CT9667-01

$400.00
Availability: Ships in 2-3 weeks
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Hioki current sensors are best-in-class devices for use with power meters, PQAs and Memory HiCorders. The CT9667 series are flexible Rogowski type AC sensors comprising of 3 different models in various loop diameter sizes from 100 to 254 mm. The 100mm and 180mm diameter sensor also feature extra thin cables for easier looping around complicated wiring. All 3 sensors 500A/5000A ranges, making them ideal for measuring large load current.

  • CAT IV 600 V, CAT III 1000 V
  • Thinner cables are easy to use in confined spaces and with complicated wiring
  • Shaped so that it’s easy to route through complex wiring
  • Easily supports large current measurements up to 5000 A
  • Wide 10 Hz to 20 kHz band with excellent frequency characteristics
  • Choose from three conductor diameter sizes
  • Combine with Hioki power meters or Memory HiCorders
  • Rated input current: 5000 A AC/ 500 A AC
  • Max. allowable input: 10000 A continuous (45 to 66 Hz, requires derating at frequency)
  • Bandwidth: 10 Hz to 20 kHz (±3dB)
  • Amplitude and phase accuracy:
    • ±2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop)
    • Phase: ±1 deg (45 to 66 Hz)
  • Output voltage:
    • 500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range
    • 500 mV AC/f.s. (1 mV AC/A) at 500 A range
  • Max. rated voltage to earth: 1000 V AC (CAT III), 600 V AC (CAT IV)

Each Unit Includes

  • LR6 (AA) alkaline batteries ×2
  • Instruction manual ×1
