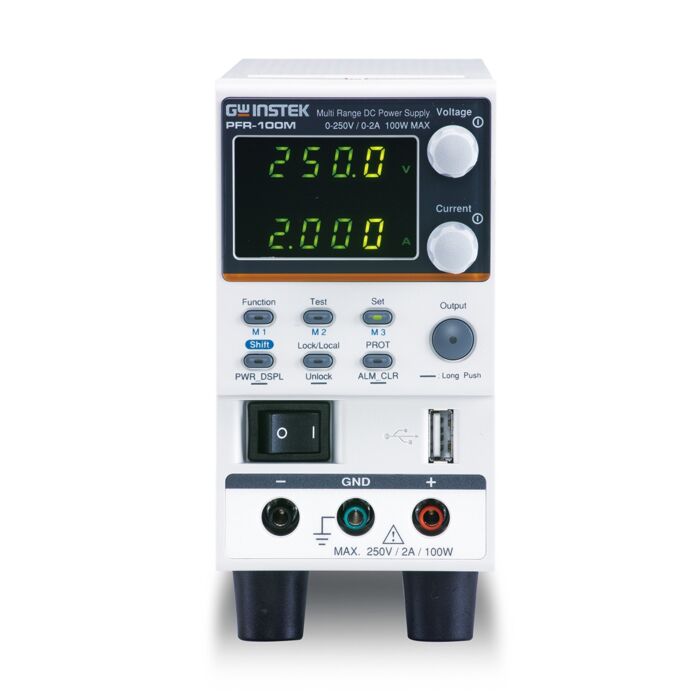

GW Instek PFR-100M

Multi-Range DC Power Supply (0~250V/0~2A/100W) Fanless

Order #: PFR-100M

Mfg #: PFR-100M

Questions about availability or need help? Contact Us:

(800) 633-0561
$735.00

GW Instek PFR-100M

Multi-Range DC Power Supply (0~250V/0~2A/100W) Fanless

Order #: PFR-100M

Mfg #: PFR-100M

$735.00
Availability: Item ships in about Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

The PFR-100 series is a small and high-performance programmable D.C. power supply with a natural convection design to dissipate heat. The fanless structure allows users to focus on their experiments and tests in a quiet environment. This Fanless power supply will not draw in dust and foreign objects; therefore, the PFR-100 has a longer life cycle compared with that of power supplies with fan conditions. The PFR-100 series is a power supply with a five-fold rated power that allows users to self define voltage and current under rated power conditions so as to satisfy them with wider voltage and current operational ranges. The PFR-100 is rated to 100W and come as two models: PFR-100Lmaximum output voltage of 50V (at 2A) or maximum output current of 10A (at 10V); PFR-100M- maximum output voltage of 250V (at 0.4A) or maximum output current of 2A (at 50V).

  • Five-fold rated power output
  • Natural convection cooling design (fanless structure)
  • Three-point memory storage function
  • Output ON/OFF delayed time function
  • CV, CC priority mode
  • Adjustable slew rate for voltage/current
  • Bleeder circuit control
  • Protections: OVP, OCP, AC FAIL and OTP
  • Support front and rear panel output
  • Built-in USB and RS-232/485 interfaces. Options: LAN and GPIB
  • Remotely monitor and control via internet (PFR-100 has a built-in web server.)
  • External analog control and monitor function
  • Remote compensation and detection for voltage function
