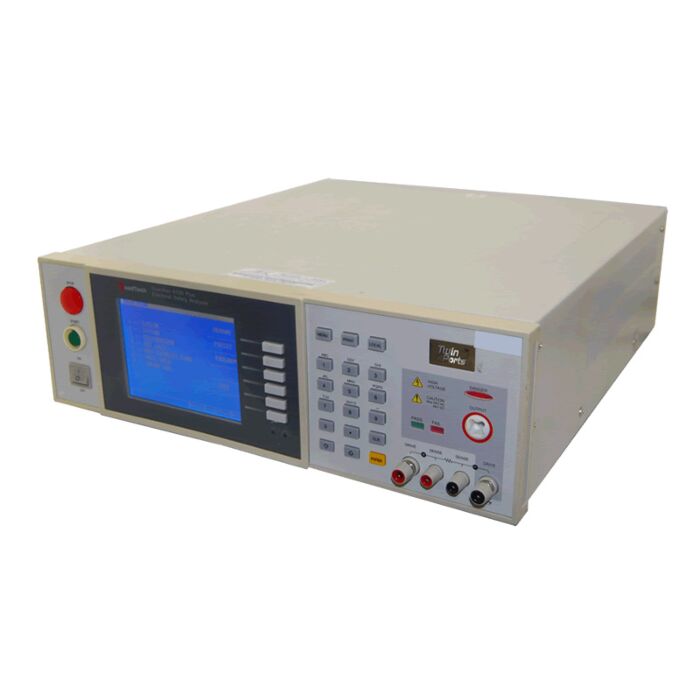

Guardian Equipment 6100 PLUS for Rent, AC/DC/IR/GC Safety Analyzer HiPot, .05-5KVAC, .05-6KVDC, 1-30A

Order # GUARDIAN 6100 PLUS-RENT2 | Mfg # GUARDIAN 6100 PLUS-RENT2

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The Quadtech Guardian 6100 Plus is the industry's first production safety analyzer with simultaneous Hipot and Ground Bond capability providing a dramatic savings in test time. Six instruments in one, the Guardian 6100 Plus provides AC Hipot, DC Hipot, Insulation Resistance, Leakage Current / Functional Run, Ground Bond and Open / Short measurements from a single test connection. Versatile and packed with features, the Guardian 6100 Plus is a cost effective solution for the full spectrum of electrical safety compliance testing.

  • Twin Port - Simultaneous Hipot & GB
  • Built-in 20A Hipot/Line Leakage Scanner
  • Output Voltage to 5 kV AC and 6kV DC
  • Ground Bond Testing to 30A AC (to 40A with Optional Transformer)
  • Insulation Resistance Measurements from 100 kohms to 50 Gohms
  • Earth, Enclosure & Patient Line Leakage Current Measurements to 9.999 mA
  • Open/Short Circuit Detection Mode
  • Pause Mode with Message Capability
  • Continuous Leakage Current Monitoring
  • Programmable Trip Current to 40 mA AC and 12 mA DC
  • Programmable Ramp, Dwell & Test Times
  • Storage of 100 Test Setups, 50 Steps Each
  • Front Panel Lockout via Password
  • Standard RS-232 & Remote I/O Interfaces
  • Optional IEEE-488, Printer Interfaces
  • Optional CaptivATE Automation Software for Guardian 6100 Plus
