Overview

Product Highlights

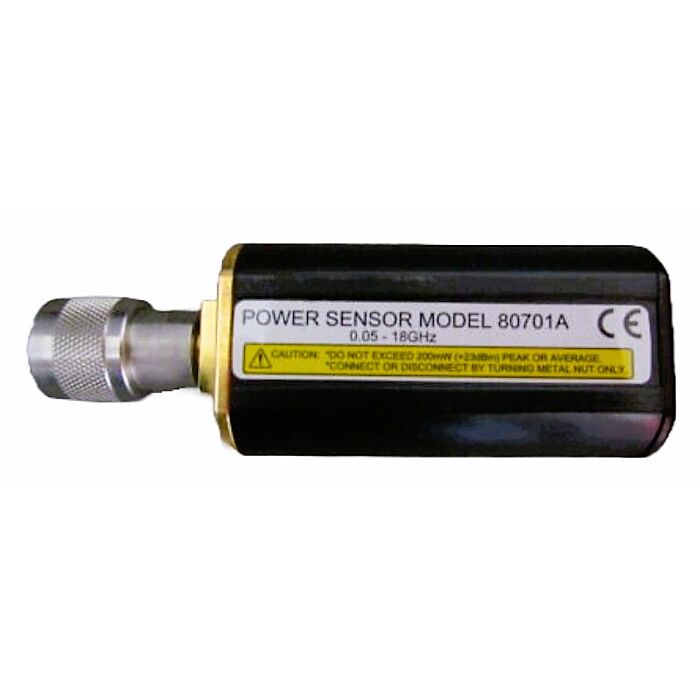

The Gigatronics 80701A Power Sensor has a frequency range of 50 MHz to 18 GHz and is used with the 8650A series of power meters. The Giga-tronics 80701A provides up to 10 MHz of system bandwidth to measure peak and average power of wide band, third-genration CDMA signals over an 80 dB range.

  • Max Power: +23 dBm (200 mW)
  • Power Range: -67 dBm to +20 dBm CW / -60 dBm to +20 dBm Modulated (from 250 MHz)
  • Power Linearity: -60 to -20 dBm: +/-0.00 dB | -20 to +20dBm: +/-0.05 dB/10dB
  • Connector: Type N
  • VSWR: 1.12: 0.01-2GHz / 1.22: 2-12.4GHz / 1.29: 12.4-18GHz
