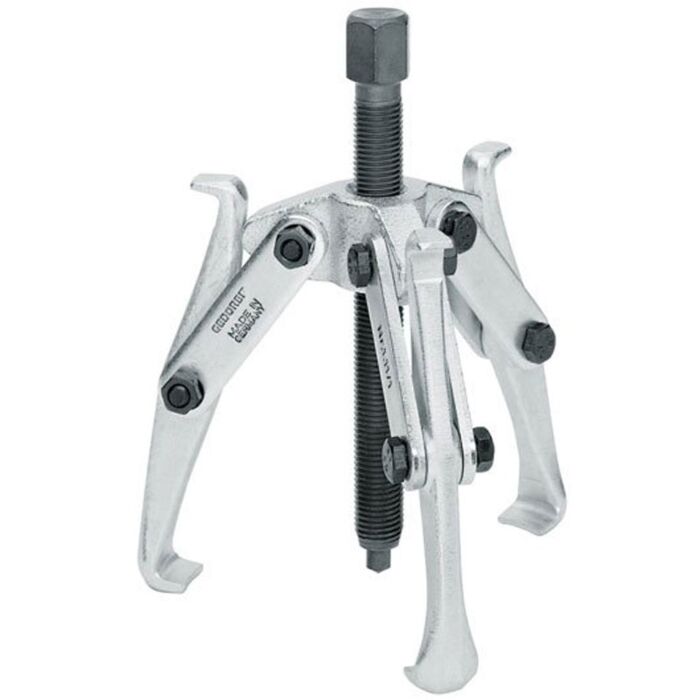

Gedore Tools 1.11/3

Product Highlights

• The reliable, heavy-duty model for the removal of pulleys, wheels, ball bearings, etc.
• The double leg ends, wide or narrow, grip automatically
• The wide leg ends of the puller 1.11/2, /3, /4 and /5 possess 8 mm slots, so that pulleys or gears may also be pulled off using 8 mm bolts
• Clamping spread -max- external pulling (a, a1): 220 mm
• Clamping reach: 170 mm
• Spindle size (Thread x Length): M 18x1,5 x 170
• Width Across Flat / Actuating Hexagon: 19 mm
• Width of hooked foot (c): 24 mm
• Width of hooked foot (c2): 20 mm
• Depth of hooked foot (d): 13 mm
• Thickness of hooked foot at tip (e): 3 mm
• Loading max. t: 7.5 t
