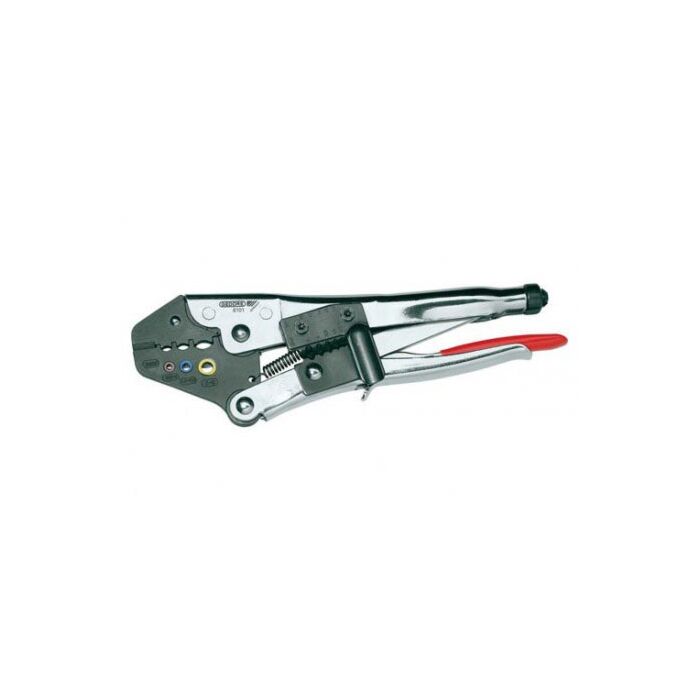

Gedore Tools 8101

Product Highlights

• For red, blue and yellow insulated connectors, such as cable terminals, pin cable terminals, flat plugs, flat sockets, round plugs, round sockets, push connectors and parallel connectors
• With integrated three-stage positioner
• Step 1. Crimp the conductor in the profile intended for the colour (Conductor crimp = red, blue, or yellow)
• Step 2. Crimp the insulation in the next following profile (Insulation crimp = blue or yellow)
• The integrated three-stage positioner ensures the longitudinal positioning of the contact in the crimping section used
• The three-stage adjustment is designed especially for the contacts, and shown as drawings on the positioner
• Cutting values:
  • 1: 0.5-1.0 mm2 / 20-16 AWG
  • 2: 1.5-2.5 mm2 / 16-14 AWG
  • 3: 4.0-6.0 mm2 / 12-10 AWG
