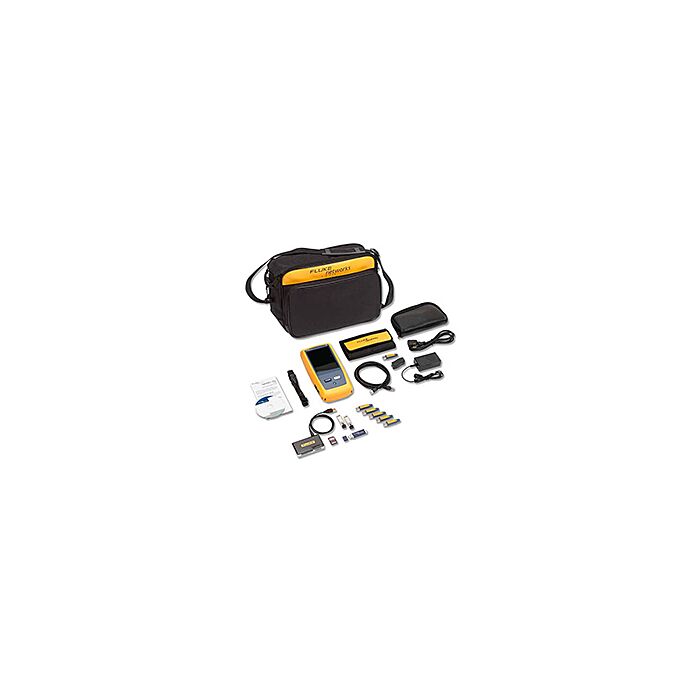

Fluke OneTouch™ AT Network Assistant (Tester)

Product Highlights

All-in-one network tester: combined copper, fiber optic and Wi-Fi network troubleshooting resolves a broad range of problems with one testing tool
Versatile: dual 10/100/1G copper/fiber Ethernet test ports and an 802.11a/b/g/n/ac Wi-Fi radio for use in multiple environments
Fast: one-button automated testing with pass/fail analysis speeds identification of the most common problems in about a minute
Easy: standardized network troubleshooting and performance validation empowers technicians of various skill levels to solve more problems with confidence
Complete: a comprehensive client view of performance isolates the problem root cause starting from the physical layer, through the network and to server-hosted applications
Cloud: automated, cloud-based results trending and performance analytics to troubleshoot intermittent client problems from anywhere using a web-connected device with a browser
Discover: automated wired and Wi-Fi discovery and analysis provides visibility into connected devices, key device properties, device interconnections and problems
Performance: end-to-end L2/L3 wired and Wi-Fi path performance measurement to a peer or a reflector to validate and document link readiness and SLA compliance
VoIP: inline VoIP call monitoring and comprehensive logging simplifies troubleshooting of desktop VoIP problems in real-time without taps or switch mirror ports
Capture: wired, Wi-Fi, VoIP and AutoTest packet capture streamlines collaboration and escalation of the most complex issues
Versiv™ test platform: expand capabilities by adding new modules as testing needs evolve

Specifications

General
Dimensions (with module and battery installed)	10.3 in x 5.3 in x 2.9 in (26.2 cm x 13.5 cm x 7.3 cm)
Weight (with module and battery installed)	3.5 lb (1.6 kg)
Display	5.7 in (14.5 cm) LCD with projected capacitance touchscreen, 480 x 640 pixels
AC adapter	Input: 100-240 Vac, 50-60 Hz, 1.0 A Output: +15 Vdc, 2.0 A
Battery type	Lithium ion battery pack, 7.2 V
Battery life	Approximately 3-4 hours depending on type of usage 4 hours to charge from 10% capacity to 90% capacity with the unit powered off
Memory	Internal: 2 GB shared between system and user files SD card: 4/8 GB, brand and model selected for optimal performance USB 2.0 type A port: for use with USB mass storage devices

Wired Network Interface
Network analysis ports	Two RJ-45 10/100/1000BASE-T Ethernet Two Small Form-factor Pluggable (SFP) 100BASE-FX/1000BASE-X Ethernet
Management port	One RJ-45 10/100BASE-T Ethernet One USB 802.11 (requires optional adapter)
Supported network standards	IEEE 10BASE-T, IEEE 100BASE-T, IEEE 1000BASE-T, IEEE 100BASE-FX, IEEE 1000BASE-X
RFCs and standard MIBs used	1213, 1231, 1239, 1285, 1493, 1512, 1513, 1643, 1757, 1759, 2021, 2108, 2115, 2127, 2233, 2495, 2515, 2558, 2618, 2737, 2790, 2819, 3592, 3895, 3896, 4188, 4502.
Not for connection to telephone networks	The OneTouch AT analyzer is NOT designed for connection to a telephone network. The OneTouch AT analyzer is NOT designed for connection to an ISDN line. Do not connect to a telephone network or ISDN line except through a regulatory agency compliant computer network modem device.

Wi-Fi Network Interface
Wi-Fi connectivity	802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Data rate	802.11a: 6/9/12/24/36/48/54 Mbps 802.11b: 1/2/5.5/11 Mbps 802.11g: 6/9/12/24/36/48/54 Mbps 802.11n (20 MHz): MCS0-23, up to 216 Mbps 802.11n (40 MHz): MCS0-23, up to 450 Mbps 802.11ac(80 MHz):MCS0NSS1-MCS9NSS3, up to 1.3 Gbps
Operating frequency	2.412 ~ 2.484 GHz (Industrial Scientific Medical Band) 5.170 ~ 5.825 GHz
Security	64/128-Bit WEP Key, WPA, WPA2, 802.1X
Transmit output power1 (tolerance: ±2.0 dBm)	802.11a: 16 dBm ± 2 dBm @ 54 Mbps 802.11b: 20 dBm ± 2 dBm @ 11 Mbps 802.11g: 17 dBm ± 2 dBm @ 54 Mbps 802.11gn HT20: 17 dBm ± 2 dBm @ MCS23 802.11gn HT40: 16 dBm ± 2 dBm @ MCS23 802.11an HT20: 15 dBm ± 2 dBm @ MCS23 802.11an HT40: 15 dBm ± 2 dBm @ MCS23 802.11ac VHT20: 13 dBm +/- 2 dBm @ MCS8NSS3 802.11ac VHT40: 13 dBm +/- 2 dBm @ MCS9NSS3 802.11ac VHT80: 11 dBm +/- 2 dBm @ MCS9NSS3
Receive sensitivity (tolerance: ±2 dBm)	802.11b : -88dBm@11Mbps 802.11g : -74dBm@54Mbps 802.11gn : -69dBm@HT20,MCS23 802.11gn : -67dBm@HT40,MCS23 802.11a : -73dBm@54Mbps 802.11an : -68dBm@HT20,MCS23 802.11an : -66dBm@HT40,MCS23 802.11ac : -64dBm@VHT20, MCS8NSS3 802.11ac : -63dBm@VHT40, MCS9NSS3 802.11ac : -60dBm@VHT80, MCS9NSS3
1. The maximum power setting will vary by channel and according to individual country regulations.

Wi-Fi Antennas
Internal Wi-Fi antennas	Three internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas supporting 3x3 MIMO technology
External directional antenna	Antenna, frequency range 2.4 - 2.5 and 4.9 - 5.9 GHz. Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band.
External antenna connector (external antenna port is receive-only, no transmit)	Reverse SMA

Environmental and Regulatory
Operating temperature	32°F to 122°F (0°C to 50°C)
Battery charging temperature	32°F to 104°F (0°C to 40°C)
Storage temperature	-40°F to 160°F (-40°C to 71°C) -4°F to 122°F (-20°C to 50°C) for periods longer than 1 week
Operating relative humidity (% RH without condensation)	5% to 45% at 32°F to 122°F (0°C to 50°C) 5% to 75% at 32°F to 104°F (0°C to 40°C) 5% to 95% at 32°F to 86°F (0°C to 30°C)
Shock and vibration	Meets the requirements of MIL-PRF-28800F for Class 3 Equipment
Safety	CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2001
Operating altitude	13,123 ft (4,000 m), 10,500 ft (3,200 m) with ac adapter
Storage altitude	39,370 ft (12,000 m)
Pollution degree	2
EMC	EN 61326-1:2006

Cables
Cable types	100 Ω Unshielded Twisted Pair (UTP) LAN cables. 100 Ω Shielded or Screened Twisted Pair (SeTP) LAN cables. TIA Category 3, 4, 5, 5e, and 6. ISO Class C, D, E and F.
Cable length measurement	Measurable cable lengths are from 3 feet (1 meter) to 656 feet (200 meters). Accuracy: ± 6 feet (± 2 meters) or 5%, whichever is greater. Length measurement is based on Nominal Velocity of Propagation (NVP) for CAT 5e cable.

Test Settings
Wired	Speed, duplex, PoE, 802.1X, IPv4 address, IPv6 address, MAC address (port A can be changed by the user), VLAN, Wait for Rx Frame, Enabled Wired
Wi-Fi	Band (2.4 and/or 5 GHz), authorization default, scan or connect, SSID, security, IPv4 address, IPv6 address, MAC address (Wi-Fi adapter can be changed by the user), Transmit Probes, Enable Wi-Fi, signal adjustment, noise floor adjustment
Analysis	SNMP v1/v2, SNMP v3, Slow Discovery

Cloud Tools
Trending	Use (wired port, Wi-Fi port, management port), duration (2 minutes to 1 week),interval (1, 2, 5, 10, 30, 60 minutes), proxy (off/on)
Claim Unit	Claim, proxy (off/on)
Unit Name	Text string
Cloud Remote	On/Off

Maintenance Tools
Management port	User and password security, Active Port (Wired/Wi-Fi), wired port configuration, Wi-Fi port configuration
Language (user interface)	Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish
Date/time, number, length	Select format
Timeout period	Backlight time, power down time
Audible tone	On, off
Display	Brightness
Factory defaults restore	Quick, full (complete internal storage overwrite)
Version Information	Module, platform
Product Registration	Registered, Gold Support
Update Software	Select Source
Options	Enter product key
Export logs	Export to SD card

Network Tests
Receive Rx optical power measurement	accuracy varies by transceiver, typically ± 3.0 dB
Power over Ethernet (PoE)	Single ended testing: User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation The following PSE PoE parameters are measured: Received class PSE type Unloaded voltage(V) Pairs used Loaded voltage(V) Loaded power(W) Inline testing between PSE and PD devices: PoE Negotiation between PSE and PD The following PoE parameters are measured: Pairs used Voltage(V) Current(mA) Power(W)
Infrastructure	Cable, link, PoE, nearest switch, nearest AP, DHCP server, DNS server, gateway
Wired Analysis	hosts, access devices, servers, tools (port scan, add test, path analysis, multiport statistics,devices on port, browse, TELNET/SSH), sorts
Discovery protocols supported	SNMP v1/v2/v3, CDP, EDP, LLDP, ICMP, ARP, FDP
Wi-Fi Analysis	networks, access points, clients, channels, tools (name, authorization, connect, locate, capture), sorts, show active
Services	Ping (ICMP), connect (TCP), web (HTTP), file (FTP), multicast (IGMP), video (RTSP), email (SMTP)
Wired Performance (local to remote)	Remote type: wired peer (upstream and downstream results, wired reflector (roundtrip results) Compatible peer: OneTouch AT Compatible reflector: LinkRunner Duo/Pro/AT Rate: up to 1 Gbps Loss limit % (pass/fail): 0, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50 Duration: 1 s, 2 s, 5 s, 10s , 30 s, 1 m, 2 m, 5 m, 1 h, 6 h, 12 h, 24 h Frame size (byte): 64, 128, 256, 512, 1024, 1280, 1518, RFC 2544 sweep DSCP: user defined Port: user defined Results: actual rate (bps), frames sent, received, lost, latency, jitter Result presentation: table, graph
Wi-Fi Performance (local to remote)	Remote type: wired peer (upstream and downstream results, wired reflector (roundtrip results), wired port of the same OneTouch (upstream and downstream results) Compatible peer: OneTouch AT Compatible reflector: LinkRunner Duo/Pro/AT Rate peer/reflector: up to 500 Mbps Rate This OneTouch: up to 100 Mbps Loss limit % (pass/fail): 0, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50 Duration: 1 s, 2 s, 5 s, 10s , 30 s, 60 s Frame size (byte): 128 to 1518 DSCP: user defined Port: user defined Results: target rate (bps), frames sent, received, lost, loss, actual rate (bps), latency, jitter, out of sequence, ping response, return code, Wi-Fi layer 2 statistics, Wi-Fi layer 1 statistics

Testing Tools
Capture, Wired	Connection: Port A, Ports A and B, Inline Filters: MAC, VLAN, IP, Port, IPv6 File size (MB): 1, 10, 100, 250, 500, 1000, 2000 Frame slice (B): 64, 128, 256, 512, 1024, 1280, 1518, 9600 AutoTest: off, on
Capture, Wi-Fi	Connection: Wi-Fi Filters: channel, channel mode, device, frame type File size (MB): 1, 10, 100, 250, 500, 1000, 2000 Frame slice (B): 64, 128, 256, 512, 1024, 1280, 1518, 9600 File format: ClearSight Analyzer, AirMagnet, WireShark, Qualcomm,pcap AutoTest: off, on
VoIP Analysis	Inline call analysis Protocols: unencrypted SIP and SCCP Traffic statistics monitoring Call log of protocol and conversation events Call quality measurements (packets, dropped, burst, jitter, MOS, R-factor) PoE measurements
Performance Peer	Port number, enable Autostart
Browser	port (management/wired/Wi-Fi)
Telnet/SSH	Username/password (for SSH)
Toner	IntelliTone™, analog 400 Hz, analog 1 kHz
Flash switch port	1s, 2s, 3s
FiberInspector™/Webcam	real time, pause, scale (for fiber), save

File Tools
Profiles	Save, delete, rename, export, import, load
AP authorization	Save, delete, rename, export, import, load
Reports	Save, delete, rename, export, import, view
Screens	Save, delete, rename, export, import, view
