Fluke FEV100/TY1 KIT Test Adapter EV Charging with Type 1 Plug, 87V, Tl224, US
Test Adapter EV Charging w/ Type 1 Plug, 87V, Tl224, US

Order #: FEV100-TY1-KIT

Mfg #: 5348150

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,619.99

Fluke FEV100/TY1 KIT Test Adapter EV Charging with Type 1 Plug, 87V, Tl224, US

Test Adapter EV Charging w/ Type 1 Plug, 87V, Tl224, US

Order #: FEV100-TY1-KIT

Mfg #: 5348150

$1,619.99
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Fluke FEV100/TY1 KIT contains the Fluke product for the electric vehicle charging segment. Designed to test function and safety of electric vehicles charging stations, recommended to comply with SAE-J1772 standards for US stations. Provides critical protective ground testing of the station, GFCI troubleshooting and CP communication stages between vehicle and station. Paired with the 87-V multimeter and test leads to test voltage and maximum charging current.

  • The Fluke FEV100 KIT includes an adaptor that simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.
  • Check that an electric vehicle charging station is correctly wired and that protective earth is functioning properly with the PE pre-test feature.
  • Perform GFCI troubleshooting of an electric vehicle charging station and verify it is functioning properly for safety.
  • Test different charging states of an electric vehicle charging station with the turn of a button. Verify the charging voltage using the 87-V digital multimeter.

Key Attributes

  • Ac Output Voltage: Max. 250 V / 60 Hz, CAT II 300 V
  • Application: A: ± 12V 1kHz; B: 2.74kϛ +9 V / -12V 1kHz; C: 882ϛ +6 V / -12V 1kHz; D: 246ϛ +3V / -12V 1kHz
  • Application: Compatibility with other test and measurement tools, 87V included.
  • Application: Protective grounding test (PE), GFCI test, simulate PE + CP Errors

Key Uses of this Product

  • Simulates electric vehicle and vehicle faults
  • Adapter paired with test and measurement tools
  • Tests mains supply and grounding
  • Tests GFCI ground fault circuit interrupter

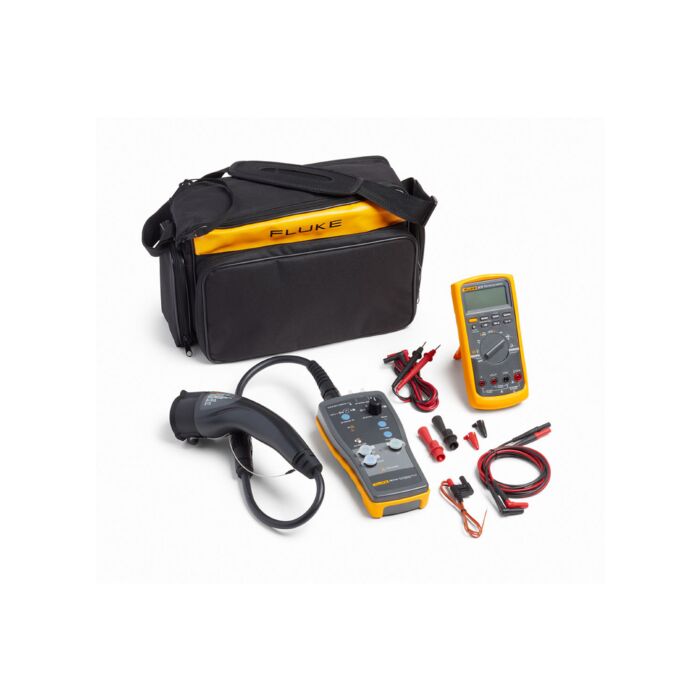

Each Unit Includes

  • FEV100
    • Fluke FEV100/BASIC Test Adapter
    • Fluke FEV-CON/TY1 Type 1 Connector & Cable
    • Soft Carrying Case
    • User Manual
    • 3-year warranty
  • 87V
    • Fluke 87V Industrial Multimeter
    • TL75 Test Leads (TL175 Eur)
    • AC175 Alligator Clips
    • Holster with tilt-leg, test lead storage
    • 80BK Temperature Probe
    • 9V Battery (Installed)
  • TL224
    • One pair (red, black) silicone insulated leads with one straight female coupler on one end and right angled on the other
    • One-year warranty
    • Quick Reference Guide
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke FEV-CON-TSL Tesla Type Plug For Test Adapter EV Charging, US
    Fluke FEV-CON-TSL Tesla Type Plug For Test Adapter EV Charging, US
    Tesla Type Plug For Test Adapter EV Charging, US

    Order #: FEV-CON-TSL

    Mfg #: 5348145

    Availability: Ships in 3-4 weeks
    Special Price $431.59 Regular Price $519.99
Fluke FEV100 Electric Vehicle Charging Station Test Adapter specifications
Input voltage UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal
EV connector (EVC-13) SAE J1772 socket, 16 A (type 1, 5P single-phase)
Internal power consumption 2 W max.
Operating temperature -4 °F to 104 °F (-20 °C to 40 °C)
Storage temperature -4 °F to 122 °F (-20 °C to 50 °C)
Operating humidity range 10 % to 85 % relative humidity non-condensing
Storage relative humidity 0 % to 85 % non-condensing
Operating altitude 6561 ft (2000 m) max.
Dimensions (H x W x D) Approx. 8.66 x 4.33 x 1.77 in (220 x 110 x 45 mm) without cable assembly
Weight Approx. 4.4 lb (2 kg)
Safety standards IEC 61010-1, Pollution Degree 2
IEC 61010-2-030
Measurement category CAT II 250 V
IP protection class IP54
Electromagnetic Compatibility (EMC)
International IEC 61326-1: Basic Electromagnetic Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Functions
CP States A, B, C, D
CP Error "E" On/off
PE Error On/off
GFCI Test Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms
PE Pre-Test (typical) Visible indication >30 V on PE conductor
Outputs (for test purpose only)
Measuring terminals
L1, L2/N, PE
Max. 250 V 50/60 Hz, CAT II 250 V
CP signal output terminals Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE
Fluke 87V Industrial Multimeter Specifications
Voltage DC Maximum voltage 1000 V
Accuracy ±(0.05% + 1)
Maximum resolution 10 µV
Voltage AC Maximum voltage 1000 V
Accuracy ±(0.7% + 2) True RMS
AC bandwidth 20 kHz with low pass filter; 3 dB @ 1 kHz
Maximum resolution 0.1 mV
Current DC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(0.2% + 2)
Maximum resolution 0.01 µA
Current AC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(1.0% + 2) True RMS
Maximum resolution 0.1 µA
Resistance Maximum resistance 50 MΩ
Accuracy ±(0.2% + 1)
Maximum resolution 0.1 Ω
Capacitance Maximum capacitance 9,999 µF
accuracy ±(1% + 2)
Maximum resolution 0.01 nF
Frequency Maximum frequency 200 kHz
Accuracy ±(0.005% + 1)
Maximum resolution 0.01 Hz
Duty cycle Maximum duty cycle 99.9%
Accuracy ±(0.2% per kHz + 0.1%)
Maximum resolution 0.1%
Temperature measurement -200.0 °C - 1090 °C
-328.0 °F - 1994.0 °F
excluding probe
80 BK temperature probe -40.0 °C - 260 °C
-40.0 °F - 500 °F, 2.2 °C or 2% whichever is greater
Conductance Maximum conductance 60.00 nS
Accuracy ±(1.0% + 10)
Maximum resolution 0.01 nS
Diode Range 3 V
Resolution 1 mV
Accuracy ±(2% + 1)
Duty cycle range Accuracy Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature -20 °C to + 55 °C
Storage temperature -40 °C to + 60 °C
Humidity (without condensation) 0% - 90% (0 °C - 35 °C)
0% - 70% (35 °C - 55 °C)
Operating Altitude 2000 m
Safety Specifications
Overvoltage category EN 61010-1 to 1000 V CAT III, 600V CAT IV
Agency approvals CE, CSA, RCM
Mechanical and General Specifications
Size 201 x 98 x 52 mm (with holster)
Weight 355 g
624 g - with holster
Display Digital 6000 counts updates 4/sec.
19,999 counts in high-resolution mode
Analog 32 segments, updates 40/sec
Frequency 19,999 counts, updates 3/sec at > 10 Hz
Warranty Lifetime
Battery Life Alkaline ~400 hours typical, without backlight
Shock 1 Meter drop per IEC 61010-1:2001
Vibration Per MIL-PRF-28800 for a Class 2 instrument
