Product Highlights

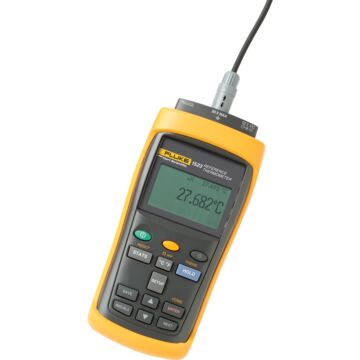

You need accuracy for compliance, product yields, energy savings, and consistent results. The Fluke 1523 and Fluke 1524 use current reversal, a technique used in high-end instruments that eliminates thermal EMFs, for precision temperature measurements. Specifications are guaranteed from -10 ºC to 60 ºC ambient. Special precision resistors and a highly stable reference voltage source keep 1523/24 accuracy virtually insensitive to environmental temperature.
Like all Fluke handheld tools, the 1523 and 1524 Reference Thermometers endure rigorous testing in temperature extremes and under harsh conditions of vibration, so you can take them anywhere you need to go.
An optional magnetic hanger allows you to hang the thermometer for easy viewing while freeing your hands to focus on the job.
See trends graphically on the 1523 and 1524 thermometers' 128x64-backlit LCD display. You can change the graph’s resolution at the touch of a button. Now it’s easy to see when the temperature is stable, without statistics or long delays, or monitor processes over time to verify correct operation.
Document on demand up to 25 readings and associated statistics for easy retrieval. You can view the data through the display or by uploading it to a PC via RS-232 connection and 9940 software, included free. To monitor and log more data over time, use a PC and optional LogWare II software.
RS-232-to-USB adapters are available for those who prefer USB connectors. Battery power lasts at least 20 hours on three AA batteries, or use the dc power adapter for extended periods of measurement. Power saving features can be enabled or disabled for longer battery life or greater convenience.

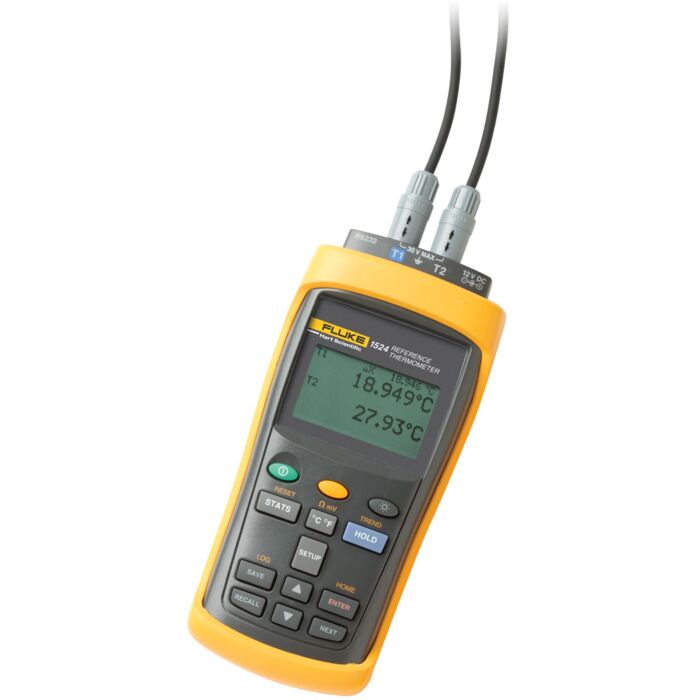

The 1524 Reference Thermometers help you do twice the work in half the time. Two channels and three sensor types and high-speed measurement make you more productive and make model 1524 the one reference thermometer you need to own. It has all the features of the 1523, and it’s a temperature logger too. A real-time clock and memory for 15,000 time and date stamped measurements mean everything you are going to need is in this package. Log up to three times per second, or once every hour or other options in between. Download the temperature logger data to a PC for analysis when you need it.
- Requires optional probe, sold separately
- Measurement Capability Channel 1: 4-wire RTD, Thermistor, Thermocouple, Resistance, Voltage
- Measurement Capability Channel 2: 4-wire RTD, Thermistor, Resistance
- Accuracy to ±0.002 °C with thermistors and ± 0.015°C with PRTs
- Temperature range: –200°C to 2315°C
- Simultaneously measures two channels
- Reads PRTs, thermocouples, and thermistors
- “Plug-and-play” calibration coefficients with SMART LEMO connector
- Trends data graphically
- Documents readings and statistics
- Logs up to 15,000 data points
- Graphing Yes
- Documenting 25 readings
- Auto Logging 15,000 readings
- Statistics Average, Stdev, Max, Min
- Internal real-time clock
- Units °C, °F, Ω, mV
- Environmental conditions for all
- specifications 13°C to 33°C and 0 to 90% RH
- Storage Temperature -20°C to 70°C
- RTD Resistance Accuracy 0.004% + 0.002 Ω percent of reading + floor
- Thermistor Resistance Accuracy 0.01% + 0.5 Ω percent of reading + floor
- Thermocouple Voltage Accuracy 0.005% of reading + 5µV floor
- TC Reference Junction Compensation Accuracy 0.35°C
- TC Measurement Capability Types J, K, T, E, R, S, B, L, U, C, M and N
- Weight (kg) 0.65
- Dimensions WxHxL (mm) 96x200x47
- Computer Communications RS-232 – SCPI protocol
- Baud Rate 2400, 9600
- Power Requirements 3 AA Batteries
- DC universal power supply
- Minimum Battery Life 20 hours
Each Unit Includes
- NIST traceable Certificate of calibration
- Users Guide
- CD-ROM (contains Technical Manual)
- RS-232 serial cable
- Software for computer interface
- Power Supply
