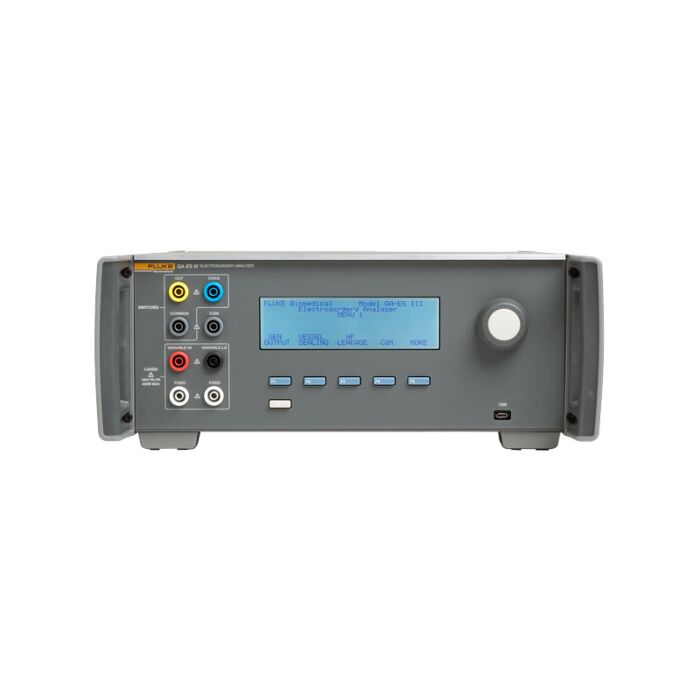

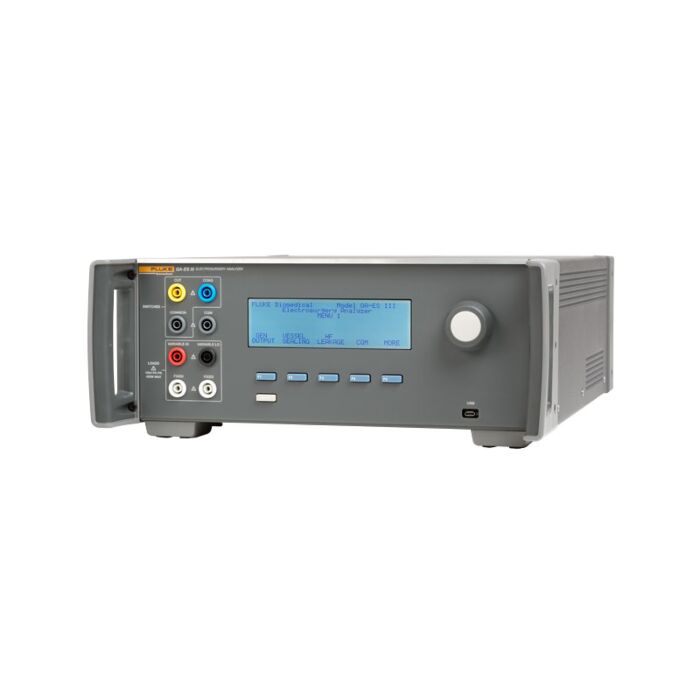

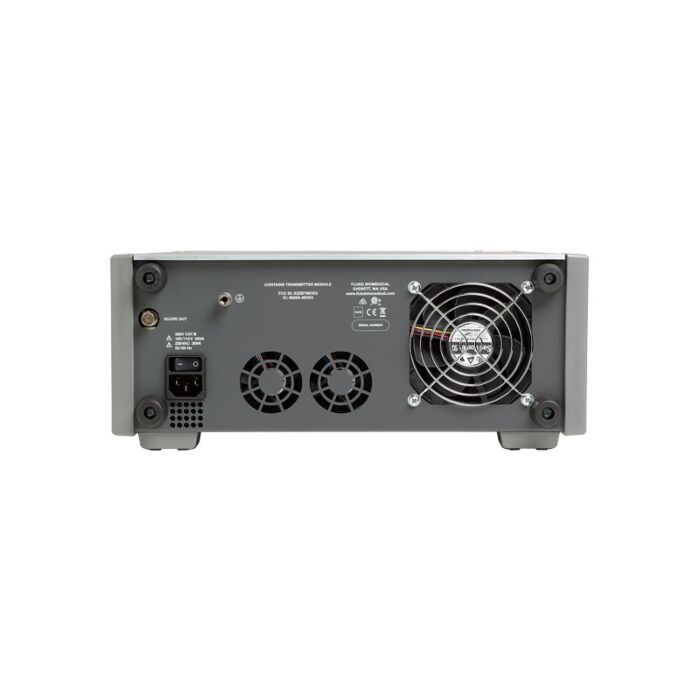

| QA-ES III Electrosurgery Analyzer |
| Physical |
Housing: |
Metal case |
| Size (HxWxL): |
14.5 cm x 35 cm x 47 cm (5.75 in x 13.75 in x 18.5 in) |
| Weight: |
7.5 kg (16.5 lbs) |
| Power |
Power Requirements: |
100 V ac, 115 V ac, 230 V ac, 50 Hz / 60 Hz, universal input
100 V/115 V: 20 VA
230 V: 30 VA |
| User interface |
LCD: |
Monochrome 240 pixels x 64 pixels, 8 lines x 40 characters, white LED backlight |
| Keys: |
6 (1 fixed, 5 soft-defined) and rotary selector knob |
| Environmental specifications |
Operating temperature: |
10 °C to 40 °C (50 °F to 104 °F) |
| Storage temperature: |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity: |
10 % to 90 % non-condensing |
| Altitude: |
2000 m maximum |
| IP rating: |
IEC60529:IP20 |
| Electromagnetic Compatibility (EMC) |
IEC 61326-1: Basic Emissions Classification: |
IEC CISPR11: Group 1, Class A. Group 1 have intentionally generated and/or use conductively coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself. Class A equipment is suitable for use in nondomestic locations and/or directly connected to a low-voltage power supply network |
| USA (FCC): |
Intentional Radiators
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (15.19) Changes or modifications not expressly approved by Fluke could void the user's authority to operate the equipment. (15.21) |
| Safety |
IEC 61010-1: |
Overvoltage category II, pollution degree 2 |
| IEC 61010-2-030: |
Measurement 5,000 V |
| Wireless module listing |
FCC (United States) compliant (Class A): |
FCC ID: X3ZBTMOD3 |
| IC (Industry Canada) compliant: |
IC: 8828A-MOD3 |
| CE (European) certified: |
CE0051 |
| Measurements and tests specifications |
Measures: |
Cut and coag waveforms, monopolar and bipolar outputs |
| Power and current measurements: |
True RMS |
| Bandwidth: |
3 MHz at -3 dB including loads - See User's Manual Supplement for more information |
| Delay time for single measurements: |
0.2 seconds to 4.0 seconds from Foot Switch activation to start of measurement |
| Duty cycle |
Variable load: |
10 seconds on, 30 seconds off, at 100 W, all loads |
| Fixed 200 Ω load: |
10 seconds on, 30 seconds off, at 400 W |
| Generator output measurements |
Oscilloscope Output |
1 V per ampere of input current, typical |
| Footswitch simulations |
Cut and Coag |
| Load resistance |
| Variable: |
0 Ω, 10 Ω, 20 Ω, 25 Ω to 2500 Ω (by 25 Ω), 2500 Ω to 5200 Ω (by 100 Ω) |
| DC Accuracy: |
± 2.5 % |
| Power |
Ranges: |
0.0 W to 99.9 W
100 W to 500 W |
| Accuracy: |
< 10 W: ±5 % + 1 W
&#ge;10 W: ±5 % |
| Current |
RMS: |
0 mA to 5,500 mA |
| Accuracy: |
±(2.5 % of reading + 1 mA) |
| Voltage |
Peak: |
10 kV Peak to Peak |
| Accuracy: |
±(10 % of reading + 50 V) |
| Crest factor: |
1.4 to 16.0 Defined as the ratio of Peak voltage to RMS voltage (Vpk /Vrms), using the larger of the 2 peaks (positive or negative) |
| Vessel sealing measurement |
Loop current, RMS: |
0 mA to 5500 mA |
| Accuracy: |
±(2.5 % of reading + 1mA) |
| HF leakage current |
Fixed load: |
200 Ω |
| V Accuracy: |
± 2.5 % |
| Power rating: |
400 W |
| Additional fixed load: |
200 Ω |
| Current, RMS: |
0 mA to 5500 mA |
| Accuracy: |
±(2.5 % of reading + 1 mA) |
| CQM test (Contact Quality Monitor): |
Resistances: |
0 Ω to 475 Ω (by 1 Ω) |
| Accuracy: |
0 Ω to 10 Ω 0.5 Ω, 11 Ω and above 5 % |
| Power rating: |
0.5 W |
| Auto time interval: |
1 to 5 seconds |
| Communications |
USB device port: |
Micro B connector, full speed |
| Wireless port: |
802.15, Speed: 115,200 baud |
| Memory |
Test records: |
5,000 |
| Non-volatile: |
retained through power cycling |
| Calibration |
Recommended cycle: |
Traceable to the International System of Units (SI) through the appropriate National Metrology Institutes such as NIST or through intrinsic standards. |
