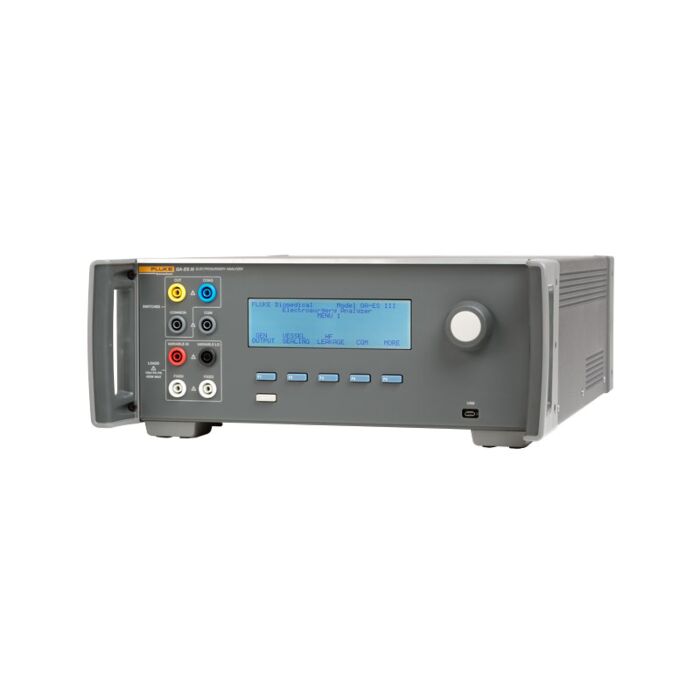

Fluke Biomedical QA-ES III FOR RENT
Electrosurgical Analyzer and Tester
Order #: QA-ES III-RENT1
Mfg #: QA-ES III-RENT1
Call for price
Call for price
Fluke Biomedical QA-ES III FOR RENT
Electrosurgical Analyzer and Tester
Order #: QA-ES III-RENT1
Mfg #: QA-ES III-RENT1
Call for price
Call for price
Availability: Call for Availability
Questions about this product? Speak to an expert
Product Highlights
- Test all critical ESU functions with precise power, current, frequency, crest factor and load resistance ranges
- Collect measurements in single and continuous mode
- Connect wirelessly via Bluetooth for easy record retrieval without interference or limitation by cables and wires*
- Comply to all global standards, including ANSI/ AAMI and IEC**
- All-in-one tool: all hardware and software necessary to complete preventive maintenance and troubleshooting is built in to the unit, eliminating the need to purchase or transport additional cables, leads, switch boxes and RECM box
- User-friendly interface: large buttons and LCD screen guide the user through test sequences
- Memory storage of up to 5,000 test records, eliminating the need to download data after the completion of each preventive maintenance or troubleshooting session
- *Wireless capabilities not available in all countries. Ask your sales representative for more details. **Bipolar leakage testing performed with 200 ohm fixed load.
Test all critical ESU functions with precise power, current, frequency, crest factor and load resistance ranges while ensuring ESU safety.
Ensure the performance and safety of electrosurgical units with simplified testing using the QA ES III electrosurgical analyzer. The QA-ES III is capable of testing all modern high power electrosurgical units with generator output current accuracy as low as ± 2.5 %. Collect all measurements including vessel sealing, contact quality monitor (CQM), high frequency (HF) leakage and output power distribution in single or continuous mode. You don't need to carry additional accessories or cables as the QA-ES III has all hardware and software needed for complete testing. With all-in-one features, including wireless functionality*, the QA-ES III is one of the most user-friendly electrosurgical analyzers on the market today. Additionally, optional Ansur test automation software allows users to create and automatically run tests, capture data, and produce easy-to-read reports. *Wireless capabilities not available in all countries. Ask your sales representative for more details.
10 Best Practices for Electrosurgical Unit Testing
- Continuous operation: Continuous measurement of power, current, peak-to-peak voltage (closed load only), and crest factor
- Single operation: Single measurement after the set delay time of the ESU output of power, current, peak-to-peak voltage (closed load only), and crest factor
- Power distribution: Tests impedance-sensing circuitry in power guarantee functions in new-generation ESU. Applicable parameters - power, current, peak-to-peak voltage (closed load only) and crest factor - can easily be observed during the measurements
- RF leakage current: Provides connections and load configurations to measure HF leakage from both grounded and isolated equipment
- RECQM: Test the return electrode control quality monitoring using the QA-ES internal loads
Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO
| QA-ES III Electrosurgery Analyzer | ||
|---|---|---|
| Physical | Housing: | Metal case |
| Size (HxWxL): | 14.5 cm x 35 cm x 47 cm (5.75 in x 13.75 in x 18.5 in) | |
| Weight: | 7.5 kg (16.5 lbs) | |
| Power | Power Requirements: | 100 V ac, 115 V ac, 230 V ac, 50 Hz / 60 Hz, universal input 100 V/115 V: 20 VA 230 V: 30 VA |
| User interface | LCD: | Monochrome 240 pixels x 64 pixels, 8 lines x 40 characters, white LED backlight |
| Keys: | 6 (1 fixed, 5 soft-defined) and rotary selector knob | |
| Environmental specifications | Operating temperature: | 10 °C to 40 °C (50 °F to 104 °F) |
| Storage temperature: | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity: | 10 % to 90 % non-condensing | |
| Altitude: | 2000 m maximum | |
| IP rating: | IEC60529:IP20 | |
| Electromagnetic Compatibility (EMC) | IEC 61326-1: Basic Emissions Classification: | IEC CISPR11: Group 1, Class A. Group 1 have intentionally generated and/or use conductively coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself. Class A equipment is suitable for use in nondomestic locations and/or directly connected to a low-voltage power supply network |
| USA (FCC): | Intentional Radiators This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (15.19) Changes or modifications not expressly approved by Fluke could void the user's authority to operate the equipment. (15.21) |
|
| Safety | IEC 61010-1: | Overvoltage category II, pollution degree 2 |
| IEC 61010-2-030: | Measurement 5,000 V | |
| Wireless module listing | FCC (United States) compliant (Class A): | FCC ID: X3ZBTMOD3 |
| IC (Industry Canada) compliant: | IC: 8828A-MOD3 | |
| CE (European) certified: | CE0051 | |
| Measurements and tests specifications | Measures: | Cut and coag waveforms, monopolar and bipolar outputs |
| Power and current measurements: | True RMS | |
| Bandwidth: | 3 MHz at -3 dB including loads - See User's Manual Supplement for more information | |
| Delay time for single measurements: | 0.2 seconds to 4.0 seconds from Foot Switch activation to start of measurement | |
| Duty cycle | Variable load: | 10 seconds on, 30 seconds off, at 100 W, all loads |
| Fixed 200 Ω load: | 10 seconds on, 30 seconds off, at 400 W | |
| Generator output measurements | Oscilloscope Output | 1 V per ampere of input current, typical |
| Footswitch simulations | Cut and Coag | |
| Load resistance | ||
| Variable: | 0 Ω, 10 Ω, 20 Ω, 25 Ω to 2500 Ω (by 25 Ω), 2500 Ω to 5200 Ω (by 100 Ω) | |
| DC Accuracy: | ± 2.5 % | |
| Power | Ranges: | 0.0 W to 99.9 W 100 W to 500 W |
| Accuracy: | < 10 W: ±5 % + 1 W &#ge;10 W: ±5 % |
|
| Current | RMS: | 0 mA to 5,500 mA |
| Accuracy: | ±(2.5 % of reading + 1 mA) | |
| Voltage | Peak: | 10 kV Peak to Peak |
| Accuracy: | ±(10 % of reading + 50 V) | |
| Crest factor: | 1.4 to 16.0 Defined as the ratio of Peak voltage to RMS voltage (Vpk /Vrms), using the larger of the 2 peaks (positive or negative) | |
| Vessel sealing measurement | Loop current, RMS: | 0 mA to 5500 mA |
| Accuracy: | ±(2.5 % of reading + 1mA) | |
| HF leakage current | Fixed load: | 200 Ω |
| V Accuracy: | ± 2.5 % | |
| Power rating: | 400 W | |
| Additional fixed load: | 200 Ω | |
| Current, RMS: | 0 mA to 5500 mA | |
| Accuracy: | ±(2.5 % of reading + 1 mA) | |
| CQM test (Contact Quality Monitor): | Resistances: | 0 Ω to 475 Ω (by 1 Ω) |
| Accuracy: | 0 Ω to 10 Ω 0.5 Ω, 11 Ω and above 5 % | |
| Power rating: | 0.5 W | |
| Auto time interval: | 1 to 5 seconds | |
| Communications | USB device port: | Micro B connector, full speed |
| Wireless port: | 802.15, Speed: 115,200 baud | |
| Memory | Test records: | 5,000 |
| Non-volatile: | retained through power cycling | |
| Calibration | Recommended cycle: | Traceable to the International System of Units (SI) through the appropriate National Metrology Institutes such as NIST or through intrinsic standards. |
