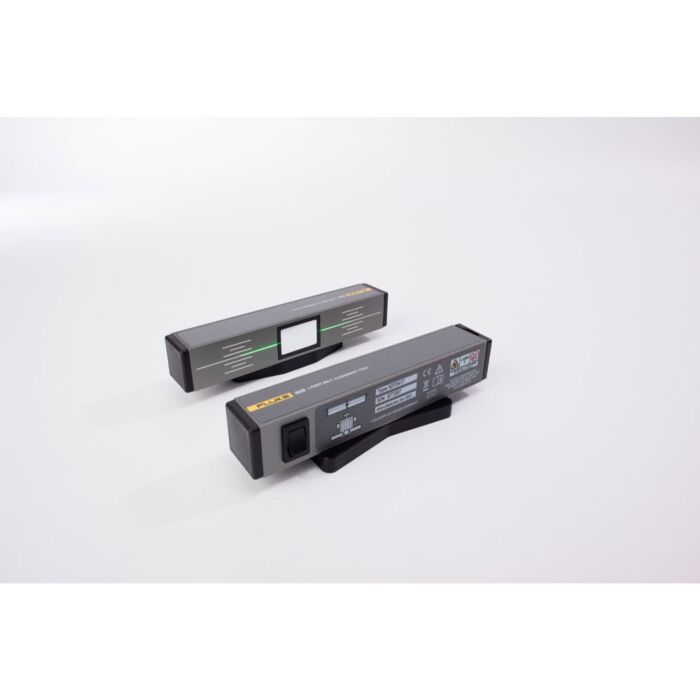

Fluke 835

Laser Belt Alignment Tool (With Reflector)

Order #: FLUKE-835

Mfg #: 5255306

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,684.99

Fluke 835

Laser Belt Alignment Tool (With Reflector)

Order #: FLUKE-835

Mfg #: 5255306

$1,684.99
Availability:
In stock
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Fluke 835 Laser belt alignment tool with reflector for quick, easy belt alignments to keep machines up and running. Reduces pulley, belt wear, and unscheduled downtime. Save money and time from the need to replace bearings and belts. Easy to use and requires only a single operator. Improves the reliability of your equipment

Key Attributes

  • To mount onto most pulley faces or sprocket drive
  • Laser align belts to reduce bearing and belt wear
  • Reliable and accurate readings
  • That wire or straightedge alignment methods cannot match
  • Quick results and instant feedback
  • Align pulleys and get machine back in service: This reduces downtime and repair costs
  • Correct misalignment in pulleys
  • To reduce vibration levels in machines
  • Improve reliability of belt drive machines

EASY TO USE

  • Quick, simple, complete pulley alignment-no training required
  • Efficient one-person operation

PRECISE

  • Reflected laser technology doubles the distance, enhancing accuracy

LIGHT, ROBUST, RUGGED

  • A small tool in your bag to take anywhere

UNIQUE DESIGN

  • No small parts to get lost
  • Strong magnets mount to any size pulley or sprocket

It's a known fact-all rotating machinery are susceptible to misalignment. An aligned pulley system reduces belt wear, power losses, and vibration of machinery, leading to improved performance.

Still using wires and straight edges to ensure your belt-drive machines are properly aligned? You could be losing thousands of dollars per year in replacement bearing and belt costs, hours of unnecessary repair time, and crippling unplanned downtime, not to mention taking years off your machine's useful life.

How Fluke 835 provides fast, easy, accurate pulley alignments:

  • Tailor-made for pulley alignment jobs because it is easy to use and only requires a single operator.
  • The strong magnets on the two units mount onto virtually any pulley face, making it the ideal partner for most pulley alignment jobs.
  • It leverages the proven OPTALIGN® reflected beam principle for maximum angular resolution to generate accurate and reliable readings.
  • Its time-saving method requires no cross-checking and shows offset, vertical, and horizontal angle simultaneously.
  • With four AAA batteries, Fluke 835 provides 6 hours of continuous use.
  • Corrections are quickly made live; genuine alignment is achieved when the transmitted laser line and the corresponding reflected laser line harmonize with the respective reference line.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

835 Laser specifications
Accuracy 0.2°
Laser wavelength 505 - 535 nm (green - more visible)
Output power < 1.0 mW
Classification class 2
Measuring distance 10 m between units
Laser line length 7 m at 5 m distance
Controls Laser ON/OFF rocker switch
Battery type 4 AAA alkaline batteries
Operating time 6 hours
Operating temp -5°C to 40°C
Storage temp -10°C to 70°C
Mounting method Strong magnets
Weight 0.3 kg
Dimensions 37 x 40 x 170 mm
Housing Gray anodized aluminum
835 Reflector specifications
Accuracy 0.2°
Reflector size 21 x 32 mm
Mounting method Strong magnets
Weight 0.27 kg
Dimensions 37 x 40 x 170 mm
Housing Gray anodized aluminum
