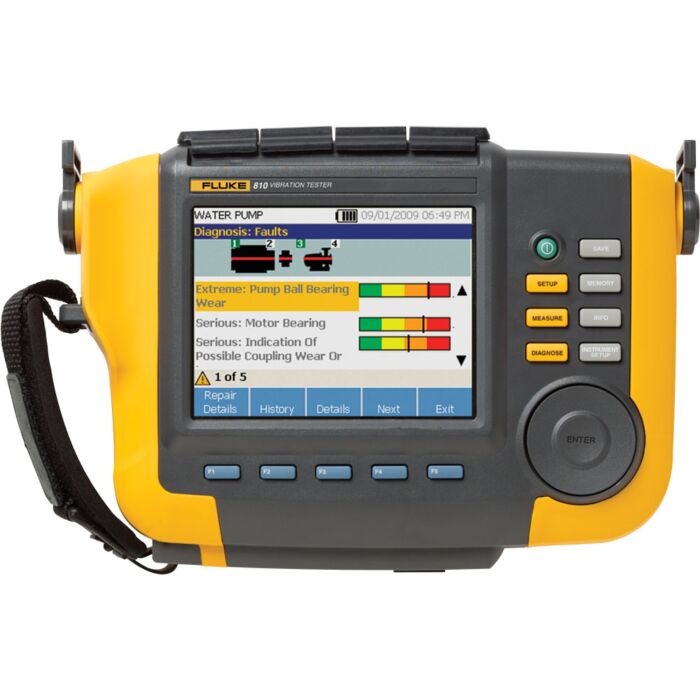

Fluke 810
Order #: 810
Mfg #: 3542635
Fluke 810
Order #: 810
Mfg #: 3542635
Control unplanned downtime, prevent recurring problems, set repair priorities and manage your resources with an entirely new approach to vibration testing. The Fluke 810 helps you locate and diagnose common mechanical problems and prioritize repair actions with no prior machine history.
Product Highlights
- On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
- Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
- Fault severity scale with four severity levels helps you prioritize maintenance work
- Repair recommendations advise technicians on corrective action
- Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
- On-board context sensitive help provides real-time tips and guidance to new users
- Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, and bevel gears
- 2 GB expandable on-board memory provides enough space for your machinery’s data
- Self-test function ensures optimal performance and more time on the job
- Laser tachometer for accurate machine running speed promotes confident diagnoses
- Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
- Viewer PC Software expands data storage and tracking capacity
Use the Fluke 810 Vibration Tester to:
- Troubleshoot problem equipment and understand the root cause of failure
- Survey equipment before and after planned maintenance and confirm the repair
- Commission new equipment and ensure proper installation
- Provide quantifiable proof of equipment condition and drive investment in repair or replacement
- Prioritize and plan repair activities and operate more efficiently
- Anticipate equipment failures before they happen and take control of spare parts inventories
- Train new or less-experienced technicians and build confidence and skill across the team
Each Units Include
- A slip-on protective cover, neck lanyard, CR2032 coin cell battery (average life 300 hours), and a Kestrel certificate of conformity
Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO
- Fluke 810PAAC Power Adapter w/International Plug Set
Order #: 810PA
Mfg #: 3986002
Availability: Ships in 3-4 weeksSpecial Price $107.99 Regular Price $119.99 - Fluke 810SSensor for 810 Vibration Tester
Order #: 810S
Mfg #: 3530828
Availability: Ships in 1-2 weeks$1,824.99 - Fluke 810SMMSensor Magnet Mount for 810 Vibration Tester
Order #: 810SMM
Mfg #: 3530862
Availability:In stockSpecial Price $272.69 Regular Price $302.99 - Fluke 810SMPSensor Mounting Pads for 810 Vibration Tester
Order #: 810SMP
Mfg #: 3530855
Availability: Ships in 3-4 weeksSpecial Price $33.29 Regular Price $36.99 - Fluke 810/+TRNG810 Vibration Tester Plus Training program book
Order #: 810/+TRNG
Mfg #: 4878251
Availability:In stock$11,966.99 - Fluke SBP810Smart Battery Pack for 810 Vibration Tester
Order #: SBP810
Mfg #: 3530843
Availability: Ships in 3-4 weeksSpecial Price $319.49 Regular Price $354.99
- Fluke 830/BTLaser Alignment Tool with Bluetooth
Order #: FLUKE-830
Mfg #: 5237143
Availability:Out of stock$10,289.99 -
- Fluke TI401-PROThermal Imager, 60HZ, 640 x 480, -4 to 1202F
Order #: TI401-PRO
Mfg #: 5085041
Availability: Call for availability$8,972.99 - Fluke Ti300+ 60HZ
Thermal Imager, 60HZ, 320x240 Resolution
Order #: Ti300-60HZ-PLUS
Mfg #: 5127961
Availability:In stock$7,389.99 - Fluke TIS60+ 30HZThermal Imager; GT1; 30 HZ
Order #: TIS60-PLUS-30HZ
Mfg #: 5133399
Availability:In stock$4,049.99
Diagnostic Specifications | ||
Standard Faults | Unbalance, looseness, misalignment and bearing failures | |
Analysis For | Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles | |
Machine Rotational Speed Range | 200 rpm to 12000 rpm | |
Diagnosis Details | Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra | |
Electrical Specifications | ||
Ranging | Automatic | |
A/D Converter | 4 channel, 24 bit | |
Usable Bandwidth | 2 Hz to 20 kHz | |
Sampling | 51.2 Hz | |
Digital Signal Processing Functions | Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging | |
Sampling Rate | 2.5 kHz to 50 kHz | |
Dynamic Range | 128 dB | |
Signal To Noise Ratio | 100 dB | |
FFT Resolution | 800 lines | |
Spectral Windows | Hanning | |
Frequency Units | Hz, orders, cpm | |
Amplitude Units | in/sec, mm/sec, VdB (US), VdB* (Europe) | |
Non-volatile Memory | SD micro memory card, 2 GB internal + user accessible slot for additional storage | |
General Specifications | ||
Dimensions (H x D x W) | 18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in) | |
Weight (With Battery) | 1.9 kg (4.2 lb) | |
Display | ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight | |
Input/Output Connections | Triaxial sensor connection | 4 pin M12 connector |
Single axis sensor connection | BNC connector | |
Tachometer Connection | Mini DIN 6 pin connector | |
PC Connection | Mini ‘B’ USB (2.0) connector | |
Battery | Battery type | Lithium-ion, 14.8 V, 2.55 Ah |
Battery charging time | Three hours | |
Battery discharge time | Eight hours (under normal conditions) | |
AC Adapter | Input voltage | 100 VAC to 240 VAC |
Input frequency | 50/60 Hz | |
Operating System | WinCE 6.0 Core | |
Language Support | English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish | |
Warranty | Three-years | |
Environmental Specifications | ||
Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
Operating Humidity | 10% to 95% RH (non-condensing) | |
Agency Approvals | CHINA RoHS, CSA, CE, C TICK, WEEE | |
Electromagnetic Compatibility | EN 61326-1:2006, EN 61010:1:2001 2nd ed. | |
Sensor Specifications | ||
Sensor Type | Accelerometer | |
Sensitivity | 100 mV/g (±5%, 25°C) | |
Acceleration Range | 80 g peak | |
Amplitude Nonlinearity | 1% | |
Frequency Response | Z | 2 - 7,000 Hz ±3dB |
X, Y | 2 - 5,000 Hz ±3dB | |
Power Requirement (IEPE) | 18 VDC to 30 VDC, 2 mA to 10 mA | |
Bias Output Voltage | 12 VDC | |
Grounding | Case grounded | |
Sensing Element Design | PZT ceramic / shear | |
Case Material | 316L stainless steel | |
Mounting | 10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength) | |
Output Connector | 4-Pin, M12 | |
Mating Connector | M12 - F4D | |
Non-volatile Memory | TEDS 1451.4 compatible | |
Vibration Limit | 500 g peak | |
Shock Limit | 5000 g peak | |
Electromagnetic Sensitivity, Equivalent g | 100 μg/gauss | |
Sealing | Hermetic | |
Temperature Range | -50°C to 120°C (-58°F to 248°F) ±7% | |
Warranty | One-year | |
Tachometer Specifications | ||
Dimensions (D x W) | 2.86 x 12.19 cm (1.125 x 4.80 in) | |
Weight | 96 g (3.4 oz) with cable | |
Power | Powered by 810 Vibration Tester | |
Detection | Laser Diode Class 2 | |
Range | 6.0 to 99,999 rpm | |
Accuracy | 6.0 to 5999.9 rpm | ±0.01% and ±1 digit |
5999.9 to 99999 rpm | ±0.05% and ±1 digit | |
Resolution | 0.1 rpm | |
Effective Range | 1 cm to 100 cm (0.4 in to 39.27 in) | |
Response Time | 1 second (> 60 rpm) | |
Controls | Measure on/off transparent button | |
Interface | 6 Pin Mini DIN | |
Cable Length | 50 cm (19.586 in) | |
Warranty | One-year | |
Tachometer Accessories | Reflective tape | 1.5 x 52.5 cm (0.59 x 20.67 in) |
Viewer PC Software | ||
Minimum Hardware Requirements | 1 GB RAM | |
Operating System Requirements | Windows XP, Vista |
