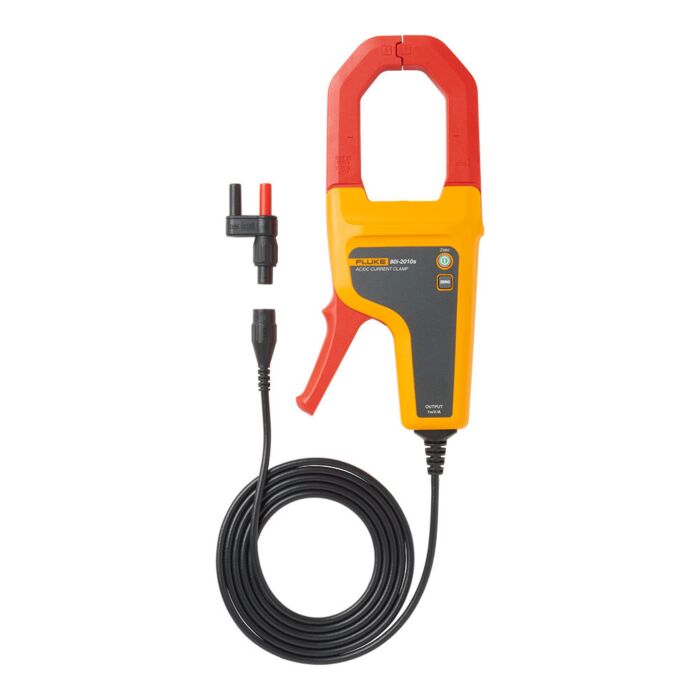

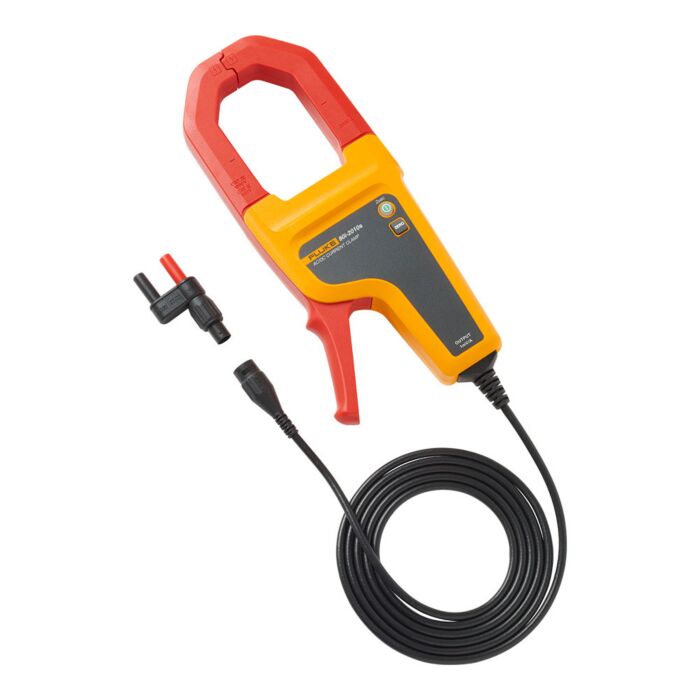

Fluke 80I-2010S 2000A AC/DC Current Clamp
2,000A AC/DC Current Clamp
Order #: 80I-2010S
Mfg #: 5125579
$1,209.99
Availability: Ships in 3-4 weeks
Product Highlights
The Fluke 80i-2020s AC/DC Current Clamp is an open jaw current sensor with 2000A range and 1% accuracy.
- 2,000A range
- Measure safely-safety rated for CAT III 1000V, CAT IV 600V environments
- AC Output Current: AC + DC Current
General Specifications | |
---|---|
Modules | 80I-2010S |
Dimensions | 110 mm x 270 mm x 46mm |
Weight | 0.710 kg (1.6 lbs), including battery |
Output Cable | 1.5 m (60 in) Shielded Coaxial cable with BNC plug |
Maximum Conductor Size | 52.0 mm (2.05 in) |
Maximum Jaw Opening | 81.5 mm |
Output to Zero | Auto adjustment with Zero button |
Temperature Operating | -10 °C to 50 °C (14 °F to 122 °F) |
Storage (battery removed) | -30 °C to +60 °C (-22 °F to +140 °F) |
Operating Humidity | ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C) |
Altitude Operating | 2,000 m (6560 ft) |
Storage | 12,000 m (40,000 ft) |
Demagnetize Clamp | Open and close the Clamp jaws several times with soft click, use of the clamp on uninsulated conductors is limited to 1000 Vac rms or DC and frequencies 1 kHz or less. |
Safety | IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V /CAT IV 600 V |
Ingress Protection | IEC 60529, IP40 |
Power Supply Type | 2 x AA alkaline battery, IEC LR6 |
Battery Life | 150 hours (typically) |
Low battery indicator | Yes |
Electrical Specifications | |
---|---|
Current Range | 2000 A ac rms, ± 2000 A dc |
Output Sensitivity | 1 mV/A |
Accuracy | ± 0.8 % of reading ± 0.2 % of range |
Bandwidth for Accuracy Specification | DC to 400 Hz |
Load impedance | >1 MΩ and |
Frequency Response (small signal) | DC to 20 kHz (-3 dB) |
Temperature Coefficient | 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C |
Working Voltage | 1000 V AC RMS or DC |
