Used Fluke 754 Multifunction Documenting Calibrator

Order # 754-USED

$7,999.00

In stock

Also Available:

New Rental

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Fluke 754 Overview

Interested but want to see more? Additional images are available. Contact Tanscat with the unit asset # to request additional images.

The 754 is everything you needed and wished for in the 744 and more! HART communication capability is combined to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

The 754 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You'll fall in love with the new improved graphical screen, Li-Ion battery for longer life, USB port and new accessories to complete the package.

For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.

HART Capabilities

The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers most of the communication capabilities of a HART communicator.

Fluke 754 Highlights

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke pressure modules
Advanced features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more

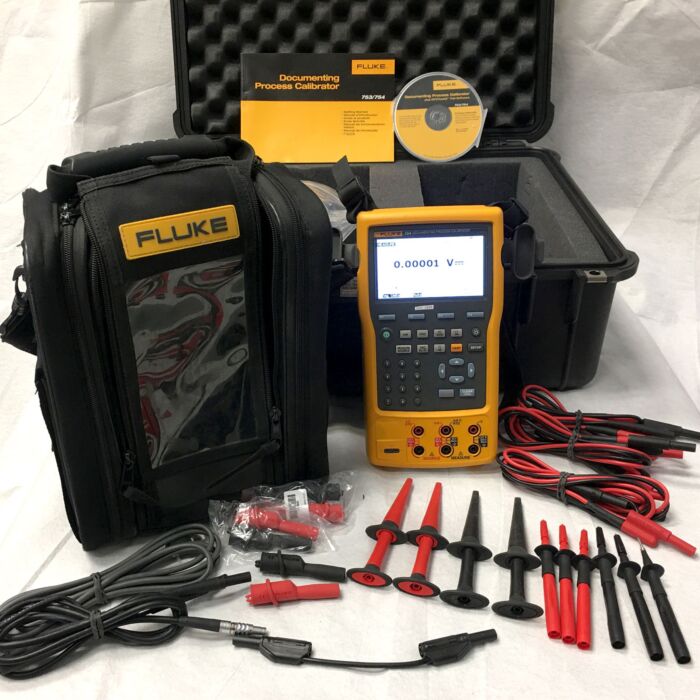

Each Used Fluke 754 Includes

Soft Carrying Case
Three sets of stackable test leads
Three sets of TP220 test probes with three sets of "extended tooth" alligator clips
Two sets AC280 hook clips
BP7240 Li-ion battery pack
BC7240 battery charger
C799 field soft case
USB communication cable
Getting started guide
Instruction manual on CDROM
DPCTrack™ 2 sample software
HART communication cable

Technical Resources

Brochure - Oil and Gas Downstream
Brochure - Oil and Gas Midstream
Fluke 753 / 754 Documenting Process Calibrator - User's Manual
Fluke 753 / 754 Documenting Process Calibrator - User's Manual Supplement
Fluke 753 / 754 Documenting Process Calibrator - DPC/TRACK User's Manual
Fluke 753 / 754 Documenting Process Calibrator - DPC/Track2 User's Manual
Fluke 753 / 754 Documenting Process Calibrator - Calibration Manual
Fluke 753 / 754 Documenting Process Calibrator - Calibration Manual Supplement
Fluke 753 / 754 Documenting Process Calibrator - Getting Started
Fluke 753 / 754 Documenting Process Calibrator - CE Declaration of Conformity
Fluke 753 / 754 Documenting Process Calibrator - Statement of Memory Volatility
Fluke 753 / 754 Documenting Process Calibrator - DPC/TRACK Installation Guide
Fluke 753 / 754 Documenting Process Calibrator - DPC/Track2 Getting Started
Fluke 754 Documenting Process Calibrator - Hart User's Guide
Application - Automated Field Calibration for the Oil and Gas Industry
Application - Calibrating Pressure Switches with a DPC
Application - HART Transmitter Calibration
Application - Transmitter Calibration
Application - Eliminate Sensor Errors in Loop Calibrations using the Fluke 754 with a Dry Block Calibrator
Fluke 753 / 754 Documenting Process Calibrator - Technical Data

Specifications

Measurement Accuracy

	Range/Resolution	1 Year	2 Years
Voltage DC	100.000 mV	0.02% + 0.005 mV	0.03% + 0.005 mV
	3.00000 V	0.02% + 0.00005 V	0.03% + 0.00005 V
	30.0000 V	0.02% + 0.0005 V	0.03% + 0.0005 V
	300.00 V	0.05% + 0.05 V	0.07% + 0.05 V
Voltage AC	3.000 V (40 Hz to 500 Hz) / 0.001 V	0.5% + 0.002 V	1.0% + 0.004 V
	30.00 V (40 Hz to 500 Hz) / 0.01 V	0.5% + 0.02 V	1.0% + 0.04 V
	300.0 V (40 Hz to 500 Hz) / 0.1 V	0.5% + 0.2 V	1.0% + 0.2 V
Current DC	30.000 mA	0.01% + 5 uA	0.015% + 7 uA
Current DC	110.00 mA	0.01% + 20 uA	0.015% + 30 uA
Resistance	10.000 Ω	0.05% + 50 mΩ	0.07% + 70 mΩ
	100.00 Ω	0.05% + 50 mΩ	0.07% + 70 mΩ
	1.0000 kΩ	0.05% + 500 mΩ	0.07% + 0.5 Ω
	10.000 kΩ	0.1% + 10 Ω	0.15% + 15 Ω
Frequency	1.00 to 110.00 Hz / 0.01 Hz		0.05 Hz
	110.1 to 1100.0 Hz / 0.1 Hz		0.5 Hz
	1.101 to 11.000 kHz / 0.001 kHz		0.005 kHz
	11.01 to 50.00 kHz / 0.01 kHz		0.05 kHz

Source Accuracy

		1 Year	2 Years
Voltage DC	100.000 mV	0.01% + 0.005 mV	0.015% + 0.005 mV
	1.00000 V	0.01% + 0.00005 V	0.015% + 0.0005 V
	15.0000 V	0.01% + 0.0005 V	0.015% + 0.0005 V
Current DC	22.000 mA (source)	0.01% + 0.003 mA	0.02% + 0.003 mA
Current DC	Current sink (simulate)	0.02% + 0.007 mA	0.04% + 0.007 mA
Resistance	10.000 Ω	0.01% + 10 mΩ	0.015% + 15 mΩ
	100.00 Ω	0.01% + 20 mΩ	0.015% + 30 mΩ
	1.0000 kΩ	0.02% + 0.2 Ω	0.03% + 0.3 Ω
	10.000 kΩ	0.02% + 3 Ω	0.03% + 5 Ω
Frequency	0.1 to 10.99 Hz		0.01 Hz
	0.01 to 10.99 Hz		0.01 Hz
	11.00 to 109.99 Hz		0.1 Hz
	110.0 to 1099.9 Hz		0.1 Hz
	1.100 to 21.999 kHz		0.002 kHz
	22.000 to 50.000 kHz		0.005 kHz

Technical Data


Data log functions	Measure functions	Voltage, current, resistance, frequency, temperature, pressure
	Reading rate	1, 2, 5, 10, 20, 30, or 60 readings/minute
	Maximum record length	8000 readings (7980 for 30 or 60 readings/minute)
	Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
		Rate	4 steps/second
		Trip detect	Continuity or voltage (continuity detection not available when sourcing current)
Loop power function	Voltage	Selectable, 26 V
	Accuracy	10%, 18 V minimum at 22 mA
	Maximum current	25 mA, short circuit protected
	Maximum input voltage	50 V DC
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
	Manual step	Selectable step, change with arrow buttons
	Autostep	Fully programmable for function, start delay, stepvalue, time per step, repeat

Environmental Specifications


Operating temperature	-10°C to +50°C
Storage temperature	-20°C to +60°C
Dust/water resistance	Meets IP52, IEC 529
Operating altitude	3000 m above mean sea level (9842 ft)

Safety Specifications


Agency approvals	CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993

Mechanical and General Specifications


Size	136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight	1.2 kg (2.7 lb)
Batteries	Internal Battery Pack Li-ion: 7.2V,4400mAh, 30 Wh
Battery life	>8 hours typical
Battery replacement	Replace without opening calibrator; no tools required
Side port connections	Pressure module connector
	USB Connector to interface to your PC
	Digital instrument (HART) connector
	Connection for optional battery charger/eliminator
Data storage capacity	1 week of calibration procedures results
90 day specifications	The standard specification interval for the 750 Seriesare 1 and 2 years.
	Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
	Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.

Temperature, Resistance Temperature Detectors


Degrees or % of reading - Type (α)	Range °C	Measure °C1
		1 year	2 year
100 Ω Pt (385)	-200 to 100	0.07°C	0.14°C
100 Ω Pt (385)	100 to 800	0.02% + 0.05°C	0.04% + 0.10°C
200 Ω Pt (385)	-200 to 100	0.07°C	0.14°C
200 Ω Pt (385)	100 to 630	0.02% + 0.05°C	0.04% + 0.10°C
500 Ω Pt (385)	-200 to 100	0.07°C	0.14°C
500 Ω Pt (385)	100 to 630	0.02% + 0.05°C	0.04% + 0.10°C
1000 Ω Pt (385)	-200 to 100	0.07°C	0.14°C
1000 Ω Pt (385)	100 to 630	0.02% + 0.05°C	0.04% + 0.10°C
100 Ω Pt (3916)	-200 to 100	0.07°C	0.14°C
100 Ω Pt (3916)	100 to 630	0.02% + 0.05°C	0.04% + 0.10°C
100 Ω Pt (3926)	-200 to 100	0.08°C	0.16°C
100 Ω Pt (3926)	100 to 630	0.02% + 0.06°C	0.04% + 0.12°C
10 Ω Cu (427)	-100 to 260	0.2°C	0.4°C
120 Ω Ni (672)	-80 to 260	0.1°C	0.2°C
Source current	Source °C		Allowable current2
	1 year	2 year
1 mA	0.05°C	0.10°C	0.1 mA to 10 mA
1 mA	0.0125% + 0.04°C	0.025% + 0.08°C	0.1 mA to 10 mA
500 μA	0.06°C	0.12°C	0.1 mA to 1 mA
500 μA	0.017% + 0.05°C	0.034% + 0.10°C	0.1 mA to 1 mA
250 μA	0.06°C	0.12°C	0.1 mA to 1 mA
250 μA	0.017% + 0.05°C	0.034% + 0.10°C	0.1 mA to 1 mA
150 μA	0.06 C	0.12 C	0.1 mA to 1 mA
150 μA	0.017% + 0.05°C	0.034% + 0.10°C	0.1 mA to 1 mA
1 mA	0.05°C	0.10°C	0.1 mA to 10 mA
1 mA	0.0125% + 0.04°C	0.025% + 0.08°C	0.1 mA to 10 mA
1 mA	0.05°C	0.10°C	0.1 mA to 10 mA
1 mA	0.0125% + 0.04°C	0.025% + 0.08°C	0.1 mA to 10 mA
3 mA	0.2°C	0.4°C	0.1 mA to 10 mA
1 mA	0.04°C	0.08°C	0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms

Temperature, Thermocouples


Type	Source °C	Measure °C		Source °C
		1 year	2 years	1 year	2 years
E	-250 to -200	1.3	2	0.6	0.9
	-200 to -100	0.5	0.8	0.3	0.4
	-100 to 600	0.3	0.4	0.3	0.4
	600 to 1000	0.4	0.6	0.2	0.3
N	-200 to -100	1.0	1.5	0.6	0.9
	-100 to 900	0.5	0.8	0.5	0.8
	900 to 1300	0.6	0.9	0.3	0.4
J	-210 to -100	0.6	0.9	0.3	0.4
	-100 to 800	0.3	0.4	0.2	0.3
	800 to 1200	0.5	0.8	0.3	0.3
K	-200 to -100	0.7	1	0.4	0.6
	-100 to 400	0.3	0.4	0.3	0.4
	400 to 1200	0.5	0.8	0.3	0.4
	1200 to 1372	0.7	1	0.3	0.4
T	-250 to -200	1.7	2.5	0.9	1.4
	-200 to 0	0.6	0.9	0.4	0.6
	0 to 400	0.3	0.4	0.3	0.4
B	600 to 800	1.3	2	1	1.5
	800 to 1000	1	1.5	0.8	1.2
	1000 to 1820	0.9	1.3	0.8	1.2
R	-20 to 0	2.3	2.8	1.2	1.8
	0 to 100	1.5	2.2	1.1	1.7
	100 to 1767	1	1.5	0.9	1.4
S	-20 to 0	2.3	2.8	1.2	1.8
	0 to 200	1.5	2.1	1.1	1.7
	200 to 1400	0.9	1.4	0.9	1.4
	1400 to 1767	1.1	1.7	1	1.5
C	0 to 800	0.6	0.9	0.6	0.9
	800 to 1200	0.8	1.2	0.7	1
	1200 to 1800	1.1	1.6	0.9	1.4
	1800 to 2316	2	3	1.3	2
L	-200 to -100	0.6	0.9	0.3	0.4
	-100 to 800	0.3	0.4	0.2	0.3
	800 to 900	0.5	0.8	0.2	0.3
U	-200 to 0	0.6	0.9	0.4	0.6
U	0 to 600	0.3	0.4	0.3	0.4
BP	0 to 1000	1	1.5	0.4	0.6
	1000 to 2000	1.6	2.4	0.6	0.9
	2000 to 2500	2	3	0.8	1.2
XK	-200 to 300	0.2	0.3	0.2	0.5
XK	300 to 800	0.4	0.6	0.3	0.6
