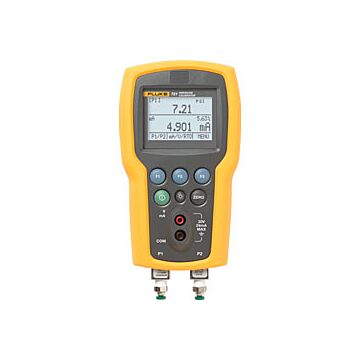

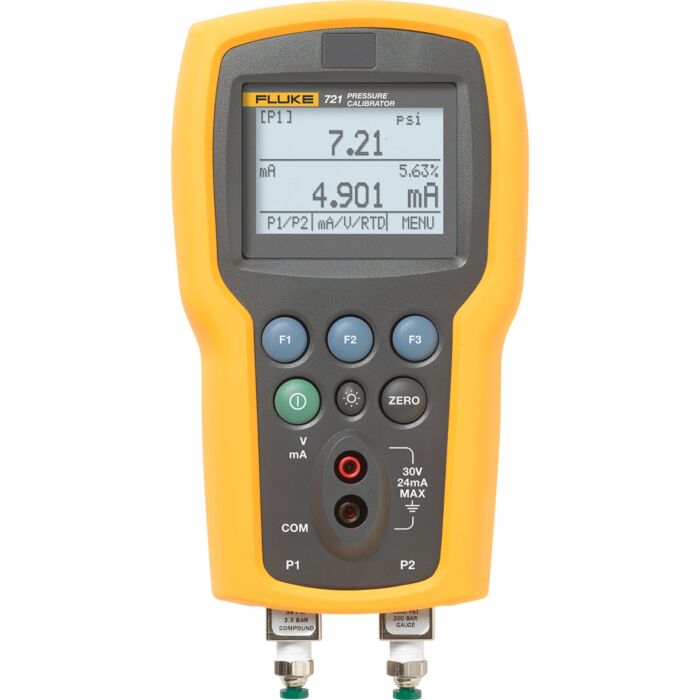

Fluke 721-1650 Dual Sensor Pressure Calibrator, 16PSIG/5000PSIG

Order # 721-1650 | Mfg # 4353486
$3,700.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • The 721 can be configured by selecting either a 16 PSI
  • (1.1 bar) low pressure sensor then add a hifh pressure range: 5000 psi
  • Ideal for gas flow calibration (custody transfer) applications
  • Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
  • Pt100 RTD input for temperature measurement, (probe
  • optional)
  • Measures 4 to 20 mA signals
  • Internal 24 V loop power supply can power a transmitter
  • under test
  • Measure up to 30 V dc, check 24 V loop power supplies
  • Extend pressure measurement range with connection to external 700 series pressure modules (29 ranges)
  • Large backlit graphic display can display up to three inputs simultaneously
  • Store five instrument setups for recall and use

Each Unit Includes

  • Soft case
  • Four (4) AA batteries
  • Manual
  • Traceable calibration certificate
  • Test leads
