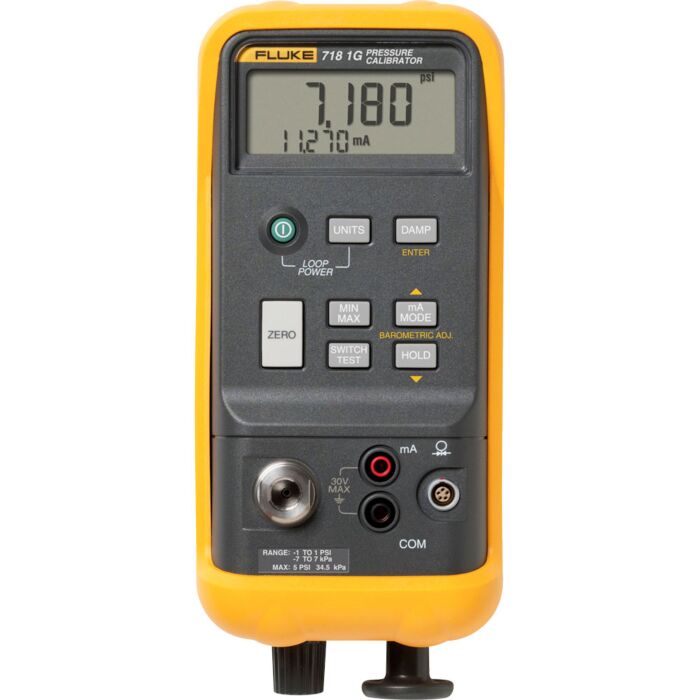

Fluke 718-1G Pressure Calibrator, 1PSIG
Order #: 25450CL
Mfg #: 2547148
Overview
The complete solution to pressure calibration
The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
Product Highlights
- Error % Calculation for Quicker Pass/Fail Decision Making in the Field
- Best in Class mA Accuracy (0.015%) for Better Measurement Confidence and Workload Coverage
- Min/Max/Hold Functions Capture Changing Measurements
- Switch Test Feature for Quicker and More Accurate Test Results
- 1, 30, 100, and 300, 718 Pressure Ranges for Better Workload Coverage
- Nine 717 Pressure Ranges from 0 to 1 PSI to 5,000 PSI
- 700PXX Pressure Modules Extend Measurement Ranges
- Supported Pressure Units; psi, in. H20 (4 °C), in. H20 (20 °C), cm H20 (4 °C) cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm
Each Unit Includes
- Protective Yellow Holster
- TL75 Test Leads & AC720 Test Clips
- User Manual
Webinars
Differential Pressure Meter Gas Custody Transfer Calibration Webinar with Fluke
- Fluke TL75 Hard Point Test Lead SetHard Point Test Lead Set
Order #: TL75
Mfg #: 855705
Availability:In stockSpecial Price $30.70 Regular Price $36.99 - Fluke 700TTH5K Premium Pressure Transmitter Test Hose KitPremium Pressure Transmitter Test Hose Kit
Order #: 700TTH5K
Mfg #: 4623323
Availability:In stockSpecial Price $616.68 Regular Price $742.99 - Fluke TL238 SureGrip Test Lead Set for High Energy EnvironmentsSureGrip Test Lead Set for High Energy Environments
Order #: TL238
Mfg #: 2132831
Availability:In stockSpecial Price $95.44 Regular Price $114.99 - Fluke TLK-220 US SureGrip Accessory Set with Meter Carrying CaseUS SureGrip Accessory Set w/Meter Carrying Case
Order #: TLK-220
Mfg #: 2097010
Availability:In stockSpecial Price $181.76 Regular Price $218.99 - Fluke 750P07 Pressure Module, 0-500PSIPressure Module,0-500PSI
Order #: 750P07
Mfg #: 4352360
Availability:In stock$2,224.99 - Fluke 700HTH Hydraulic Test HoseHydraulic Test Hose
Order #: 700HTH-1
Mfg #: 2811795
Availability: Ships in 1-2 weeksSpecial Price $668.14 Regular Price $804.99
Technical Specifications | |
Measure pressure | (Internal sensor) |
Accuracy | 0.025% full scale |
Functions | Zero, min/max, hold, damp |
Dry air, non-corrosives only | |
Fluke 718 1G | |
Range | -1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa) |
Resolution | 0.0001 psi, 0.001 mbar, 0.0001 kPa |
Over pressure | 5x Full Scale |
Functions | Zero, Min, Max, Hold, Damp |
Fluke 718 30G | |
Range | -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) |
Resolution | 0.001 psi, 0.1 mbar, 0.01 kPa |
Over pressure | 5x Full Scale |
Functions | Zero, Min, Max, Hold, Damp |
Fluke 718 100G | |
Range | -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) |
Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
Over pressure | 2x Full Scale |
Functions | Zero, Min, Max, Hold, Damp |
Fluke 718 300G | |
Range | -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa) |
Resolution | 0.01 psi, 1 mbar, 0.1 kPa |
Over pressure | 375 psi 25 bar |
Functions | Zero, Min, Max, Hold, Damp |
Fluke 718 series via 700 Series Pressure Modules | |
Range | 29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs |
Resolution | Per pressure module specs |
Accuracy | To 0.025% of full span, per pressure module specs |
Functions | Zero, Min, Max, Hold, Damp |
Media compatibility per pressure module specs | |
Fluke 718 Series Via Built in Pump | |
Range | -12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cmH20 (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm |
Loop power range | 24 V DC |
Accuracy | ±10% |
Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V | |
mA Measure | |
Range | 0 mA to 24 mA |
Resolution | 0.001 mA |
Accuracy | 0.015% + 1 count |
General Specifications | |
Maximum voltage | 30 volts (non-operating) |
Temperature | -40°C to 60°C |
Operating temperature | -10°C to 55°C |
Relative humidity | 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C) |
Operating altitude | 3,000 M max |
Shock | 1 M drop test |
Vibration | Random, 2 g, 5 Hz – 500 Hz |
Safety | CSA C22.2 No. 1010.1: 1992 |
EMC | EN50082-1: 1992 and EN55022: 1994 Class B |
Size | 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in) |
Weight | 992 g (35 oz) |
Power, battery life | 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
Battery life | 4 to 20 hours typical, depending on functions used |
Warranty | Three years (one year on pressure pump in Fluke 718) |
Display | LCD, 5 digit pressure and current simultaneous |
