Fluke 3310-PR-TF-II, 5000A Thin Flex Current Probe, 24"

Order # 3310-PR-TF-II | Mfg # 4531778
$2,409.99
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

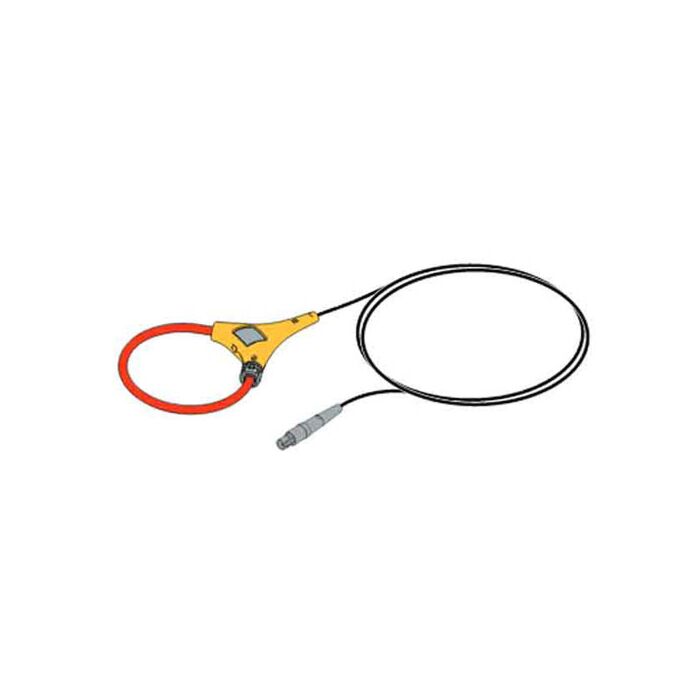

The Fluke 3310-PR-TF-II 5000A Flex Thin Flex Current Probe is an AC current probe utilizing the Rogowski principle. The Fluke 3310PRTFII Probe is designed for use with the Fluke 1750 Power Recorder and measures current from very low frequencies up to the 50th harmonic of a 50/60 Hz power supply. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and around large conductors. It includes a 24 inch long connection cable.

  • Cable Length: 24 inches
  • Measurement Range: up to 5000 A (with a crest factor ≤3)
  • Frequency Range: 40 Hz to 5 kHz
  • Accuracy (at 25 C): +/-1 % of reading
  • Linearity (10 % to 100 % of range): +/-0.2 % of reading per C
  • Temperature Coefficient: +/-0.05 % of reading per C
  • Position Sensitivity (w/ cable >25 mm from coupling): +/-2 % of reading
  • External Field (w/ cable >200 mm from head): +/-1 % of reading
