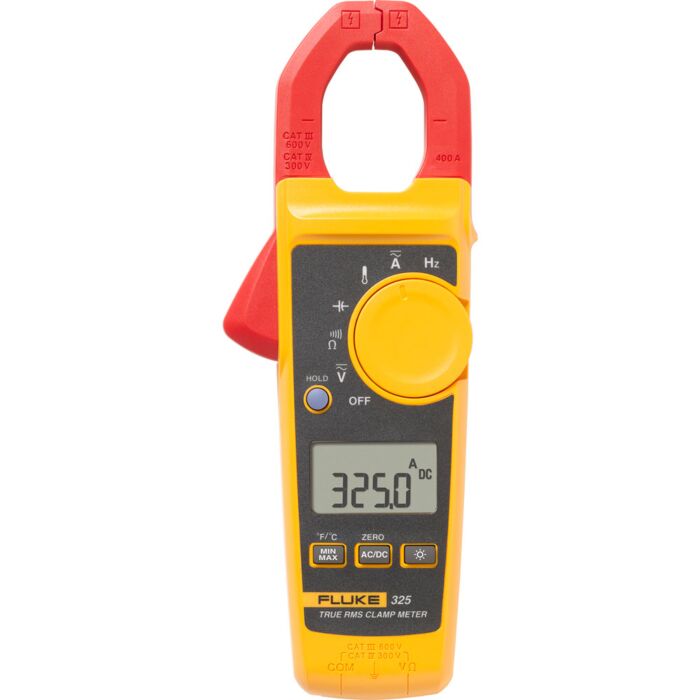

Fluke 325
Order #: 325
Mfg #: 5065866

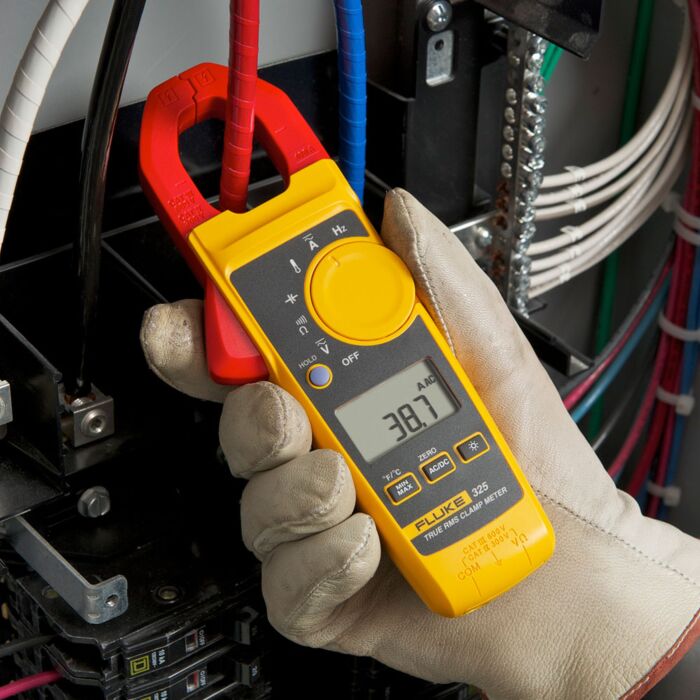

The Fluke 323, 324, and 325 Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.
Overview
True RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The 323, 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke 325 also offers DC current and frequency measurements.
Product Highlights
- 400 A ac current measurement (ac and dc
- current)
- 600 V ac and dc voltage measurement
- True-rms ac voltage and current for accurate measurements on non-linear signals
- Resistance measurement to up to 40 kO with continuity detection
- Temperature and capacitance measurement
- Frequency measurement
- Slim, ergonomic design
- Large, easy to read backlight display
- CAT IV 300 V/CAT III 600 V safety rating
- Hold button
- Two-year warranty
- Soft carrying case

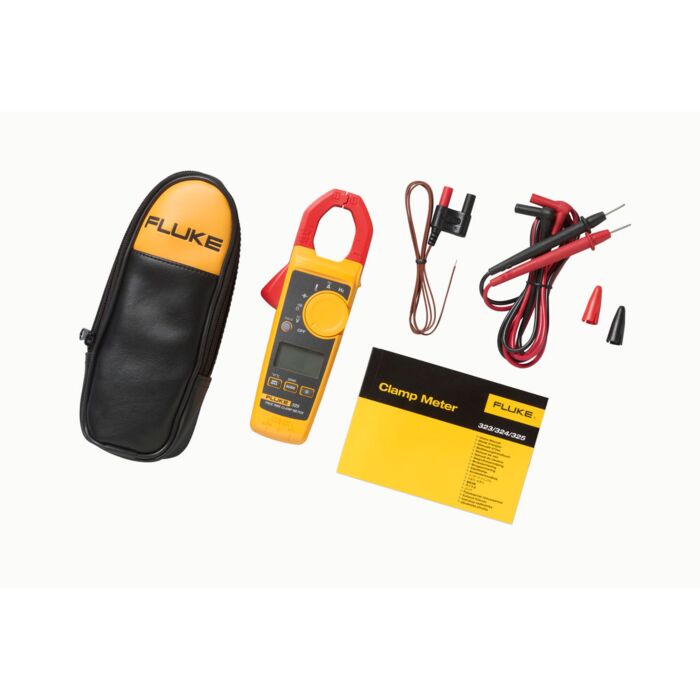

Each Unit Includes
- Clamp meter
- Test leads
- Soft case
- Users manual
Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO
-

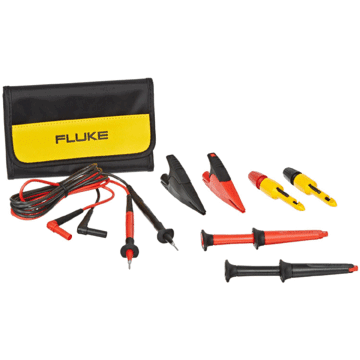

Fluke TLK281Automotive Test Lead KitOrder #: TLK281
Mfg #: 2150715
Availability: Ships in 3-4 weeksSpecial Price $176.29 Regular Price $204.99 -
Special Price $186.89 Regular Price $209.99
-
Special Price $186.89 Regular Price $209.99
-
Fluke TLK-220US SureGrip Accessory Set w/Meter Carrying Case
Order #: TLK-220
Mfg #: 2097010
Availability:In stockSpecial Price $182.44 Regular Price $204.99
| Specifications | ||
| AC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) | |
| 2.5% ± 5 digits (65 Hz to 400 Hz) | ||
| DC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 30 Ω | |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF
|
|
| Frequency | 5.0 Hz to 500.0 Hz | |
| AC response | True-RMS | |
| Backlight | Yes | |
| Data hold | Yes | |
| Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | Yes | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 283 g | |
| Category rating | CAT III 600 V | |
| CAT IV 300 V | ||
| Warranty | Two-year | |
