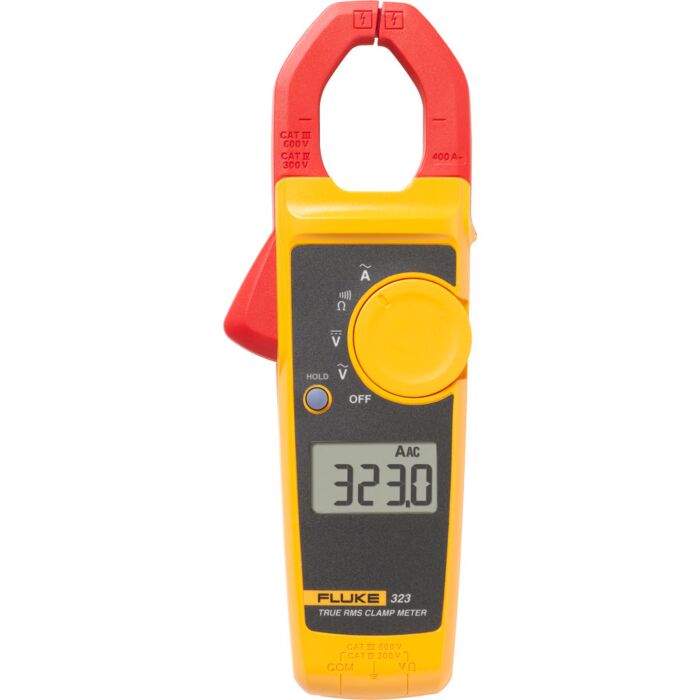

Fluke 323 400A AC True-rms Clamp Meter

Order # 323 | Mfg # 5065521
Save 20%
$207.99
$166.39
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Overview

True RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.

Product Highlights

  • 400 A AC current measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Resistance measurement to up to 40 kO with continuity detection
  • Slim, ergonomic design
  • CAT IV 300 V/CAT III 600 V safety rating
  • Hold button
  • Two-year warranty
  • Soft carrying case

Each Unit Includes

  • Clamp meter
  • Test leads
  • Soft case
  • Users manual

Technical Resources

Specifications

Specifications
AC current Range 400.0 A
Accuracy 2% ± 5 digits (45 Hz to 65 Hz)
2.5% ± 5 digits (65 Hz to 400 Hz)
DC current Range -
Accuracy -
AC voltage Range 600.0 V
Accuracy 1.5% ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0% ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω
Accuracy 1.0% ± 5 digits
Continuity ≤ 70 Ω
Capacitance -
Frequency -
AC response True-RMS
Backlight -
Data hold Yes
Contact temperature -
Min/Max -
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 265 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year
