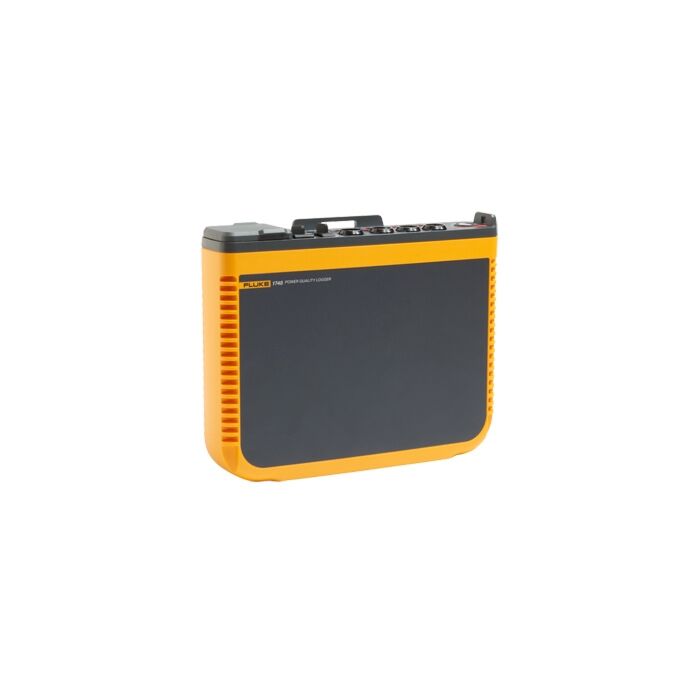

Fluke 1742/30/EUS Power Quality Logger with 24" (60CM) 3000A IFLEX Current Probe
Power Quality Logger 24IN/60CM 3,000A IFLEX

Order #: 1742-30-EUS

Mfg #: 4920651

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,137.99

Fluke 1742/30/EUS Power Quality Logger with 24" (60CM) 3000A IFLEX Current Probe

Power Quality Logger 24IN/60CM 3,000A IFLEX

Order #: 1742-30-EUS

Mfg #: 4920651

$6,137.99
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Measure the most important power quality and power parameters
  • 1748 logs over 500 different parameters for each averaging period
  • One-click reporting: create detailed reports according the most common power quality standards in seconds
  • Easy to use: Auto-configuration check ensures every measurement campaign is right, the first time. Power the instrument from the measured line to simplify the connection process
  • Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
    Current probe accuracy
    Specifications
    Accuracy
    Parameter Range Maximum Resolution Intrinsic Accuracy at Reference Conditions (% of Reading +% of Range)
    Voltage 1000 V 0.1 V ±0.1 % of nominal voltage 1, 2
    Current: Direct input i17xx-flex 1500IP 24 1500 A 150 A 0.01 A (min. 1.5A)3 ±(1% + 0.02%)
    1500 A 0.1 A
    i17xx-flex 3000IP 24 3000 A 300 A 0.01 A (min. 3.0 A)3 ±(1% + 0.03%)
    3000 A 0.1 A
    i17xx-flex 6000IP 36 6000 A 600 A 0.01 A (min. 6.0 A)3 ±(1.5% + 0.03%)
    6000 A 0.1 A
    i40s-EL clamp 4 A 1 mA ±(0.7% + 0.02%)
    40 A 10 mA
    Frequency 42.5 Hz to 69 Hz 0.01 Hz ±(0.1%)2
    Auxiliary input ±10 V dc 0.1 mV ±(0.2% + 0.02%)
    Voltage min/max 1000 V 0.1 V ±0.2 % of nominal input voltage1
    Current min/max Defined by accessory Defined by accessory ±(5% + 0.2%)
    THD on voltage 1000% 0.10% ± 2.5%
    THD on current 1000% 0.10% ± 2.5%
    Voltage harmonics 2nd to 50th 1000 V 0.1 V ≥ 1 V: ±5% of reading
    < 1 V: ±0.05V
    Current harmonics 2nd to 50th Defined by accessory Defined by accessory ≥ 3% of current range: ±5% of reading
    < 3% of current range: ±0.15% of range
    Flicker PLT, PST 0 to 20 0.01 5%
    Parameter Influence quantity iFlex1500IP-24 iFlex3000IP-24 iFlex6000IP-36 i40S-EL
    150 A / 1500 A 300 A / 3000 A 600 A / 6000 A 4 A / 40 A
    Active Power P
    PF ≥ 0.99 1.2% + 0.005% 1.2% + 0.0075% 1.7% + 0.0075% 1.2% + 0.005%
    Active Energy Ea
    Apparent power S 0 ≤ PF ≤ 1 1.2% + 0.005% 1.2% + 0.0075% 1.7% + 0.0075% 1.2% + 0.005%
    Apparent Energy Eap
    Reactive power Q 0 ≤ PF ≤ 1 2.5% of measured apparent power
    Reactive Energy Er
    Power Factor PF - ±0.025
    Displacement Power
    Factor DPF/cosΦ
    Additional uncertainty in% of range VP-N>250 V 0.015% 0.023% 0.023% 0.015%
    1 In the range of 100 V … 500 V; also known as Udin
    2 0 °C … 45 °C: Intrinsic accuracy x 2, outside of 0 °C … 45 °C: Intrinsic accuracy x 3
    3 Consult operators manual for details

    Reference conditions:
    Environmental: 23 °C ± 5 °C, instrument operating for at least 30 minutes, no external electrical/magnetic field, RH <65 %
    Input conditions: Cosφ/PF=1, Sinusoidal signal f=50 Hz/60 Hz, power supply 120 V/230 V ±10 %.
    Current and power specifications: Input voltage 1 ph: 120 V/230 V or 3 ph wye/delta: 230 V/400 V
    Input current: I > 10 % of I range
    Primary conductor of clamps or Rogowski coil in center position
    Temperature coefficient: Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C



    Electrical Specifications
    Power Supply
    Voltage range 100 V to 500 V using safety plug input when powering from the measurement circuit
    100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
    Power consumption Maximum 50 VA (max. 15 VA when powered using MA-C8 adapter)
    Efficiency ≥ 68.2% (in accordance with energy efficiency regulations)
    Maximum no-load consumption < 0.3 W only when powered using IEC 60320 input
    Mains power frequency 50/60 Hz ±15%
    Battery Li-ion 3.7 V, 9.25 Wh, customer-replaceable
    On-battery runtime Typically 4 hours
    Charging time < 6 hours
    Data Acquisition
    Resolution 16-bit synchronous sampling
    Sampling frequency 10.24 kHz at 50/60 Hz, synchronized to mains frequency
    Input signal frequency 50/60 Hz (42.5 to 69 Hz)
    Circuit types 1-Φ, 1-Φ IT, split phase, 3-Φ delta, 3-Φ wye, 3-Φ wye IT, 3-Φ wye balanced, 3-Φ Aron/Blondel (2-element delta), 3-Φ delta open leg, currents only (load studies)
    Data storage Internal flash memory (not user replaceable)
    Memory size Typical 20 logging sessions of 4 weeks with 1-minute intervals and 500 events
    Basic Interval
    Measured parameters Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy
    Averaging interval User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min
    Averaging time min/max values Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to IEC61000-4-30 Aux, Power: 200ms)
    Demand Interval (Energy Meter Mode)
    Measured parameters Energy (Wh, varh, VAh), PF, maximum demand, cost of energy
    Interval User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off
    Power Quality Measurements
    Measured parameter Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD A, TDD, voltage interharmonics, TID V, current interharmonics, TID A, Flicker, Mains Signaling, under/over deviation
    Averaging interval 10 min for all parameters
    2 hrs (long term Flicker PLT)
    150/180 cycles (3 s) for harmonics (requires software license IEEE519/REPORT)
    Individual harmonics 2nd to 50th harmonic
    Grouping according to IEC 61000-4-7 user configurable depending on application: Sub-grouped (harmonics + interharmonics), grouped or harmonic bins only
    Interharmonics 1st to the 50th interharmonic
    Total harmonic distortion Calculated on 50 voltage harmonics
    Events Voltage: dips, swells, interruptions, current: inrush current
    1748: mains signaling, transients (low frequency)
    Triggered recordings RMS profile: Full cycle RMS updated every half cycle of voltage and current up to 11 s (URMS1/2 according to IEC 61000-4-30)
    Waveform of voltage and current up to 200 ms, 10/12 cycles
    Mains signaling: 10/12 cycle RMS recording of the configured frequencies up to 120s
    Inrush RMS profile based on 1/2 cycle RMS steady state triggering
    Flicker In accordance with IEC 61000-4-15 and IEEE 1453
    Mains signaling Two user defined frequencies up to 3 kHz
    PQ Health Summarizes power quality measurements in one table. Detailed data available for each parameter
    EN 50160 Compliance with standard
    Programmable PQ limits Enables user defined limits for local standards compliance
    Standards Compliance
    Harmonics IEC 61000-4-7: Class 1
    IEEE 519 (short time and very short time harmonics)
    Power quality IEC 61000-4-30 Class A, IEC 62586-1, IEC 62586-2 (PQI-A-PI device)
    Power IEEE 1459
    Power quality compliance EN 50160
    Safety General: IEC 61010-1: Pollution Degree 2
    Measurement: IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V
    Power Supply: Overvoltage Category IV, Pollution Degree 2
    Li-ion Battery: IEC 62133
    Interfaces
    USB-A File transfer via USB flash drive, firmware updates, max. supply current: 120 mA
    WiFi File transfer and remote control via direct connection or WiFi infrastructure
    Bluetooth Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires supported USB to BLE or WiFi/BLE adapter, check for availability)
    USB-mini Data download device to PC
    Voltage Inputs
    Number of inputs 4 (3 phases referenced to neutral)
    Maximum input voltage 1000 Vrms, CF 1.7
    Input impedance 10 MΩ
    Bandwidth 42.5 Hz to 3.5 kHz
    Scaling 1:1 and variable
    Measurement category 1000 V CAT III/600 V CAT IV
    Current Inputs
    Number of inputs 4 (3 phases and neutral), mode selected automatically for attached sensor
    Input voltage Clamp input: 500 mVrms/50 mVrms; CF 2.8
    Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4 all at nominal probe range
    Range 1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 IP 24
    3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 IP 24
    6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 IP 36
    40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL
    Bandwidth 42.5 Hz - 3.5 kHz
    Scaling 1:1 and variable
    Auxiliary Inputs
    Number of inputs 2 (Analog with auxiliary adapter, or up to 2 BLE devices simultaneously)
    Input range 0 to ± 10 V dc, or 0 to ± 1000 V dc (with optional adapter), 1 reading/s
    Scale factor Format: mx + b (gain and offset) user configurable
    Displayed units User configurable (7 characters, for example, °C, psi, or m/s)
    Wireless Bluetooth connection (check for availability)
    Number of inputs 2
    Supported modules Fluke Connect® 3000 series
    Acquisition 1 reading/s
    Environmental Specifications
    Operating temperature -25 °C to +50 °C (-13 °F to 122 °F)1
    Storage temperature Without battery: -25 °C to +60 °C (-13 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F)
    Operating humidity IEC 60721-3-3: 3K6:
    -25 °C to +30 °C (-13 °F to +86 °F): ≤ 100 %
    40 °C (104 °F): 55 %
    50 °C (122 °F): 35 %
    Operating altitude 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
    Storage altitude 12,000 m
    Enclosure IEC 60529: IP50
    IEC 60529: IP65 with IP65 rated voltage connector
    Vibration IEC 60721-3-3 / 3M2
    Electromagnetic compatibility (EMC) EN 61326-1: Industrial CISPR 11: Group 1, Class A
    IEC 61000-6-5 Power station environment
    Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment)
    USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103
    General Specifications
    Warranty Two-years (battery not included)
    Accessories: one-year
    Calibration cycle: two-years
    Dimensions 23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
    Weight Instrument: 1 kg (2.2 lb)
    Tamper protection Accept securing cables (max. Φ 6mm)
    1Warm up the product to -10 °C (+14 °F) before you power the unit on
    i17XX-FLEX1.5KIP Flexible Current Probe Specifications
    Measuring range 1 to 150 A ac/10 to 1500 A ac
    Probe cable length 610 mm (24 in)
    Probe cable diameter 7.5 mm (0.3 in)
    Weight 170 g (0.38 lb)
    Minimum bending radius 38 mm (1.5 in)
    Nondestructive current 100 kA (50/60 Hz)
    Temperature coefficient over
    operating temperature range
    0.05 % of reading/°C (0.028 % of reading/°F)
    Working voltage 1000 V CAT III, 600 V CAT IV
    Output cable length 2.0 m (6.5 ft)
    Probe cable material TPR
    Weight 115 g
    Probe cable material TPR
    Coupling material POM + ABS/PC
    Output cable TPR/PVC
    Operating temperature -20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F)
    Temperature, non-operating -40 °C to +80 °C (-40 °F to 176 °F)
    Relative humidity, operating 15% to 85% non-condensing
    IP rating IEC 60529: IP65
    Warranty One-year
