FLIR VS70 VideoScope (main unit unit, without cameras)

Order # VS70 | Mfg # VS70
$2,229.00

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The FLIR VS70 is a rugged, waterproof and shock-resistant videoscope that features intuitive handset controls that enable users to maneuver the narrow camera probe into tight spaces to deliver vivid and sharp video and images to a large 5.7” color LCD display. Advanced inspection solutions, expansion cameras, and add-on accessories enable users to expand their FLIR VS70 to address many different inspection needs.

  • Waterproof (IP67 rated) Rubber-reinforced display unit is capable of withstanding two-meter drops (6.6’)
  • Extended battery life accommodates a full day of inspections without recharging
  • Waterproof IP67 cameras with tungsten-reinforced articulation Customizable
  • Multiple articulation options including two-way, two-way wireless and four-way wireless controls
  • Handset controls allow users to select 180-degree or 90-degree camera angles with dual channel camera
  • Base system is also available with a wide range of handsets, camera probes, and wireless options
  • Create reports quickly and easily
  • Record video and images that transfer to a PC via SD card or USB port
  • Voice annotate video recordings to add critical details (with included headset)
  • Grab still images from captured video directly on the base unit

Each Unit Includes

  • VS70
  • Hard Case
  • Manual
  • Power Adapter
  • Headset
  • Car Charger
  • Shoulder Strap
  • Camera Cleaning Kit

Technical Resources

Specifications

Technical Summary
Display Resolution 640 × 480 px
Display Size 5.7 in (135 mm)
Battery Life 6 to 8 hrs (integrated)
Frame Rate 30 fps (NTSC & PAL)
Video / Image Transfer SD Card or USB
Camera Diameter Range 3.9 mm to 28 mm
Camera Focal Length Options Long View or Short View Macro
Camera Length Range 0.3 m to 30 m
Certifications CE, FCC
Warranty 2 Year

FLIR VS70 VideoScope (main unit unit, without cameras) Accessories

checkbox-empty
Select

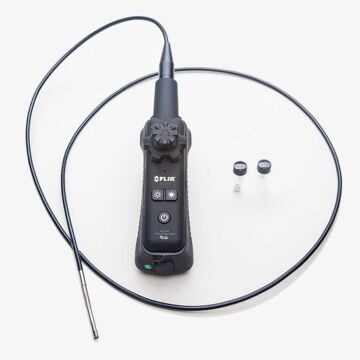

FLIR VSA2-2M-W Wireless 2-way 6mm Art Cam.w/1m Probe,Short Focus
