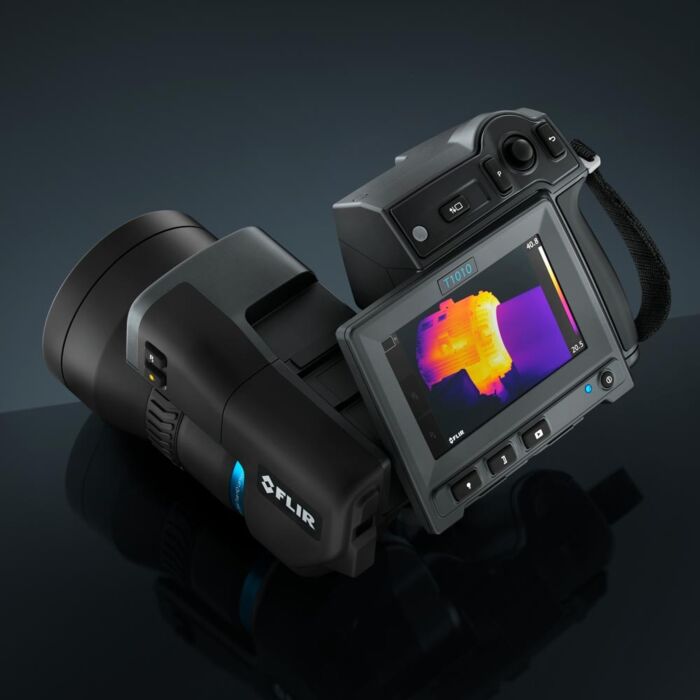

FLIR T1010-28
IR Camera 1024x768 Resolution 30Hz w/28deg Lens & FLIR Tools+

Order #: T1010-28

Mfg #: 72502-0502

Questions about availability or need help? Contact Us:

(800) 633-0561
$41,419.00

FLIR T1010-28

IR Camera 1024x768 Resolution 30Hz w/28deg Lens & FLIR Tools+

Order #: T1010-28

Mfg #: 72502-0502

$41,419.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The FLIR T1010 and T1020 offer remarkable temperature measurement range, up to 3.1 MP resolution, and a modern, intuitive graphical user interface (GUI) that will streamline your workday. Features such as MSX and 1-Touch Level/ Span enhance image quality and contrast, so you can interpret images on-screen and make crucial decisions in the field. When paired with FLIR OSX Precision HDIR optics, these true HD cameras measure temperature with the highest accuracy and deliver stunning image quality. For the sharpest images, the truest temperatures, and the most flexibility, T1K cameras are the tool of choice for the thermography expert.

  • HD Resolution: See more detail and find hidden problems with the 1024 x 768 true HD resolution.
  • Wide Temperature Range: Accurately assess high-temperature targets up to 650°C (1202°F).
  • Expert Features: With an agile GUI that responds like a smartphone and live image enhancements such as 1-Touch Level/Span, the T1010 has the expert features you need.
  • Outstanding Image Clarity: FLIR Vision Processing combines HD resolution, MSX, and UltraMax image enhancement with FLIR's proprietary adaptive filtering algorithms to produce brilliant thermal images with up to 3.1 million pixels.
  • Ergonomic and Easy to Use

Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. FLIRT198126 2-Bay Battery Charger
    FLIR T198126
    2-Bay Battery Charger

    Order #: T198126

    Mfg #: T198126

    Availability: Ships in 3-4 weeks
    $253.99
  2. T910814
    FLIR T910814
    Power Supply w/Multi Plugs

    Order #: T910814

    Mfg #: T910814

    Availability: Ships in 3-4 weeks
    $141.99
  3. FLIR T911093
    FLIR T911093
    Tool Belt for EX Series Thermal Imagers

    Order #: T911093

    Mfg #: T911093

    Availability: Ships in 3-4 weeks
    $56.99
  4. FLIR T198509
    FLIR T198509
    Cigarette Lighter Adaptor Kit

    Order #: T198509

    Mfg #: T198509

    Availability: Ships in 3-4 weeks
    $74.99
  5. FLIR T199064
    FLIR T199064
    28deg Lens (F=36mm) with case

    Order #: T199064

    Mfg #: T199064

    Availability: Ships in 3-4 weeks
    $6,099.00
  6. FLIRT199066 45deg Lens (f=21.2mm) with case
    FLIR T199066
    45deg Lens (f=21.2mm) with case

    Order #: T199066

    Mfg #: T199066

    Availability: Ships in 3-4 weeks
    $6,099.00
  7. FLIRT199077 12 degree Lens,(F=83.4mm) with case
    FLIR T199077
    12 degree Lens,(F=83.4mm) with case

    Order #: T199077

    Mfg #: T199077

    Availability: Ships in 3-4 weeks
    $6,659.00
  8. FLIR T910891ACC
    FLIR T910891ACC
    HDMI to HDMI Cable 1.5

    Order #: T910891ACC

    Mfg #: T910891ACC

    Availability: Ships in 3-4 weeks
    $50.99
  9. FLIR T910930ACC
    FLIR T910930ACC
    HDMI to DVI Cable 1.5m

    Order #: T910930ACC

    Mfg #: T910930ACC

    Availability: Ships in 3-4 weeks
    $53.99
  10. FLIR T199609
    FLIR T199609
    Macro mode 71/103 um for 24deg For the T500 Thermal Imagers

    Order #: T199609

    Mfg #: T199609

    Availability: Ships in 3-4 weeks
    $1,359.00
  11. FLIR T300244 Thermal Studio Route Creator 12 Month Subscription Plug In
    FLIR T300244
    Thermal Studio Route Creator 12 Month Subscription Plug In

    Order #: T300244

    Mfg #: T300244

    Availability: Ships in 3-4 weeks
    $215.99
  12. FLIR T300243 Thermal Studio Pro 12-Month Subscription
    FLIR T300243
    Thermal Studio Pro 12-Month Subscription

    Order #: T300243

    Mfg #: T300243

    Availability:
    In stock
    $431.99
  13. FLIR T199745 7 Deg FOV Lens (f=142.5mm) with Case
    FLIR T199745
    7 Deg FOV Lens (f=142.5mm) with Case

    Order #: T199745

    Mfg #: T199745

    Availability: Ships in 3-4 weeks
    $33,259.00
  14. FLIR T850105 Inspection Route Camera Software Option One Time Charge
    FLIR T850105
    Inspection Route Camera Software Option One Time Charge

    Order #: T850105

    Mfg #: T850105

    Availability: Ships in 3-4 weeks
    $2,209.00
  15. FLIR T198533 USB Cable for Cx Series
    FLIR T198533
    USB Cable for Cx Series

    Order #: T198533

    Mfg #: T198533

    Availability: Ships in 3-4 weeks
    $56.99
Specifications T1010 T1020
IR Resolution 1024 × 768 (786,432 pixels) 1024 × 768 (786,432 pixels)
UltraMax® 3.14 Mpixels 3.14 Mpixels
Thermal Sensitivity/NETD <25 mK @ 30°C (86°F) <20 mK @ 30°C (86°F)
Field of View (FOV) 45° × 34° (21 mm lens), 28° × 21° (36 mm lens), 12° × 9° (83 mm lens) 45° × 34° (21 mm lens), 28° × 21° (36 mm lens), 12° × 9° (83 mm lens)
F-Number f/1.2 f/1.2
Lens Identification Automatic Automatic
Image Frequency 30 Hz 30 Hz
Focus One-shot, manual One-shot, manual
Digital Zoom 1-8x continuous 1-8x continuous
Detector Data
Detector Type and Pitch

Spectral Range

Uncooled microbolometer, 17 µm

7.5 – 14.0 µm

Uncooled microbolometer, 17 µm

7.5 – 14.0 µm

Image Presentation and Modes
Display 4.3”, 800 × 480 pixel capacitive touch screen with auto-orientation 4.3”, 800 × 480 pixel capacitive touch screen with auto-orientation
Viewfinder Built-in, 800 × 480 pixels
Digital Camera 5 MP with built-in LED 5 MP with built-in LED
Color Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava, Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava,
Image Modes Infrared, visual, MSX Infrared, visual, MSX, Picture-in-Picture
Picture-in-Picture Resizable and movable
Time-lapse (Infrared) 15 sec to 24 hrs
Measurement and Analysis
Object Temperature Range -40°C to 150°C (-40°F to 302°F), 0°C to 650°C (32°F to 1200°F) -40°C to 150°C (-40°F to 302°F), 0°C to 650°C (32°F to 1200°F), 300°C to 2000°C (572°F to 3632°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading at 25°C (77°F) ±1°C (±1.8°F) or ±1% at 25°C (77°F) for temperatures from 5°C to 150°C (41°F to 302°F)
Alarms Above, below, interval, moisture, insulation
Measurement function alarm Audible/visible above/below alarms on any selected measurement function
Compass, GPS Yes; automatic GPS image tagging
METERLiNK® Yes; several readings
Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Spotmeter 1 10
Area 1 box with max/min/avg 5 + 5 areas (boxes and circles) with max/min/avg
Laser Pointer Dedicated button Dedicated button
Data Storage and Streaming
Storage Media Removable SD card Removable SD card
Image File Format Standard JPEG with measurement data included Standard JPEG with measurement data included
Radiometric IR Video Recording Real-time radiometric recording (.csq)
Non-Radiometric IR or Visual Video H.264 to memory card H.264 to memory card
Radiometric IR Video Streaming Yes, over USB Yes, over USB
Non-Radiometric IR Video Streaming H.264 over USB H.264 over Wi-Fi or USB
Video Out HDMI 640 × 480, HDMI 1280 × 720, DVI 640 × 480, DVI 800 × 600
Additional Data
Battery Type Rechargeable Li-ion battery Rechargeable Li-ion battery
Battery Operating Time Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use
Operating Temperature Range -15°C to 50°C (5°F to 122°F) -15°C to 50°C (5°F to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Shock/Vibration/Encapsulation; Safety 25 g / IEC 60068-2-29, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/ CSA/PSE 60950-1 25 g / IEC 60068-2-29, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1
Tripot Mounting UNC ¼”-20 UNC ¼”-20
Weight/Dimensions w/o Lens 2.1 kg (4.6 lbs), 16.7 × 20.5 × 18.8 cm (6.6 × 8.0 × 7.4 in) 2.1 kg (4.6 lbs), 16.7 × 20.5 × 18.8 cm (6.6 × 8.0 × 7.4 in)
Box Contents
Infrared camera with lens, battery (2 ea) battery charger, neck strap, hard transport case, Bluetooth headset*, lens cap, power supplies, SD card, cables (Std A to Micro-B USB, HDMI to HDMI), FLIR Tools+, printed documentation
