Overview
Product Highlights

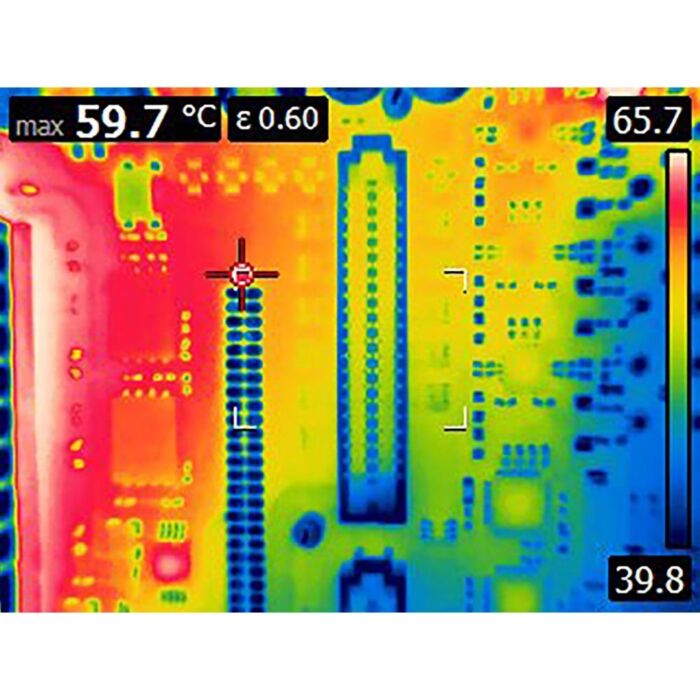

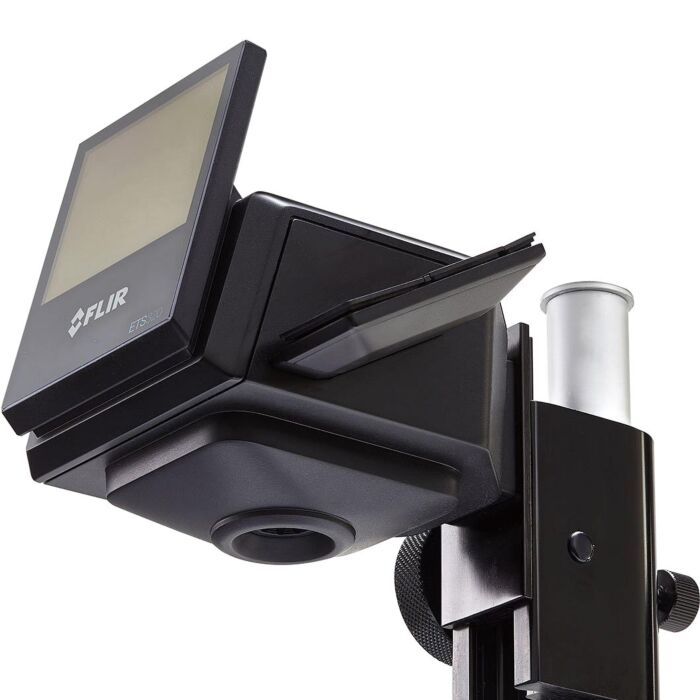

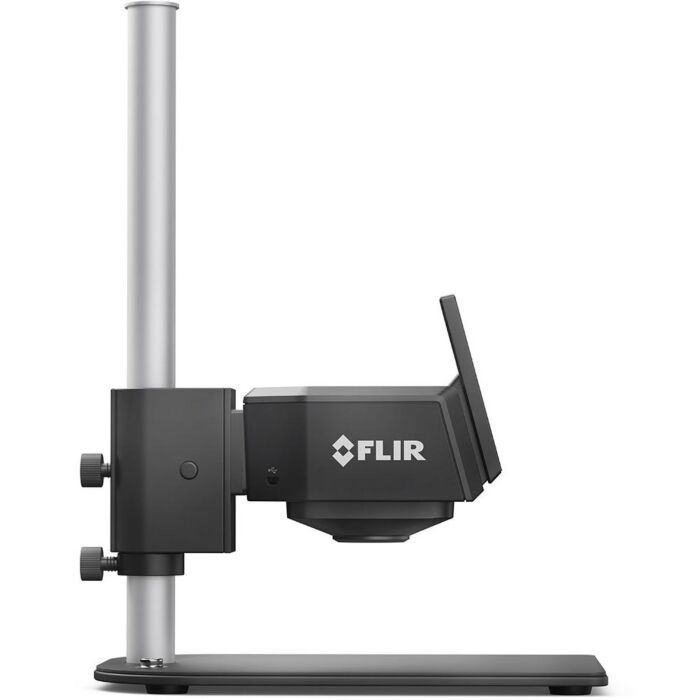

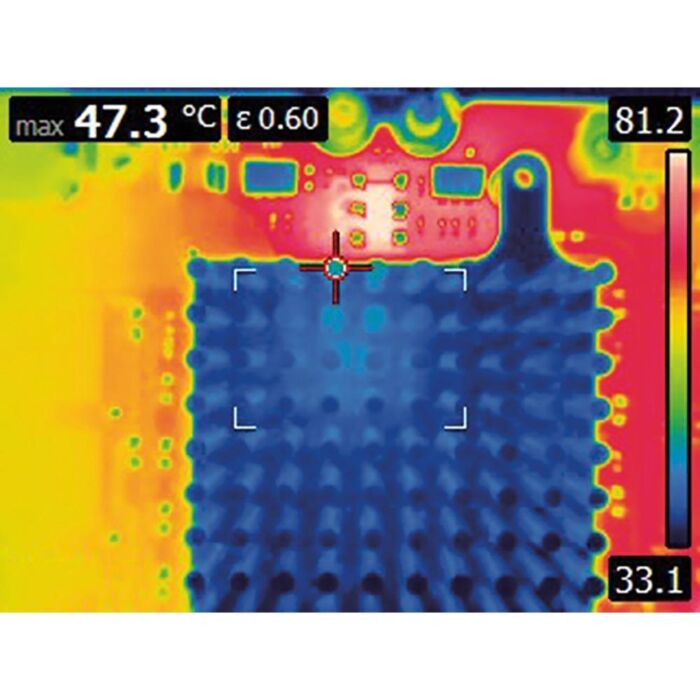

The Flir ETS320 Thermal Camera was designed for quick temperature checks on PCB boards and electronic devices in the lab. Reduce your test times and improve product design. The Flir ETS320 takes the guesswork out of thermal testing across more than 76,000 points at once with the sensitive, accurate 320 x 240 detector. The FLIR ETS320 is the first thermal camera specifically designed for hands-free laboratory testing.
Engineered specifically for lab electronics testing, the ETS320 is battery powered and hands free, and connects via USB to your PC for immediate analysis and sharing of thermal data.
Non-radiometric IR video streaming: Uncompressed colorized video using USB
Radiometric IR video streaming: Full dynamic to PC (FLIR Tools/Tools+) using USB
Spectral Range: 7.5 - 13.0 µm
Spot Size Min. Focus: 170 µm
Accuracy: ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)
Area: Box with max/min
Camera size (L x W x H): 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in)
Camera weight incl battery: 0.575 kg (1.27 lbs)
Emissivity Correction: Variable from 0.1 to 1.0
Reflected apparent temperature correction: Automatic, based on input of reflected temperature
Spot Meter: Center spot
Image File Format: Standard radiometric JPEG, 14-bit measurement data included

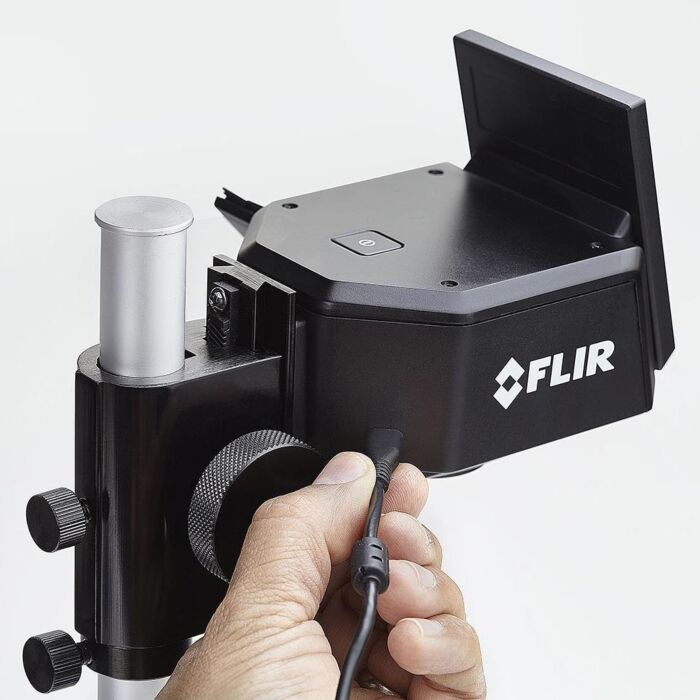

Interface: USB Micro: data transfer to and from PC and Mac devices
Applications
Laboratory work
Product development/testing
Research & development
Thermal testing
Improve Product Design
The FLIR ETS320 promotes design improvements and shortens product development time by detecting design flaws that materialize as heat.
320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement
True 45° field of view for broad initial scans to identify potential problems
Measurement accuracy promotes quality assurance and factory acceptance of PCBs

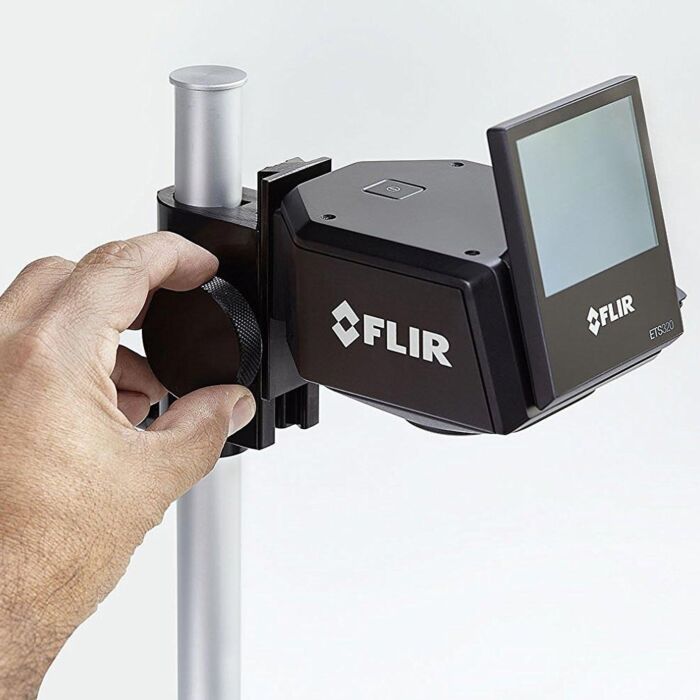

Designed for Laboratory Work
The ETS320 is designed for hands-free laboratory testing, with simplified features that allow users to focus on their work instead of on the camera controls.
